Straightline 36"x70' Stackable Slide Transfer Conveyor Unit #1345

SN: #SN: 36700323799, 800, 801

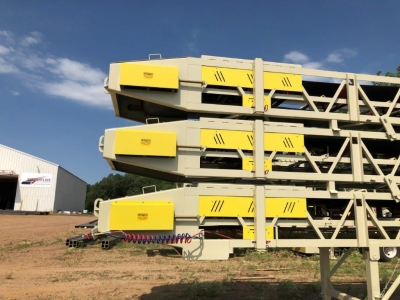

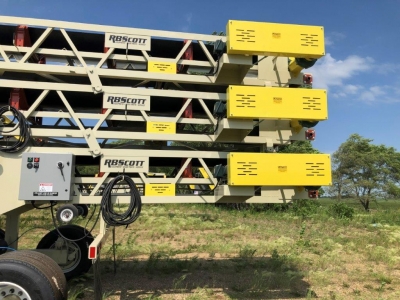

Equipment As Follows:

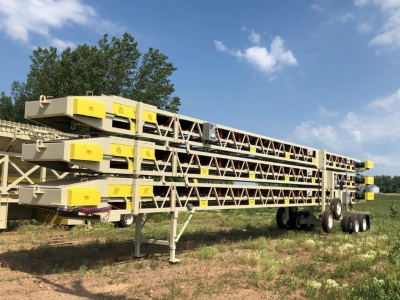

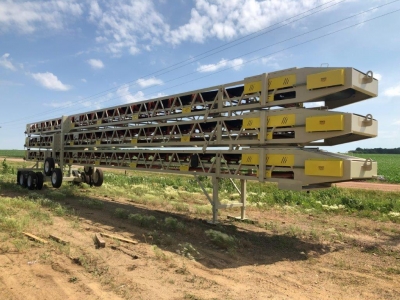

Two are designed to ride on the top of third conveyor for over road transport.

Frame on all three conveyors: 4 x 4 x 5/16” Chords with 2 x 2 x 1/4” Lattice members – with 3 x 3 x 3/16” angle recessed in frame for troughing

idlers

Truss: 30” Deep
Adjustable height under carriage – manual pin adjustment
Note: Top conveyor to raise to 16ft

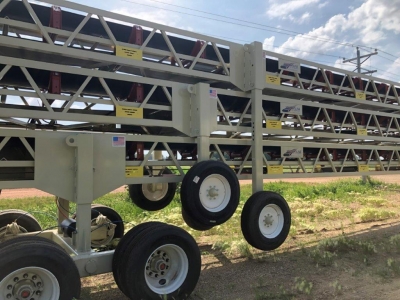

Axle: Single – 8 bolt hubs - single 11.00-22.5 tires (on top & middle conveyors)
Axle: Tandem with duals – 10 bolt hubs – dual 11.00-22.5R tires (on transport conveyor)
Air brakes and light package on transport conveyor
Head pulley: 16” x 38” C.F. – 3/8” H.B. lagging – 3 7/16” shaft
Tail pulley: 14” x 38” Wing style – 2-15/16” shaft
Troughing idlers: CEMA C – 5” rollers on 4’ centers
Return idlers: CEMA C – 5” rollers on 10’ centers
Return idler nip guards.
Gear Reducer: Master PT size 5 with backstop
Motor: 20HP 1800 230/460/3ph Toshiba
Electrical switch gear / Interlocking / Cord
Electrical cord hooks on one side
Bearings: Dodge 2 bolt pillow block 3 7/16” on head pulleys and 2 15/16” on tail pulleys
Take-ups: Dodge wide slot
Conveyor belt: 36”- 3 ply 3/1 cover
350FPM / 750TPH
Belt scraper: By Superior
5’ receiving hopper with extra idlers at load point
Hitch: Fifth wheel and tow eye (on transport conveyor)
Guarding: Tail pulley and V-belts
Sandblasted: Frame (1) Coat urethane primer (1) Coat finished urethane

On-Site Start-up, Training and Warranty Commissioning
