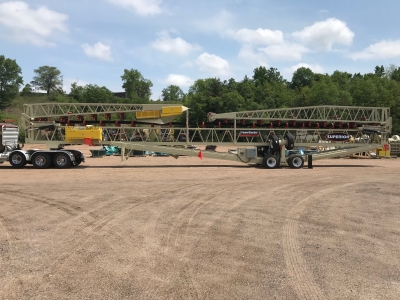

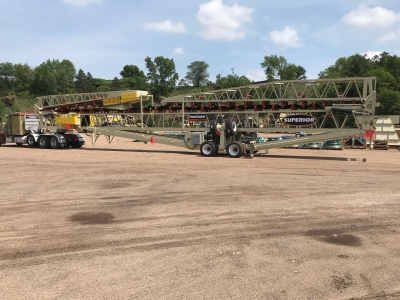

Superior 36" x 150' PowerStacker Conveyor, Unit #994

SN: #SN 1486912

On Lease

Conveyor Frame

  • Main frame-42" deep truss
  • Chord angles-4" x 4" x 1/4"
  • Lattice members-2" x 2" x 3/16"
  • Extra chord angle-Full length, from tail end to head end undercarriage pinning point



Drive specifications

  • Drive-Class II single wrap
  • Gear reducer-Dodge shaft mount
  • Backstop-installed in reducer
  • Motor-60 HP 1800 RPM TEFC
  • V-belt drive-with drive guard
  • Capacity-850 STPH of 100 PCF material, 25 degree surcharge (90% fines, 10% spherical lumps 4” minus)
  • Belt speed-400 fpm



Superior pulleys, crown faced

  • Drive pulley-24” diameter, 3/8” herringbone lagged drum
  • Tail pulley-16” diameter, MD Chevron® pulley
  • Snub pulley-20” diameter, Chevron® pulley
  • Head pulley-18” diameter, plain steel drum
  • Shafts-Turned and polished
  • Bearings-Dodge
  • Take ups-Screw type



Portability

  • Conveyor splice-hydraulic top folding head and tail
  • Undercarriage-Hydraulic raise, with 10 hp electric pumping unit
  • Axle type-Superior's Patented FD40 Series Axle
  • Transport axle-Eight 255/70R-22.5 tires on walking beam
  • Radial axle-Four 385/65R-22.5 tires mounted on hydraulic outriggers.
  • Linkage-Not included
  • Radial travel-(4) 2 hp planetary drive (4-wd)
  • Fifth wheel-for road travel, bolt on design
  • Anchor pivot-maintains tail end during radial travel
  • Brakes-included with FD axle
  • Lights-brake and directional signals
  • Mud flaps-included with FD axle
  • Landing gear-fold down, hand-crank
  • Towing eye-Pintle type hitch



Conveyor Components

  • Belting -3-ply 3/16 x 1/16 330 PIW
  • Belt splice -Flexco mechanical steel fasteners
  • Belt retainer-retains belt when folding conveyor
  • Scraper-Superior Exterra® Primary Belt Scraper
  • Return cleaner-Superior V-Plow UHMW blade
  • Superior Idlers-CEMA C, 5” dia. rolls, sealed for life ball bearings
  • Load area-20° trough, 16" spacing
  • Trough-35° on 4' spacing
  • Returns-steel cans, on 10' spacing
  • Radial hopper-sloped, 5' long, bolt on design
  • Gathering trough -5' long with adjustable rubber flashing



Additional Specifications

  • Guarding-for drive and tail pulleys, v-belt drive and return idlers. Guards may not meet all local codes; customer is responsible to have guarding inspected.
  • Power Supply-480 v / 3 ph / 60 hz
  • Panel brackets-for Superior installed electrical panel enclosure
  • Cord holders-(1) set bent pipe type
  • Electrical-Included
  • Paint-1 coat primer, 1 coat finish enamel Superior Beige/Yellow guards
  • Idler Paint-powder coated Superior Orange
  • Patents-unit includes patents
  • Owner’s Manual-(1) copy in English included for operation and maintenance
