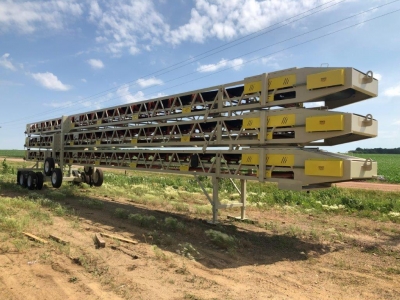

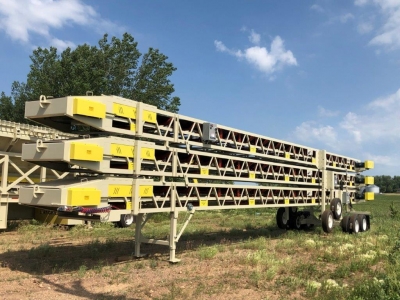

Used Straightline 36" x 70' Stackable Transfer Conveyor 3-Pac Unit #1126

#36700321702,703,704

Equipment As Follows:

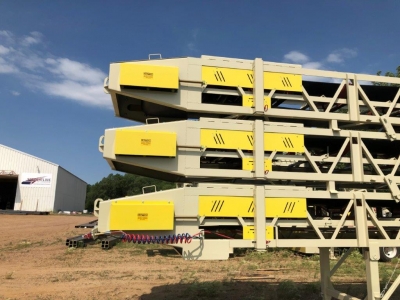

Two are designed to ride on the top of third conveyor for over road transport.

• Frame on all three conveyors: 4 x 4 x 5/16” Chords with 2 x 2 x 1/4” Lattice members – with 3 x 3 x 3/16” angle recessed in frame for troughing
• idlers
• Truss: 30” Deep
• Adjustable height under carriage – manual pin adjustment
• Note: Top conveyor to raise to 16ft

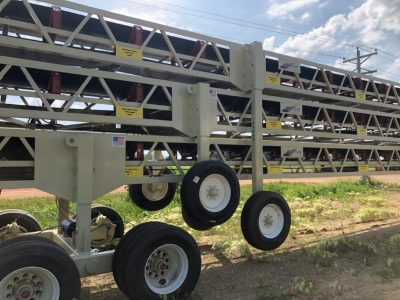

• Axle: Single – 8 bolt hubs - single 11.00-22.5 tires (on top & middle conveyors)
• Axle: Tandem with duals – 10 bolt hubs – dual 11.00-22.5R tires (on transport conveyor)
• Air brakes and light package on transport conveyor
• Head pulley: 16” x 38” C.F. – 3/8” H.B. lagging – 3 7/16” shaft
• Tail pulley: 14” x 38” Wing style – 2-15/16” shaft
• Troughing idlers: CEMA C – 5” rollers on 4’ centers
• Return idlers: CEMA C – 5” rollers on 10’ centers
• Return idler nip guards.
• Gear Reducer: Dodge size 5 with backstop
• Motor: 20HP 1800 230/460/3ph Toshiba

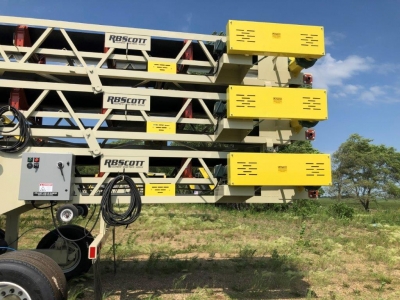

• Electrical switch gear / Interlocking / Cord
• Electrical cord hooks on one side
• Bearings: Dodge 2 bolt pillow block 3 7/16” on head pulleys and 2 15/16” on tail pulleys
• Take-ups: Dodge wide slot
• Conveyor belt: 36”- 3 ply 3/1 cover
• 350FPM / 800TPH
