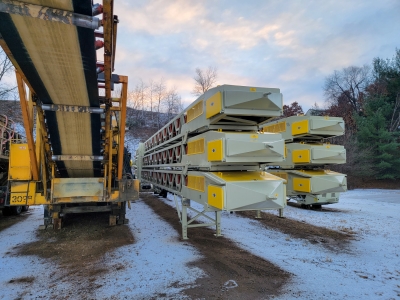

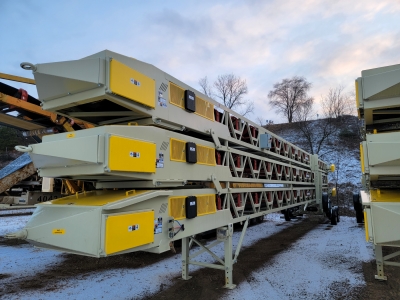

Used Superior 36" x 70' Slide-Pac System Unit #1154
#1948856,857,858
ON LEASE
Conveyor Frame - No top cross lattices
Trailer unit
Main frame - 30" deep truss
Chord angles - 4" x 4" x 5/16"
Lattice members - 2" x 2" x 3/16"
Middle and Top unit
Main frame - 30" deep truss
Chord angles - 4" x 4" x 1/4"
Lattice members - 2" x 2" x 3/16"
Roller Assembly - Single set on head end for easy loading and unloading
Drive specifications
Drives - Class I head end
Gear reducers - Dodge shaft mount
Backstops - Installed in reducer
Motors - 20 HP 1800 RPM TEFC
V-belt drive - With drive guard
Capacity - 750 STPH of 100 PCF material, 25 degree surcharge (90% fines, 10% spherical lumps 6” minus)
Belt speed - 350 fpm
Superior pulleys, crown faced
Drive pulleys - 16” diameter, 3/8” herringbone lagged drum
Tail pulleys - 14” diameter, CEMA Chevron® pulley
Shafts - Turned and polished
Bearings - Dodge
Take ups - Screw type
Portability
Conveyor splice - One piece truss frame
Towing eye - Pintle type hitch
Trailer unit
V type axle - 7'4" fixed discharge height walking beam axle, non-swiveling single 11R-22.5 wheels and tires
Support legs - Adjustable height folding legs
Fifth wheel - On trailer unit
Brakes - Complete air system
Lights - Brake and directional signals
Mud flaps - Included
Middle unit
Strut axle - 10'6" adjustable discharge height, non-swiveling single 11-22.5 Ag wheels and tires
Top unit
Strut axle - 12' 3" adjustable discharge height, non-swiveling single 11-22.5 Ag wheels and tires
Fold down legs - Fixed height, for top & middle units
Conveyor Components
Belting - 3 ply 3/16 x 1/16 330 PIW
Belt splice - Flexco mechanical steel fasteners
Belt scraper - Superior Exterra Primary
Superior Idlers - CEMA C, 5” dia. rolls, sealed for life ball bearings
Mounting - Recessed inside frame
Load area - 20° trough, 16" spacing
Trough - 35° on 4' spacing
Returns - Steel cans, on 12' spacing
Skirting extension - 5' long 10" high, hinged, with 1" round bar for material shelf
Gathering trough - 5' long with adjustable rubber flashing
Additional Specifications
Guarding - For drive and tail pulleys, v-belt drive and return idlers. Guards may not meet all local codes; customer is responsible to have guarding inspected.
Power Supply - 480 v / 3 ph / 60 hz
Electrical panel - Electrical Panel included for each unit (3) wired, with starter for each motor.
Paint - 1 coat primer, 1 coat finish enamel Superior Beige
Guard Paint - Safety yellow
Idler Paint - Powder coated Superior Orange
Owner’s Manual - (1) copy included for operation, maintenance, and parts
