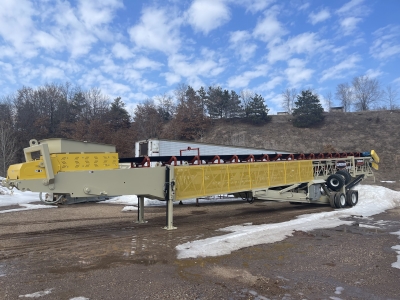

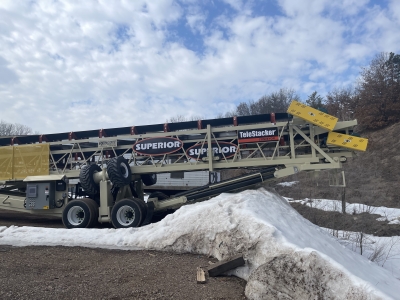

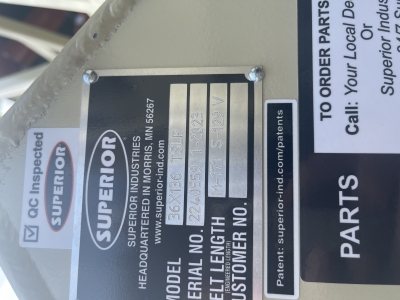

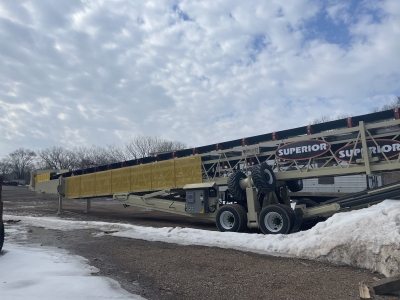

Superior 36x136 Low Profile Telestacker Conveyor Unit #1212


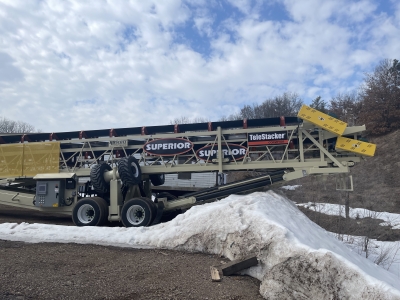

Conveyor frame

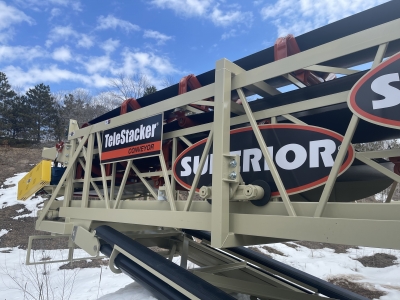

Truss design-Heavy-duty truss, designed for maximum strength / weight ratio

Main conveyor-80' long with 52" deep truss

Stinger conveyor-66' long with 36" deep truss

Extension-conveyor extends to 136' long with hydraulic cable winch

Safety stop-mechanically stops retraction in the event of cable failure


Drive specifications (Main / Stinger)

Drive-Class I head end

Gear reducers-Dodge shaft mount

Backstops-installed in reducers

Motors-40/(2) 20 HP TEFC

V-belt drive-with drive guard

Capacity-1000 STPH of 100 PCF material, 25-degree surcharge (90% fines, 10% spherical lumps 6” minus)

Belt speed-450/650 fpm

Superior pulleys

Drive pulleys-16” diameter, 3/8” herringbone lagged drum

Tail pulleys-14” diameter, CEMA Chevron® wing pulley

Shafts-Turned and polished


Take ups-Screw type



Undercarriage-Patented FB® Undercarriage, with hydraulic raise cylinders, 15 hp pumping unit, and covers

Axle type-FD 40 axle

Transport axle-(8) 11R-22.5 tires, tandem walking beam. 11’11” travel width.

Tag axle-not included

Axle Jacks-not applicable

Comp. Linkage-slip-joint, for raising and lowering of conveyor with wheels in radial position

Radial axle-(4) 385/65D-19.5 tires on hydraulic outriggers. 18’5” stacking width.

Radial travel-4-wd, 2 HP planetary drive on each wheel

  • 4% grade

Fifth wheel-included

Anchor pivot-counter-balanced swing down, secures tail end for radial travel

Brakes-complete air brake package

Lights-brake and directional signals

Mud flaps-installed behind transport wheels

Landing gear-one set, control valve, Honda power unit

Towing eye-fold down, for pit transport


Conveyor Components

Belting -3 ply, 3/16 x 1/16 330 PIW

Belt splice -factory vulcanized belt splice

Scrapers-Superior Exterra® Primary Belt Scraper, on main and stinger

Superior Idlers-CEMA C, 5” dia. rolls, sealed for life ball bearings

Idler Seal-Standard SpinGuard® Seal

Load area (main)-Superior Seal System, with 10" cartridges and steel rollers

Trough-35° on 4' spacing

Returns-steel cans, on 8' spacing

Self-aligning-Steel can troughing aligner on main / Superior Navigator® Trainer on stinger

Radial hopper-Rock box style

Gathering trough -6’ long with adjustable rubber flashing

Spray bars-not included



Control system-PilePro™ v12 automation - FD axle, power travel, conveyor raise, and stinger extension controlled by PLC parameters or with panel mounted switches, includes auto-level

PanelView™ 1000-not included

Slide-track-galvanized c-rail and steel wheels to deliver hydraulic hoses and electrical cords to stinger

Matl. flow switch-SonicScout™ ultrasonic sensor, stops power travel when belt is empty

Wireless remote-not included

Zero Speed Sensor-not included

Voltage-480 v / 3 ph / 60 hz

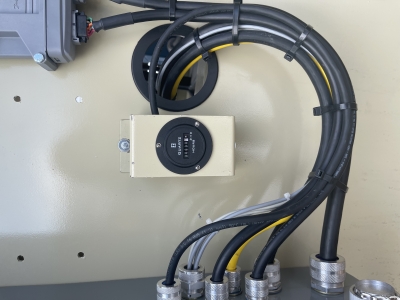

Electrical-enclosure with main disconnect, circuit breaker, and starters with on/off push buttons to control each electric motor


Additional Specifications

Startup-on-site training not included

Guarding-for drive and tail pulleys, v-belt drive and return idlers. Guards may not meet all local codes; customer is responsible to have guarding inspected.

Paint-1 coat primer, 1 coat finish enamel Superior Beige 12-00619

Guard Paint-Safety yellow

Idler Paint-powder coated Superior Orange

Patents-unit includes patents

Owner’s Manual-(1) copy in English included for operation and maintenance
