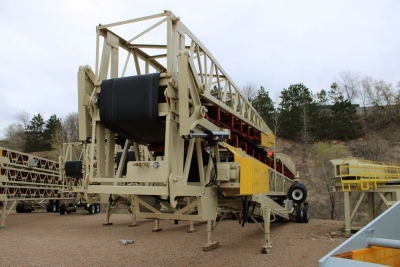

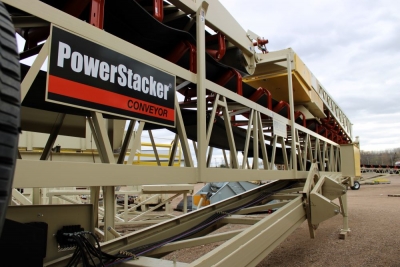

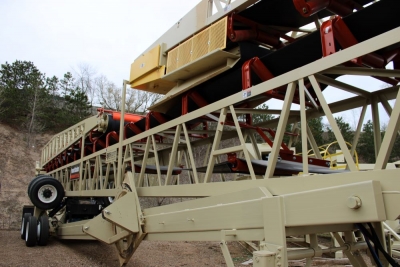

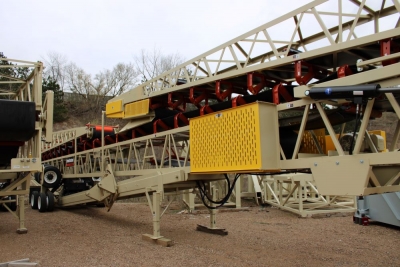

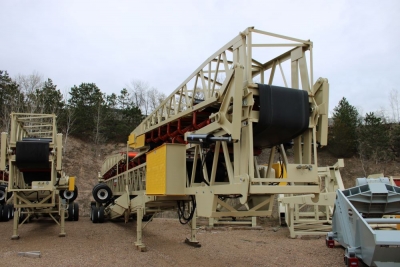

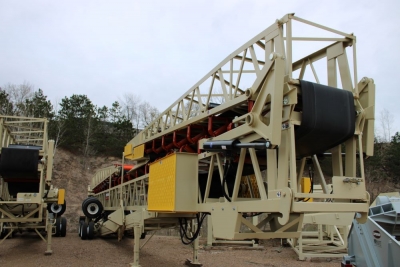

Used Superior 36x150 PowerStacker Conveyor Unit #1218

SN: #SN 2053807

Conveyor Frame

Main frame-42" deep truss

Chord angles-4" x 4" x 1/4"

  • Bottom Chord upsized between pinpoints to 6" x 4" x 1/2"

Lattice members-2" x 2" x 3/16"


Drive specifications

Drive-Class I tandem wrap

Gear reducer-Dodge shaft mount

Backstop-installed in reducer

Motor-60 HP 1800 RPM TEFC

V-belt drive-with drive guard

Capacity-850 STPH of 100 PCF material, 25-degree surcharge (90% fines, 10% spherical lumps 7” minus)

Belt speed-400 fpm

Superior pulleys, crown faced

Drive pulley-20” diameter, 3/8” herringbone lagged drum

Tail pulley-16” diameter, CEMA Chevron® pulley

Snub pulley-20” diameter, lagged wing pulley

Head pulley-18” diameter, plain steel drum

Shafts-Turned and polished


Take ups-Screw type



Conveyor splice-hydraulic top folding head and tail

Undercarriage-Hydraulic raise, with 10 hp electric pumping unit

Axle type-Superior's Patented FD40 Series Axle

Transport axle-Eight 255/70R-22.5 tires on walking beam

Radial axle-Four 385/65R-22.5 tires mounted on hydraulic outriggers.

Comp. Linkage-not included

Radial travel-(4) 2 hp planetary drive (4-wd)

Fifth wheel-for road travel, bolt on design

Anchor pivot-maintains tail end during radial travel

Brakes-included with FD axle

Lights-brake and directional signals

Mud flaps-included with FD axle

Landing gear-fold down, hand-crank

Towing eye-Pintle type hitch


Conveyor Components

Belting -3-ply 3/16 x 1/16 330 PIW

Belt splice -factory vulcanized splice

Belt retainer-retains belt when folding conveyor

Scraper-Superior Exterra® Primary Belt Scraper

Return cleaner-Superior V-Plow UHMW blade

Superior Idlers-CEMA C, 5” dia. steel rolls, sealed for life ball bearings

Idler Seal-Standard SpinGuard® Seal

Load area-20° trough, 16" spacing

Trough-35° on 4' spacing

Returns-steel cans, on 10' spacing

Radial hopper-sloped, 5' long, bolt on design

Gathering trough -5' long with adjustable rubber flashing


Additional Specifications

Guarding-for drive and tail pulleys, v-belt drive and return idlers. Guards may not meet all local codes; customer is responsible to have guarding inspected.

Power Supply-480 v / 3 ph / 60 hz

Panel brackets-for customer installed electrical panel enclosure

Cord Holders-(1) Set bent pipe style

Electrical-with starters for drive, auxiliary motors

Paint-1 coat primer, 1 coat finish enamel Superior Beige 12-00619

Guard Paint-Safety Yellow

Idler Paint-powder coated Superior Orange

Patents-unit includes patents

Owner’s Manual-(1) copy in English included for operation and maintenance

Sign Plate-RB Scott sign plate installed
