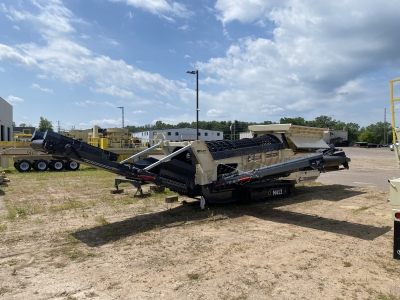

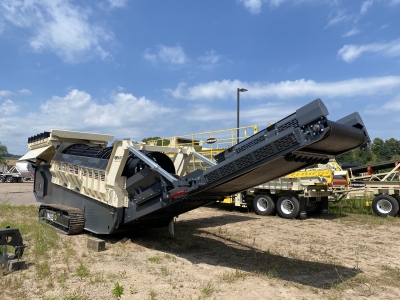

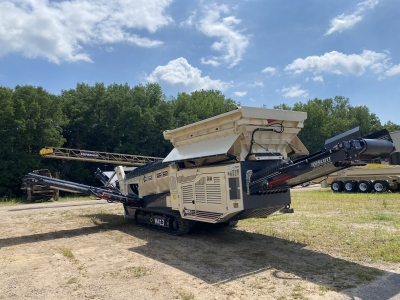

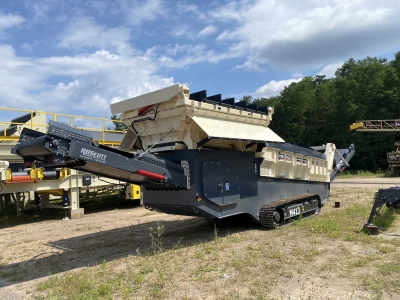

MDS M413 Track Mounted Trommel Unit #1226
SN: #SN: TMD413CCKN60049
M413 with 3 Splits
Fines - 4"
Mid-Product - 12"
Output - 250-300 Tonnes per Hour.
Tipping Grid - 18"
Hopper and Feeder
Feed hopper capacity - 141ft3
Feed Mechanism - Hardox heavy duty steel pan reciprocating push feeder
Plate width - 3' 4"
Speed - 8 Strokes per minute.
Weight & Working Dimensions
Weight – 25.6 Tons
Length - 55’ 3”
Width - 21’ 11”
Height - 10’ 2” (14’ 7” with Grid)
Trommel Drum
Diameter - Internal 4’ 1”
Length - 13’ 1”
Incline angle - 5 degrees
Screen sizes
- Fines: 150 mm screens
- Mid Product: 300 mm screens
Screen segments - Manufactured from steel bar and bolted sections.
Transport Dimensions
Dimension (L x W x H) - 43' 11" x 8' 2" x 10' 2"
Conveyors
Fines Conveyor
- 3’ 3” wide
- Heavy-duty belt
- Feeding to the rear of the machine.
- Output height 6’ 6”
- Single hub Hydraulic Drive
Mid Product Conveyor
- 4’ 5” wide
- Heavy-duty belt
- Feeding to the side of the machine.
- Output height 6’ 6”
- Single hub Hydraulic Drive
Oversize Conveyor
- 3’ 3” wide
- Heavy-duty belt
- Feeding to the front of the machine.
- Output height 6’ 8”
- Single hub Hydraulic Drive
Power Unit
This unit is powered by CAT 2.2 50 kW (73.76HP) engine
Control Panel
Control panel – dust and weatherproof to IP55
Panel contents – ignition key switch, emergency stop, and emergency stop circuit tester. Various control gauges (revs and temperatures)
