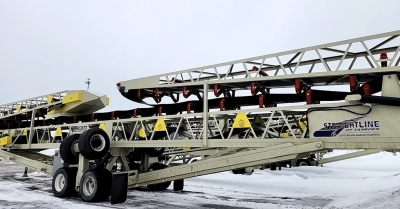

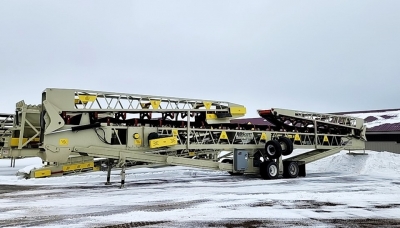

Straightline 36" x 137' Portable Radial Stacking Conveyor Unit#1242

SN: #SN:361370322743

• • Frame: Tail section 4 x 4 x 5/16 chord angles, 2 x 2 x 1/4 angle lattice, Mid & Head section 4 x 4 x ¼ chord angles, 2 x 2 x ¼ angle lattice members with 5 x 3 x 5/16 angle for bottom extra cord
  • Electrical hydraulic power unit / manual spool valves
  • Hydra-fold on head and tail section
  • Hydraulic adjustable height undercarriage
  • SLI Fold Down series axle
  • (4) 385/65R-22.5 tires on out rigger
  • (4) 2hp Planetary drives for radial travel
  • Tandem Axle with – (8) 11.00R /22.5 tires
  • Air Brake package and light package
  • (1) 24” x 38” Drive drum pulley 3/8” HB lagging – 3 15/16” shaft
  • (1) 24” x 38” Drive wing pulley 3/8” HB lagging – 3 15/16” shaft
  • 16” x 38” Head pulley - 3-7/16” shaft
  • 16” x 38” Tail wing pulley – 3-7/16” shaft
  • CEMA C – Troughing idlers 5” rollers on 4’ centers
  • CEMA C - Return idlers 5” rollers on 10’ centers
  • Gear Reducer: (2) Dodge size TA6 with backstop
  • Motor: (2) 30hp 1800 230/460/3ph Toshiba
  • Dual motor drive system
  • Electrical: Switchgear
  • Bearings: Dodge S2000
  • Take-ups: Superior 24” Top Angle
  • Conveyor belt: 36”- 3 ply 1/4” x 1/16” cover
  • 850TPH
  • Belt Splice: Flexco 140 fasteners
  • 5’ radial receiving hopper with extra idlers at load point
  • Heavy duty landing gear
  • Fifth wheel hitch and tow eye
  • Pivot plate
  • Belt Cleaner: By Superior
  • Guarding: Tail pulley and V-belts
  • Sandblasted: Frame
  • (1) Coat primer urethane (1) Coat finished urethane
