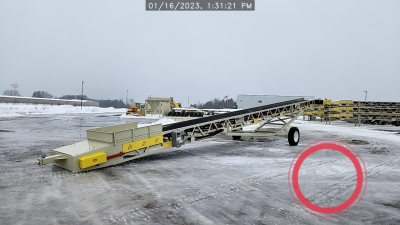

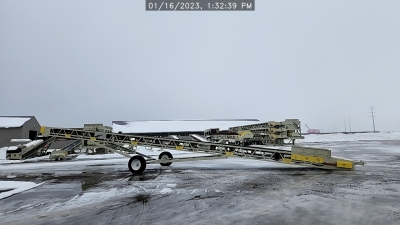

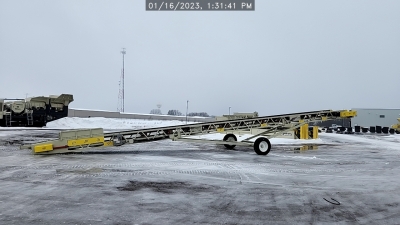

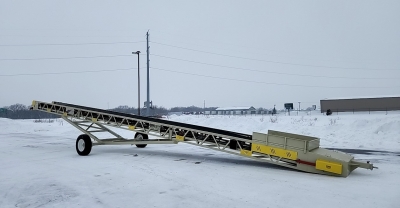

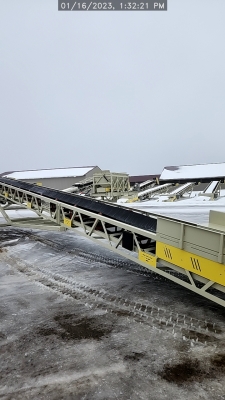

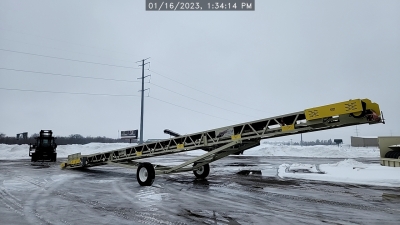

Straightline 36in x 60ft Pit Portable Radial Stacking Conveyor Unit #1234

SN: #SN: 36600223777

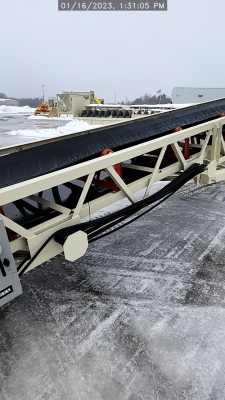

  • Frame: : 3 x 3 x 1/4” Chords with 2 x 2 x 3/16” Lattice members – with 3 x 3 x 3/16” angle recessed in frame for troughing idlers
  • 24” Deep Truss
  • SLI V-style adjustable height under carriage – manual pin adjustment

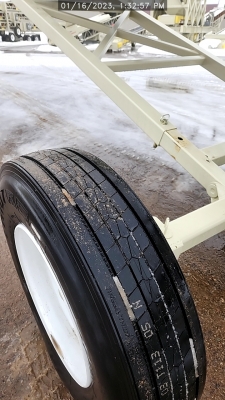

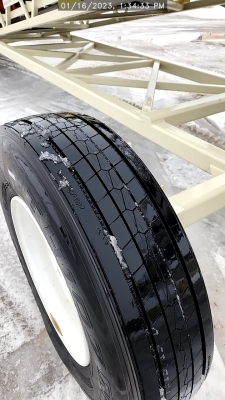

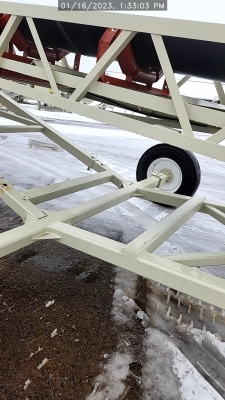

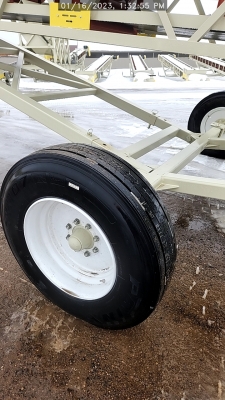

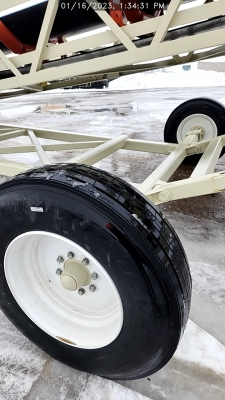

  • Axle: Single Fixed w/single 11.00-22.5 tires with swivel plates for manual radial travel

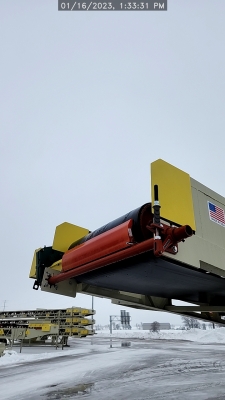

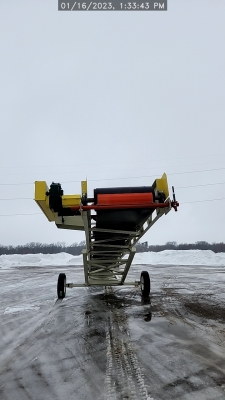

  • Head pulley: 14” x 38” C.F. – 3/8” H.B. lagging – 2-15/16” shaft
  • Tail pulley: 12” x 38” Wing style – 2-7/16” shaft
  • Troughing idlers: CEMA B – 5” rollers on 4’ centers
  • Return idlers: CEMA B– 5” rollers on 10’ centers
  • Return idler nip guards

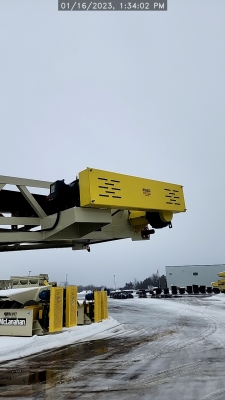

  • Gear Reducer: Master PT size 5 with backstop

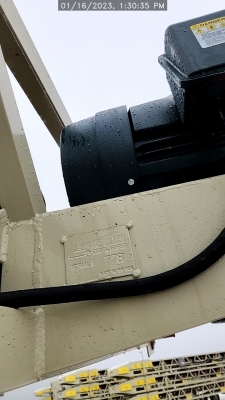

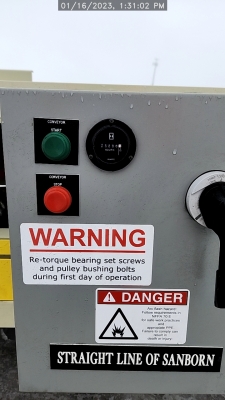

  • Motor: 20HP 1800RPM 230/460/3ph Toshiba
  • 750TPH / 400FPM
  • Bearings: Dodge SCM
  • Take-ups: SLI Screw Type

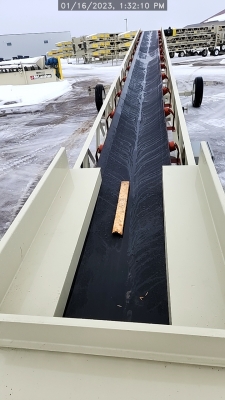

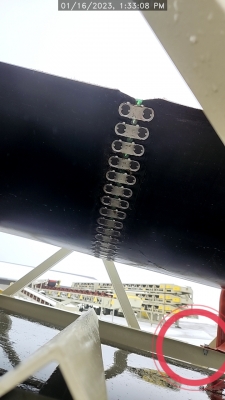

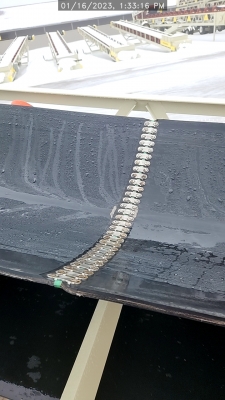

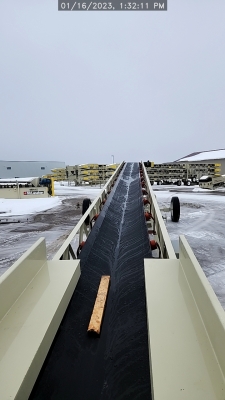

  • Conveyor belt: 36”- 3 ply 3/16” x 1/16” cover
  • Belt scraper: Superior

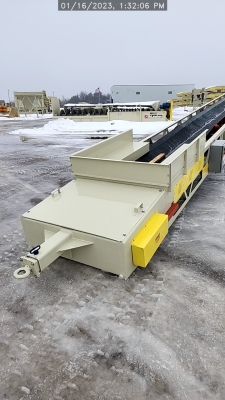

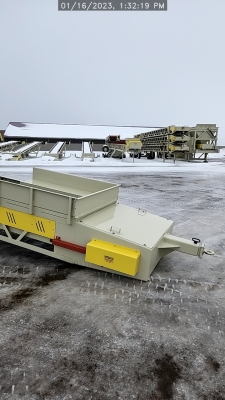

  • 6’ Radial receiving hopper with extra idlers at load point
  • Radial Hopper with stake pockets (removable)
  • Tow ring

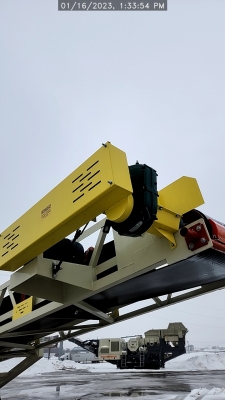

  • Guarding: Tail pulley and V-belts
  • Sandblasted: Frame
  • (1) Coat primer urethane (1) Coat finished urethane
