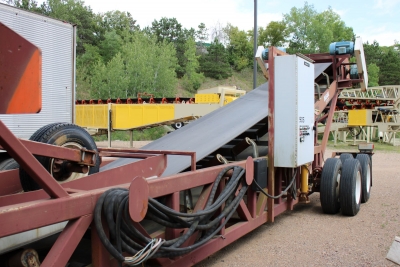

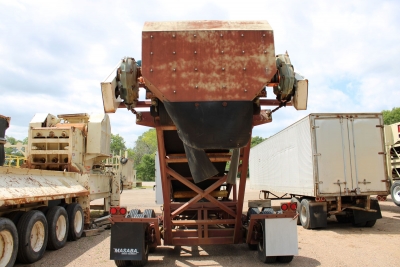

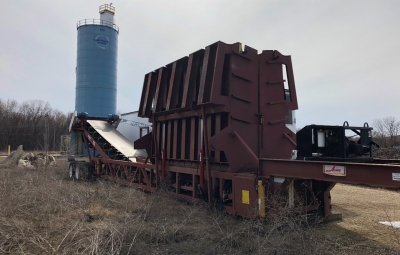

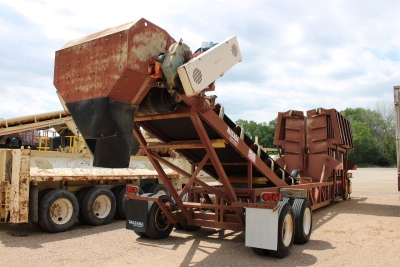

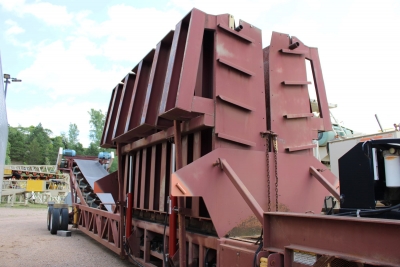

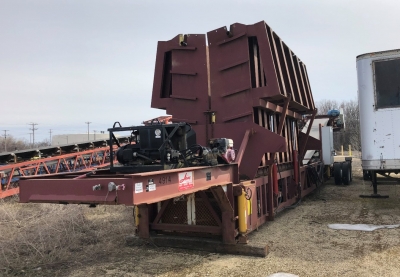

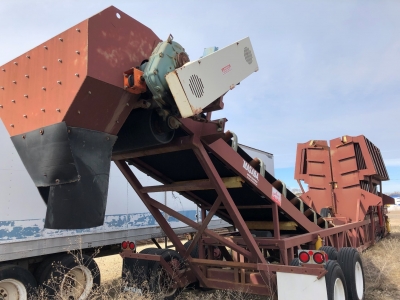

Used Masaba 48in Truck Unloader Unit #1279

SN: #SN 2009345

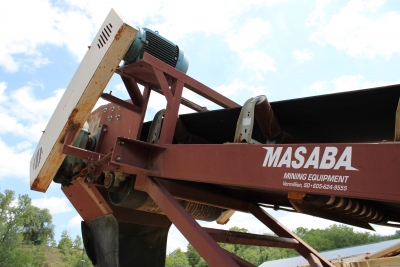

Drive- Dual Drive

Motor Mount- Dual 30hp Masaba Motor Mount

Belt Guard- Masaba Drive Belt Guard

Motor- 30HP WEG, 1800RPM (NEMA 286T)

Motor Sheave- 3A6.0B6.4-SD

Motor Bushing- SD 1 7/8 QD Bushing

V-Belts- B128

Reducer- TXT725

Tapered Bushing- TXT 3 15/16”

Reducer Sheave- 3A12 0B12.4-SK

Reducer Sheave Bushing- SK 2 7/16” QD Bushing

Head Pulley- 20 x 51 Standard Duty Drum Pulley with 3/8 HBL

Head Shaft- 4 7/16” Diameter Turned Down to 3 15/16” 95” Shaft Length

Head Bearings- P4B-E-407R

Snub Pulley- 16 x 51 Standard Duty Drum Pulley with 14” smooth lagging

Snub Shaft- 3 7/16” Diameter – 62” Long

Snub Bearings- P2B-E-307R

Tail Pulley- 12x51 Standard Duty Self-Cleaning Wing Pulley

Tail Shaft- 3 7/16” Diameter – 67” Long

Tail Bearings- F4S-S2-307R

Take-Up- 16in Acme Screw Take-Up with 47” Long Rod

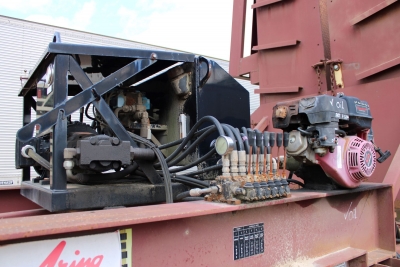

Hydraulic Unit- Self Contained  Hydraulic Unit with 8HP Honda Motor, Electric Start

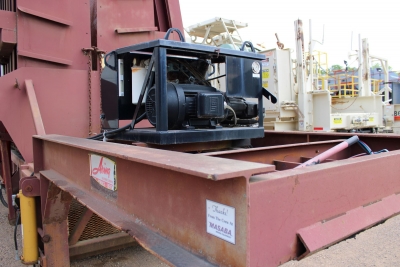

Hydraulic Unit- Self Contained Hydraulic Power Unit 30gal/20hp/20GPM/1750psi

Body Decal- P/N 9345017

Landing Hyd. Cylinder- Hydraulic Jack SAE-64520 – 4½” Bore x 20” Stroke Cylinder

Ramp Cylinder- Hydraulic Ramp PMC-5630 – 4” Bore x 30” Stroke Cylinder

Spool Valve- 6 Valve Manual Spool

Belting- 48” 3-ply 3/16” x 1/16”

Belt Splice- Mechanical Steel Fasteners

Belt Scraper- 48” Pit Viper with Twist Tensioner

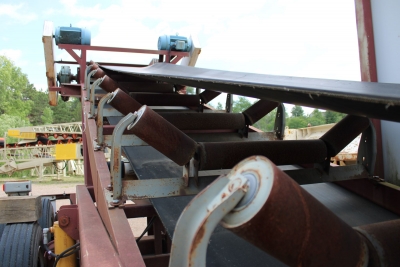

Transition Idlers- D5-20TU-48SB

Troughing Idlers- D5-35TU-48SB

Return Idlers- D5-RRD-48SB-1 (Rubber Disc Return Idlers) (1½” Drop #02200)

Live Shaft Impact Idlers- D5-35LSI-48 Live Shaft Impact Carrier Idler (Rubber Disc)

Live Shaft Impact Bearings- P2B-SCM-203

Grate- Fabricated Steel Grate

Feed Gate Adjustment- Bulldog Jack

Lifting Shackle- ¾” Forged D-Shackle with 7/8” round pin, McMaster P/N 3561T51 or equivalent

Tube Sealer- Expanding Foam Insulation

Hopper- Under crusher hopper with adjustable rubber flashing

Rubber Flashing- 1/2x6 Rubber Flashing

UHMW Skirting- 1” x 8” x 96” UHMW Machined

Guarding- Tail pulley guards, nip guard, v-belt guards

Tires- Radial Tires 11 x 22.5

Primer- Coat primer, Sandblasted

Paint- Masaba Maroon
