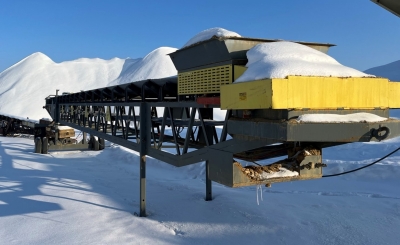

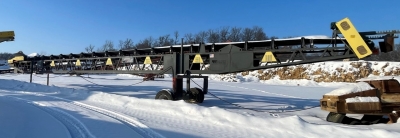

Used Straightline 42x80 Portable Transfer Conveyor Unit #1289

#42800218590

Equipment As Follows:

• Frame: 3 x 3 x ¼” angle chords with 2 x 2 x 3/16” angle lattice members

with 4 x 3 x ¼” extra cord

• Truss: 36” Deep
• 15ft manual head section fold
• Dolly legs mounted to ¼” plate for reinforcement
• Adjustable height under carriage – manual pin adjustment – 11ft 6in of lift
• Axle: Single w/Dual 11.00-22.5 Radial tires
• Air Brakes, Light Package and Mud Flaps
• Head pulley: 18” x 44” C.F. – 3/8” H.B. lagging – 3 7/16” shaft
• Tail pulley: 16” x 44” wing style – 2-15/16” shaft
• Impact idlers under receiving hopper
• Troughing idlers: CEMA C – 5” rollers on 4’ centers
• Return idlers: CEMA C – 5” rollers on 10’ centers
• Return Idler Nip Guards and Side Guards
• Gear Reducer: Dodge size 6
• Motor: 30HP 1800RPM 230/460/3ph Toshiba
• Electrical Panel
• Bearings: Dodge
• Take-ups: SLI screw type
• Conveyor belt: 42”- 3 ply 3/16” x 1/16” cover
• 1200TPH / 400FPM
• Belt scraper: Martin Pit Viper
• 5’ receiving hopper with Impact idlers at load point and adjustable rubber

flashing

• Hitch: 5th wheel king pin and tow eye
• Guarding: Tail pulley and V-belts
• Sandblasted: Frame
• (1) Coat urethane primer (1) Coat urethane finished

On-Site Start-up, Training and Warranty Commissioning

• RB Scott will supply a field service technician to complete startup
