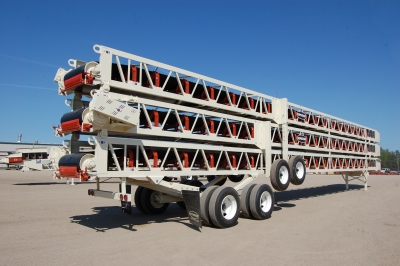

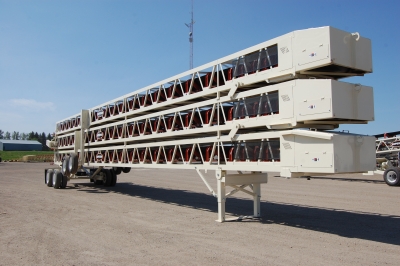

Superior 42x70 Slide-Pac System Unit #1365
SN: #SN 2309832, 833, 834
Equipment on Order: Equipment As Follows:
(3) Stacked Conveyors with Roll-off/Roll-on capability
Conveyor Frame - No top cross lattices
Trailer Unit (TRL)
Main Frame-30" deep truss
Top Chord Angles-4" x 3" x 3/8"
Bottom Chord Angles-4" x 4" x 5/16"
Lattice Members-2" x 2" x 3/16"
Middle unit (TRL) and
Top unit (TOP)
Main Frame-30" deep truss
Top Chord Angles-4" x 3" x 3/8"
Bottom Chord Angles-4" x 4" x 5/16"
Lattice Members-2" x 2" x 3/16"
Roller Assembly-Single set on head end for easy loading and unloading
Containerized-not included
Drive Specifications
Drives-Class I head drive
Gear Reducers-Shaft Mount
Backstops-installed in reducer
Motors-30 HP TEFC
V-Belt Drive-with drive guard
Capacity-1200 STPH of 100 PCF material, 25° surcharge (90% fines, 10% spherical lumps, 6" minus)
Belt Speed-400 fpm
Drive Pulley-18" diameter, 3/8" herringbone lagged drum
Tail Pulley-14" diameter, CEMA Chevron® wing
Shafts-Turned and Polished
Bearings-Included
Take-up-Screw type
Portability
Conveyor Splice-one piece frame
Towing Eye-pintle hitch type
Trailer Unit (TRL)
TRL V type axle-10' 6" fixed discharge height, walking beam axle, non-swiveling dual 11R-22.5 wheels and tires
Support Legs-Adjustable height folding legs
Fifth wheels-On trailer unit
Brakes-complete air brake package
Lights-brake and directional signals
Mud Flaps-installed behind transport wheels
Middle Unit (MID)
MID Strut Axle-10' 6" adjustable height, non-swiveling single 11-22.5 Ag wheels and tires
Top Unit (TOP)
TOP Strut Axle-12' 3" adjustable discharge height, non-swiveling single 11-22.5 Ag wheels and tires
Fold down legs-Fixed height legs for Mid and Top Unit
Conveyor Components
Belting-3-ply 3/16 x 1/16 330PIW
Belt Splice-Flexco mechanical steel fasteners
Scrapers-Superior Exterra® Primary Belt Scraper
Idlers-CEMA C, 5" dia. Steel rolls, sealed for life ball bearings
Mounting-Recessed inside frame
Idler Seal-Superior Standard SpinGuard® Seal
Load Area-20° trough, 12-16" spacing
Trough-35° on 4' spacing
Returns-steel cans on 12' spacing
Skirting Extension-5' long, 10" high, hinged, with 1" round bar for material shelf
Gathering Trough-5' long with adjustable rubber flashing
Additional Specifications
Guarding-For drive and tail pulleys, v-belt drive and return idlers. Guards may not meet all local codes; customer is responsible to have guarding inspected
Voltage-480 V / 3 PH / 60 Hz
Cord Holders-(1) set bent pipe style
Control Panel Plate-bracket only for panel
Control Panel-control panel and wiring included for on board motors
Paint-1 coat primer, 1 coat finish enamel (*available colors below)
Guard Paint
Idler Paint-Powder coated Superior Orange
Owner's Manual-(1) copy in English included for operation and maintenance
On-Site Start-up, Training and Warranty Commissioning
- RB Scott will supply a field service technician to complete startup
