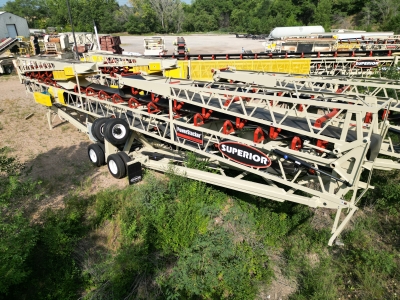

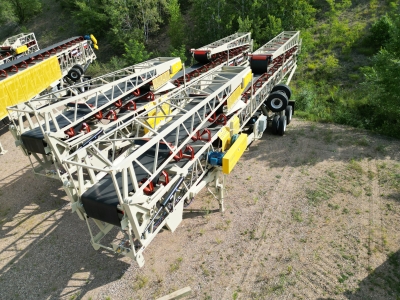

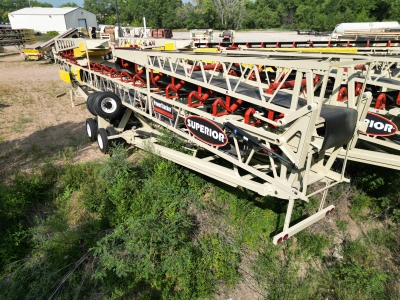

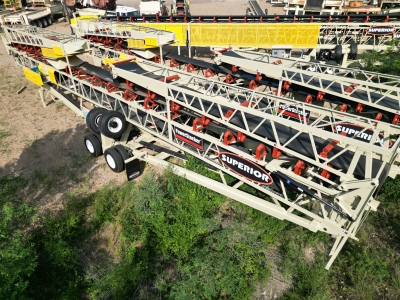

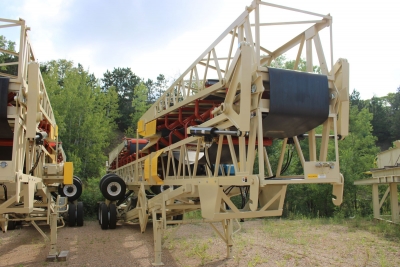

Superior 36x125 Powerstacker Unit #1329
SN: #SN 2240556
Equipment As Follows:

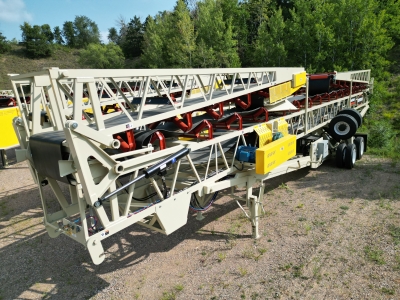

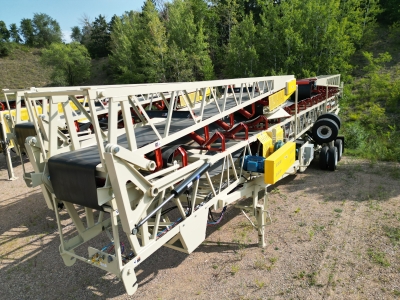

Conveyor Frame
Main Frame- 36” deep truss
Chord Angles- 4” x 3” x 1/4"
Bottom Chord Angles- bottom chord upsized between pinpoints to 5” x 3” x 1/2"
Lattice Members- 1-3/4” x 1-3/4” x 3/16”
Containerized- not included

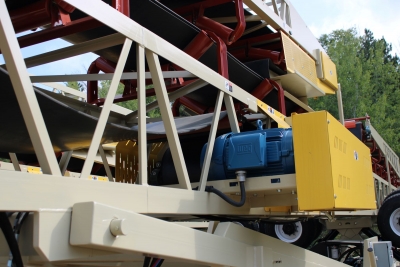

Drive Specifications
Drive- Class I single wrap
Gear Reducers- dodge shaft mount
Backstop- installed in reducer
Motor- 50 HP TEFC
V-Belt Drive- with drive guard
Capacity- 750 STPH of 100 PCF material, 25o surcharge (90% fines, 10% spherical lumps, 6” minus)
Belt Speed- 400 fpm
Drive Pulley- 24” diameter, 3/8” herringbone lagged drum
Tail Pulley- 16” diameter, CEMA Chevron wing
Snub Pulley- 20” diameter, CEMA Chevron wing
Head Pulley- 18” diameter, plain steel drum
Shafts- turned and polished
Bearings- included
Take-up- screw type

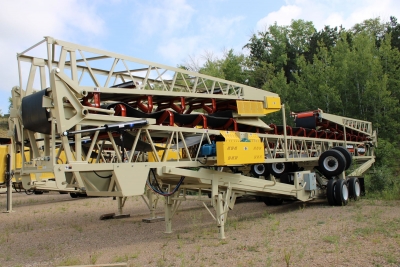

Portability
Conveyor Splice- hydraulic top folding head and tail, with integral belt keeper
Undercarriage- hydraulic raise with 7.5 hp electric pumping unit
Axle Type- FD40 axle
Transport Axle- (8) 11R-22.5 transport tires with brakes and mud flaps
Radial Axle- (4) 385/65D-19.5 tires on hydraulic outriggers, power travel (requires hyd. raise)
Compensation Linkage- not included
Radial Travel- (4) 2 HP planetary (all wheel drive)
Fifth Wheel- for road travel, bolt on design
Anchor Pivot Plate- maintains tail end during radial travel
Brakes- complete air brake package
Lights- brake and directional signals
Mud Flaps- installed behind transport wheels
Landing Gear- 2 speed crank-down, fold-up design
Towing Eye- pintle hitch type
Conveyor Components
Belting- 3-ply 3/16 x 1/16 330PIW
Belt Splice- factory vulcanized belt splice
Scrapers- Superior Exterra Primary Belt Scraper
Return Cleaner- Superior V-Plow UHMW blade
Idlers- CEMA C, 5” dia. steel rolls. sealed for life ball bearings
Idler Seal- Superior Standard SpinGuard Seal
Load Area- 20o trough, 12-16” spacing
Trough- 35o on 4’ spacing
Returns- steel cans on 10’ spacing
Radial Hopper Liner- not included
Gathering Trough- 5’ long with adjustable rubber flashing
Additional Specifications
Guarding- for drive and tail pulleys, v-belt drive and return idlers. Guards may not meet all local codes; customer is responsible for to have guarding inspected
Voltage- 480 V / 3 PH / 60 Hz
Cord Holders- (1) set bent pipe style
Control Panel Plate- bracket only for panel and hydraulic levers

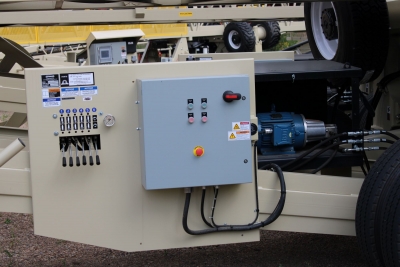

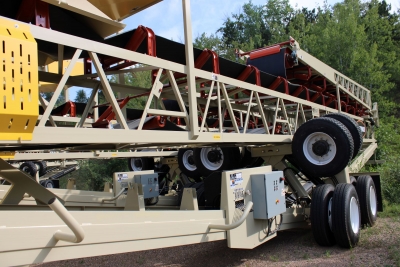

Control Panel- control panel and wiring included for on board motors
Hourmeter- analog meter mounted to exterior of panel
Paint- 1 coat primer, 1 coat finish enamel Superior Beige 12-00619
Guard Paint- safety yellow
Idler Paint- powder coated Superior Orange
Patents- unit includes patents
Owner’s Manual- (1) copy in English included for operation and maintenance
Sign Plate- RB Scott sign plate installed
On-Site Start-up, Training and Warranty Commissioning
- RB Scott will supply a field service technician to complete startup
