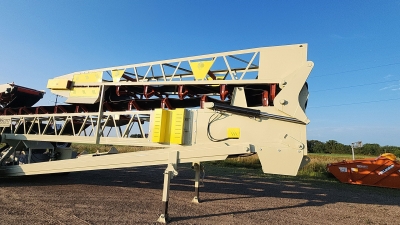

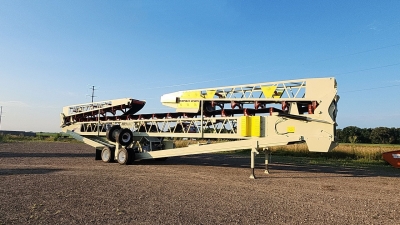

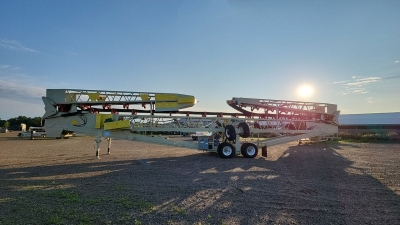

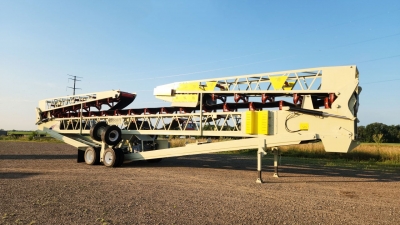

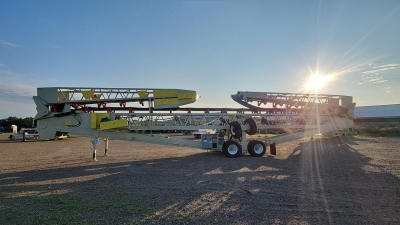

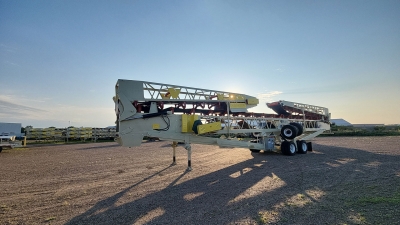

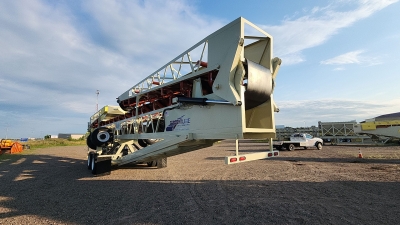

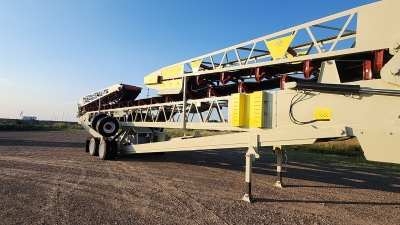

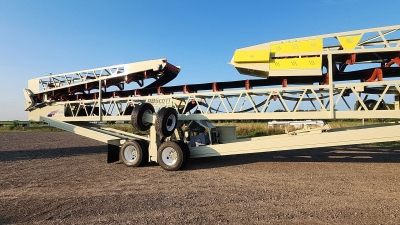

Straightline 36x125 Portable Radial Stacking Conveyor Unit #1456

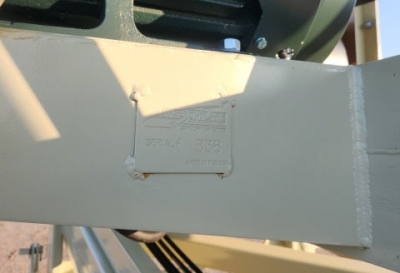

SN: #361250324838

Equipment As Follows:

• Frame: Tail section 4 x 4 x 5/16 chord angles, 2 x 2 x 1/4 angle lattice, Mid & Head section 4 x 4 x 5/16 chord angles, 2 x 2 x ¼ angle lattice members with 5 x 3 x 5/16 angle for bottom extra cord

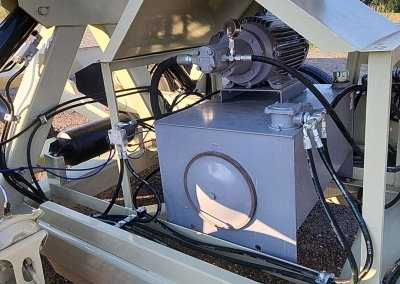

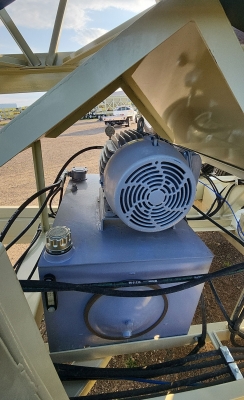

• Electrical 15hp hydraulic power unit / manual spool valves
• Hydra-fold on head and tail section

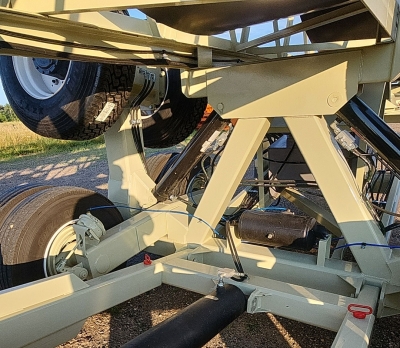

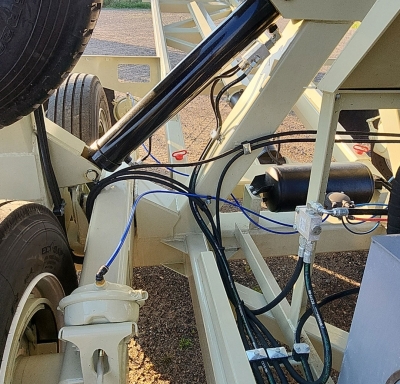

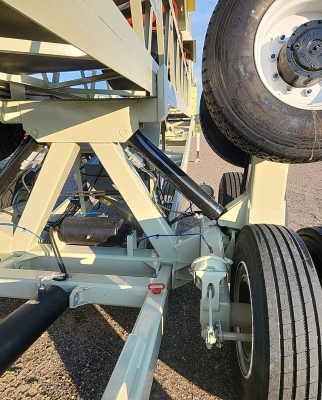

• Hydraulic adjustable height undercarriage
• SLI Fold Down series axles (Hydraulic powered)

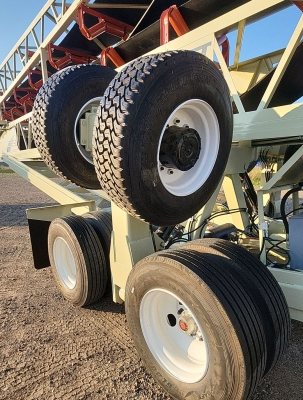

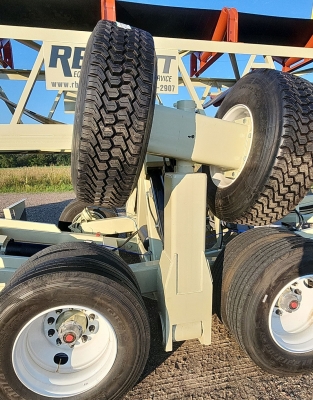

• (4) 385/65R-22.5 tires on out rigger
• (4) 2hp Planetary drives for radial travel
• Tandem Axle with – (8) 11.00R /22.5 tires
• Air Brake package, light package, mud flaps
• 24” x 38” Drive pulley Ceramic Lagging – 3 15/16” shaft
• 20” x 38” Wing pulley – 3 7/16” shaft

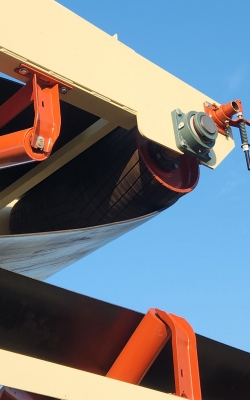

• 16” x 38” Head pulley - 3-7/16” shaft
• 16” x 38” Tail wing pulley – 3-7/16” shaft
• CEMA C – Troughing idlers 5” rollers on 4’ centers
• CEMA C - Return idlers 5” rollers on 10’ centers

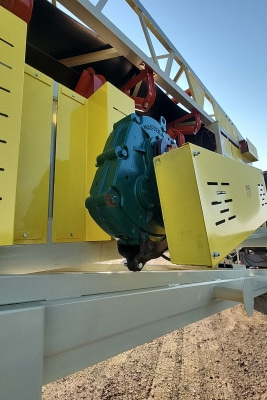

• Gear Reducer: Master PT size 7 with back stop
• Motor: 50hp 1800 230/460/3ph Toshiba (single drive only)
• Electrical cord wrap hooks

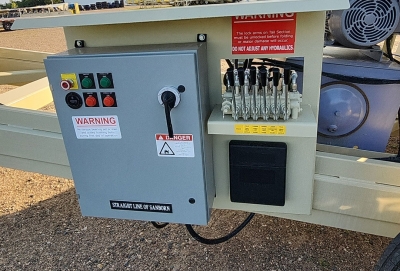

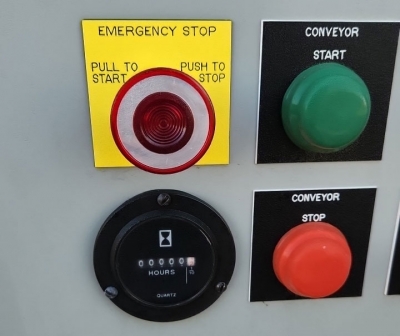

• Electrical panel
• Bearings: Dodge S2000
• Take-ups: Top Angle
• Conveyor belt: 36”- 3 ply 3/16” x 1/16” cover
• 880TPH / 400FPM
• Belt Splice: Flexco 140 belt splice
•  5’ radial receiving hopper with extra idlers
• Heavy duty landing gear
• Fifth wheel hitch and tow eye

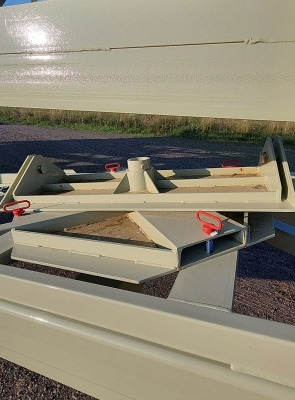

• Pivot plate
• Belt Cleaner: Superior Exterra
• Guarding: Tail pulley and V-belts
• Sandblasted: Frame
• (1) Coat primer urethane (1) Coat finished urethane
