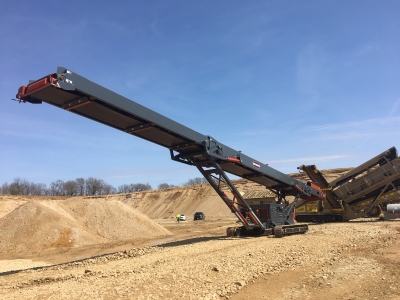

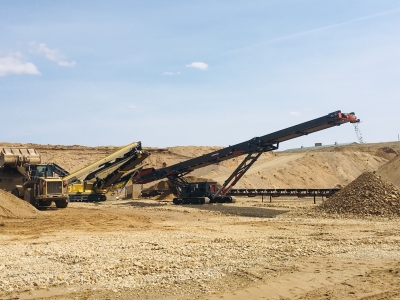

Used Superior 42" x 75' Tracked Conveyor Unit #880

SN: #SN 1351802

Conveyor Frame

  • Main frame-27" deep stringer sides


Drive specifications

  • Drive-hydraulic head end drive
  • Capacity-500 STPH of 100 PCF material (90% fines, 10% spherical lumps, 8" Minus) 24 degree incline
  • Belt speed-400 fpm


Superior pulleys

  • Drive pulley-14” diameter, 3/8” herringbone lagged drum
  • Tail pulley-12” diameter, MD Chevron wing
  • Shafts-3 15/16 head pulley, 3 7/16 tail pulley
  • Bearings-3 7/16 Dodge Pillow Block
  • Take ups-screw type



  • Track mounted-conveyor supported on one pair of tracks, hydraulically powered
  • Top folds-head and tail sections fold up hydraulically
  • Conveyor raise-undercarriage head arm and tail arm independently raise and lower hydraulically
  • Self-contained-74 HP CAT tier 4 diesel engine supplies hydraulic power to tracks, conveyor drive, conveyor folds and under carriages
  • Remote Control-Wireless remote included


Conveyor Components

  • Belting-3 ply 1/8 x 1/16 230 PIW
  • Belt Splice-Factory Vulcanized
  • Primary scraper-Superior Exterra Primary
  • Superior Idlers-CEMA C steel, 5” dia. rolls, sealed for life ball bearings
  • Trough-20° on 4' spacing
  • Returns-Superior: CEMA C5


Additional Specifications

  • Guarding-for drive and tail pulleys, v-belt drive and return idlers. Guards may not meet all local codes; customer is responsible to have guarding inspected.
  • Paint-Superior color Scheme
  • Decals-TBC
  • Idler Paint-powder coated Superior Orange
  • Shipping-Designed to fit into shipping container
  • Owner’s Manual-(1) copy included for operation and maintenance
