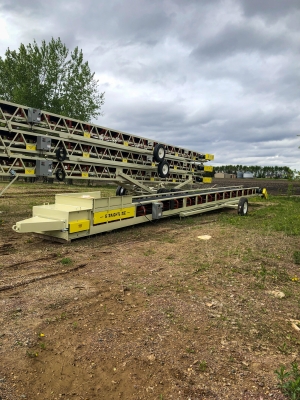

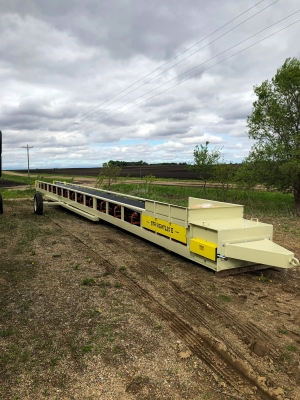

Used Straightline 36" x 60' Pit Portable Radial Stacking Conveyor Unit #1145

#36600821726

• Frame: C8 channel with 3 x 3 x 3/16” sq for cross support, C4 channel uprights top with 4 x 2 x 3/16” rec tube
• SLI V-style adjustable height under carriage – manual pin adjustment
• Axle: Single Fixed w/single 11.00-22.5 tires with swivel plates for manual radial travel
• Head pulley: 14” x 38” C.F. – 3/8” H.B. lagging – 2-15/16” shaft
• Tail pulley: 12” x 38” Wing style – 2-7/16” shaft
• Troughing idlers: CEMA C – 5” rollers on 4’ centers
• Return idlers: CEMA C– 5” rollers on 10’ centers
• Return idler nip guards
• Gear Reducer: Dodge size 5 with backstop
• Motor: 20HP 1800RPM 230/460/3ph Toshiba
• 750TPH / 400FPM
• Bearings: Dodge SCM
• Take-ups: SLI Screw Type
• Conveyor belt: 36”- 3 ply 3/16” x 1/16” cover
• Belt scraper: Superior
• 6’ Radial receiving hopper with extra idlers at load point
• Radial Hopper with stake pockets (removable)
• Tow ring
• Guarding: Tail pulley and V-belts
• Sandblasted: Frame
• (1) Coat primer urethane (1) Coat finished urethane
• Switchgear with 100ft of extra cord
