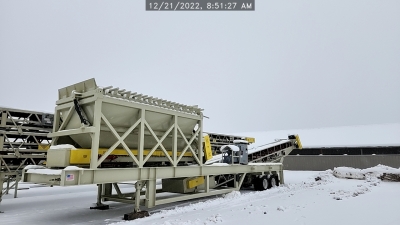

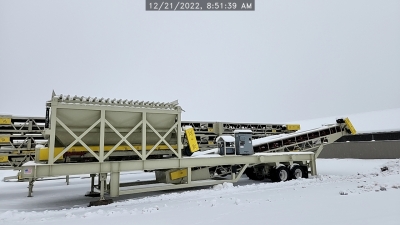

Straightline 8x16 Portable Bin Feeder with Discharge Conveyor Unit #1238

#8X160323781

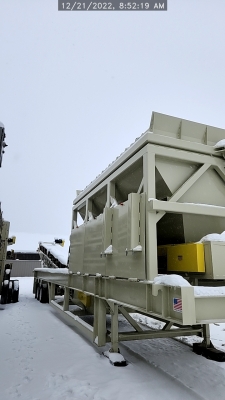

Chassis

  • Frame: Wide flange main beams

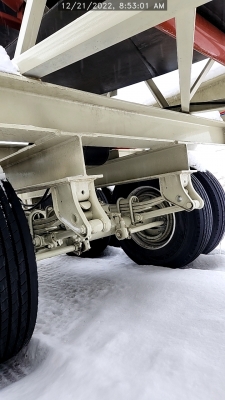

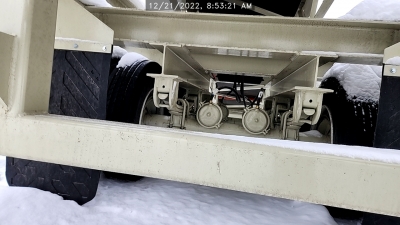

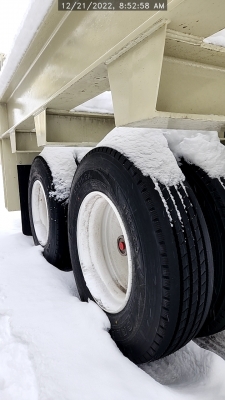

  • Axle: Tandem with (8) 11-22.5 radial tires / 10 bolt hub piloted
  • Landing jacks: (2) manual
  • Cribbing legs
  • Fifth wheel hitch

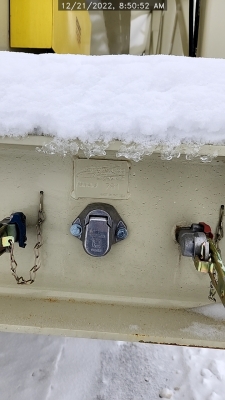

  • Air brakes, light package and mud flaps

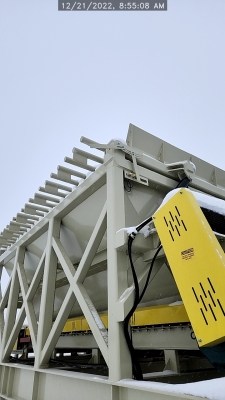

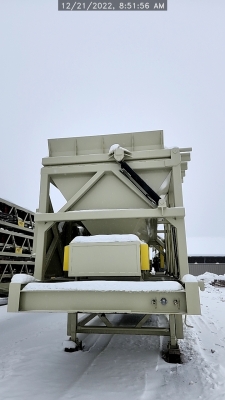

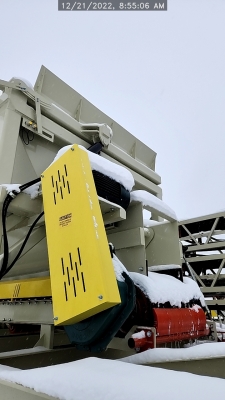

 Hopper

  • 8’ x 16’ hopper
  • Fabricated out of 1/4” plate steel

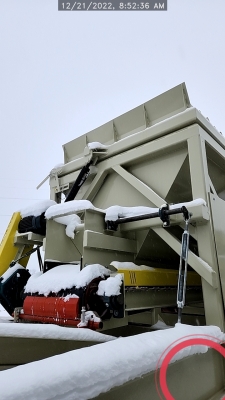

  • Hydraulic Powered Self-Relieving Grizzly Top – 3” bars with 6” spacings
  • Electric hydraulic power unit – with Lodar wireless remote
  • Breaker beam inside of hopper
  • Manually operated flow control gate, ground level adjustment
  • Fold down curtains – 3/8” plate steel
  • Canoe rubber flashing

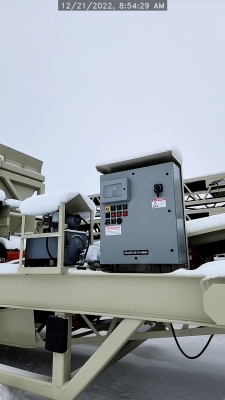

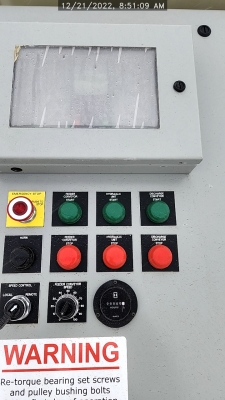

  • Electrical switchgear with 20hp VFD & 25hp starter


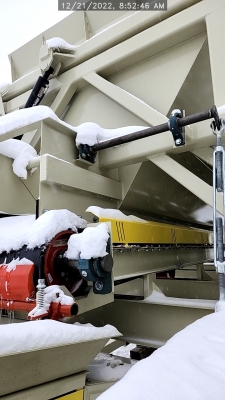

Feed Conveyor (removable under hopper)

  • 36” x 20’ feed conveyor
  • C8 channel frame

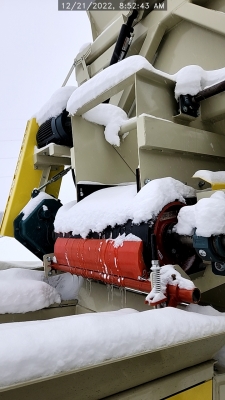

  • 14” x 38” head pulley, CF with 3/8” HB lagging
  • 14” x 38” tail pulley, wing style
  • CEMA C 5” Flat impact rollers – 8” centers under hopper
  • Motor: 20HP 1800RPM 230/460/3ph Toshiba

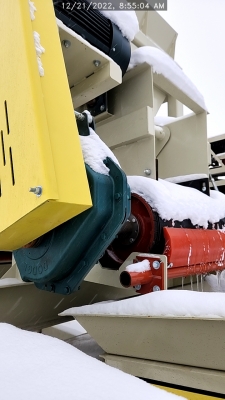

  • Gear reducer: size TA5 40:1
  • Take-ups: SLI screw type
  • Bearings: Dodge
  • Conveyor belting: 36” 3ply ¼” x 1/16” cover
  • Belt Scraper: By Superior

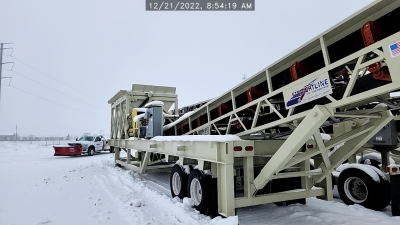

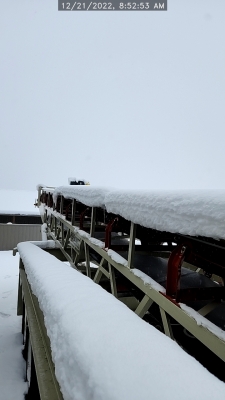

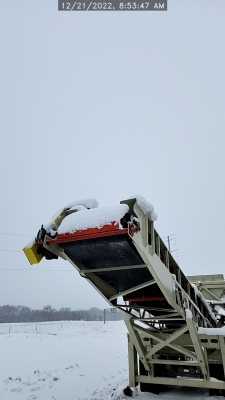

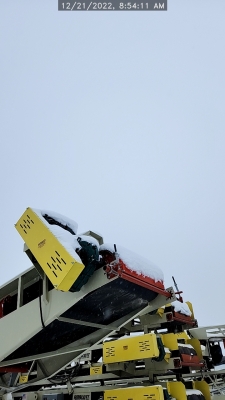

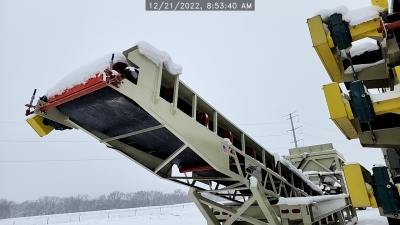

Pivoting Discharge Conveyor / (18ft from grade to center of head pulley)

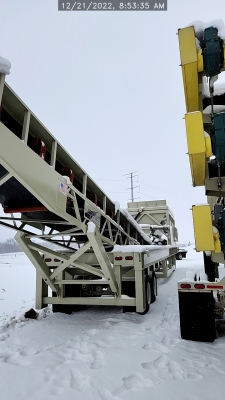

  • 42” x 46’ – 24” Truss frame discharge conveyor with manual adjustment
  • Skirting entire length of conveyor

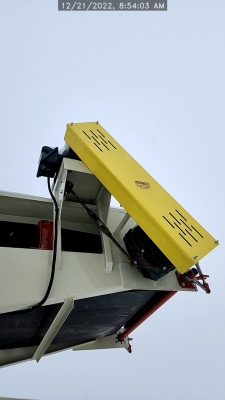

  • 16” x 44” head pulley, CF with 3/8” HB lagging
  • 14” x 44” tail pulley, wing style
  • CEMA C – 5” dia. 20 deg troughing idlers on 4’ centers
  • CEMA C – 5” dia. return idlers on 10’ centers
  • Motor: 25 HP 1800RPM 230/460/3ph Toshiba

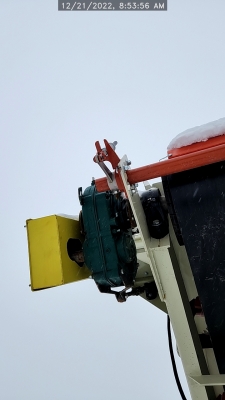

  • Gear reducer: size 6 Master PT with backstop
  • Take-ups: Wide Slot
  • Bearings: Dodge
  • Conveyor belt: 42”- 3 ply ¼” x 1/16 cover – vulcanized splice
  • Belt Scraper: By Superior
  • 5ft flared receiving hopper with extra idlers

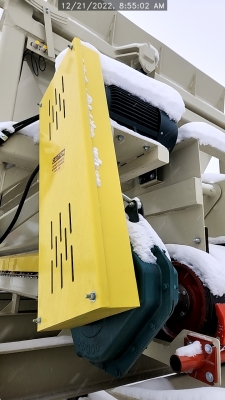

  • Guarding: Tail pulley and V-belts
  • Sandblasted: Frame
  • (1) Coat urethane primer (1) Coat urethane finished
