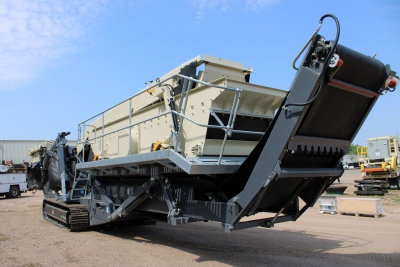

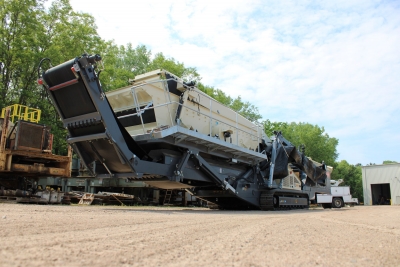

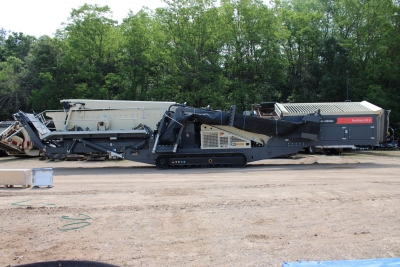

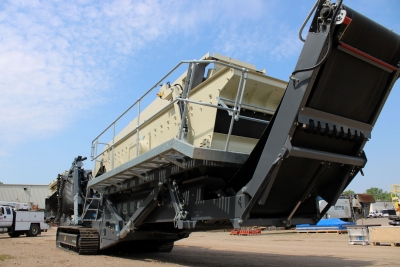

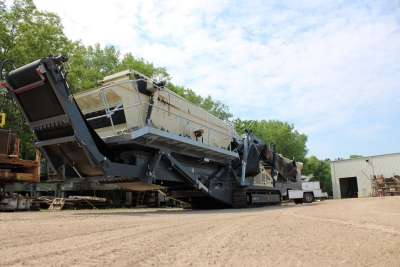

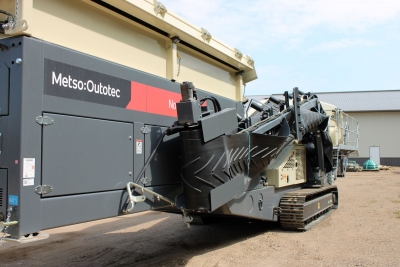

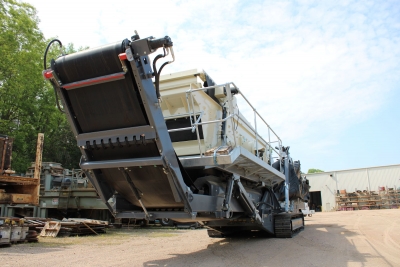

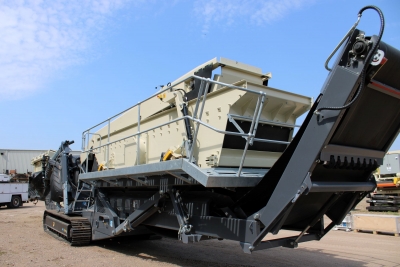

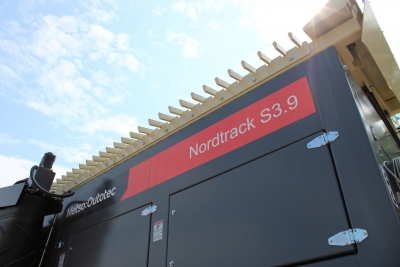

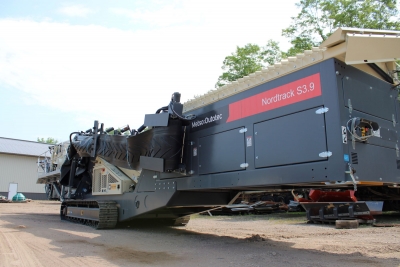

Metso S3.9 Mobile Screen Unit #1321

SN: #SN: 1900682

Equipment As Follows:


Feeding Unit

Feeding unit type- Tipping grid 100mm (4'')

  • Static grizzly with hydraulic tilting feature.

Feed control gate- Included

  • Adjusts and balances the material going from the hopper to the lifting conveyor.

 Screening Unit

Screening unit- S3.9 two-deck screen


Power Unit

Diesel engine- CAT C4.4

Emission class- Tier 4F

Climate kit- Standard kit

  • Standard kit includes hydraulic oils for temperature ranges from -5'C to +30'C



Main conveyor- Standard

Product conveyor- Standard

Side conveyor, oversize- Standard

Side conveyor, mid.size- Standard

Side conveyor, undersize- Standard


Optional Equipment

Working lights- Included

Remote control for tracking- Included

  • Enables the remote control of following functions: moving forward/reverse (tracks). Can also be paired with cord.

Hydraulic power take off (PTO)- Included

  • Auxiliary hydraulic Power Take Off (PTO) with quick couplings for example to pair additional stacking conveyor.



Color- Metso beige

Safety labels- ANSI



Lang. for electronic manual- English

Quantity of printed manuals- 2





On-Site Start-up, Training and Warranty Commissioning

         RB Scott will supply a field service technician to complete startup
