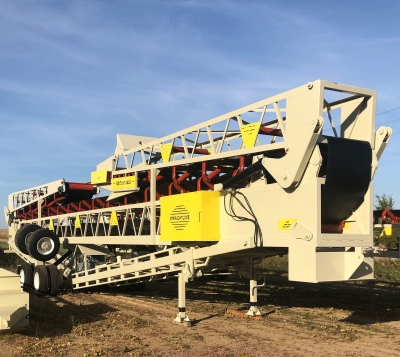

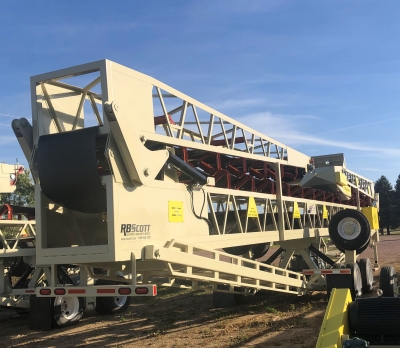

Straightline 42x125 Portable Radial Stacking Conveyor Unit #1347

SN: #SN 421250223780

Equipment on Order:

Equipment As Follows:

Frame: Tail section 4 x 4 x 5/16 chord angles, 2 x 2 x 1/4 angle lattice, Mid & Head section 4 x 4 x ¼ chord angles, 2 x 2 x ¼ angle lattice members with 5 x 3 x 5/16 angle for bottom extra cord
15Hp electrical hydraulic power unit
Hydra-fold on head and tail section
Hydraulic adjustable height undercarriage
SLI Fold Down series axle
(4) 385/65R-22.5 tires on out rigger
(4) 2hp Planetary drives for radial travel
Tandem Axle with – (8) 11.00R /22.5 tires
Air Brake package, light package, Mud Flaps
24” x 44” Drive pulley with 3/8” lagging – 4 7/16” shaft
16” x 44” Head pulley - 3-15/16” shaft
24” x 44” Wrap pulley - 3-15/16” shaft
16” x 44” Tail wing pulley – 3-15/16” shaft
CEMA C – Troughing idlers 5” rollers on 4’ centers
CEMA C - Return idlers 5” rollers on 10’ centers
Gear Reducer: Master PT size 8 with backstop
Motor: 60hp 1800 230/460/3ph
Electrical: Switch gear with 60hp and 15hp starter with 100ft extra cord
Bearings: Dodge S2000
980TPH / 350FPM
Take-ups: Top Angle
Conveyor belt: 42”- 3 ply 3/16 x 1/16” cover
Vulcanized belt splice
5’ receiving hopper with extra idlers at load point
Holland heavy duty landing gear
Fifth wheel hitch and tow eye
Pivot plate
Belt Cleaner: By Superior
Guarding: Tail pulley and V-belts
Sandblasted: Frame
(1) Coat primer urethane (1) Coat finished urethane

On-Site Start-up, Training and Warranty Commissioning
