McLanahan 36x27 Fine Material Double Screw Washer Unit #1350

SN: #20232068

Equipment As Follows:

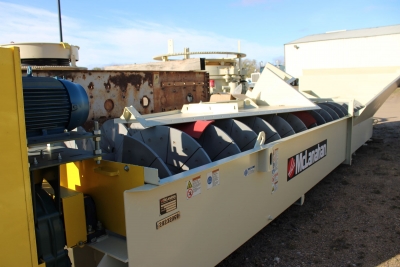

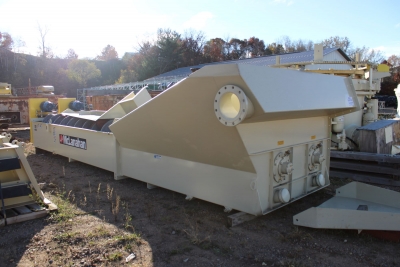

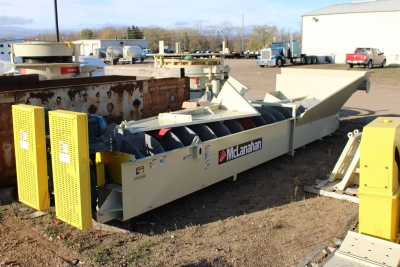

One (1) McLanahan 36” x 27’Fine Material Double Screw Washer weighing approximately 18,590 lbs, complete with:

· Fabricated steel Washer Box, ribbed and flanged for stiffness and rigidity

· Adjustable overflow weirs on sides and end

· Removable baffle plate in front of pool area

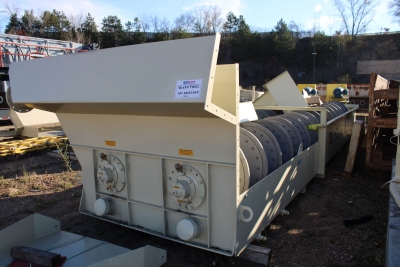

· Rising current water manifold inlets beneath the pool area

· Extra heavy steel pipe shaft(s) flanged at both ends

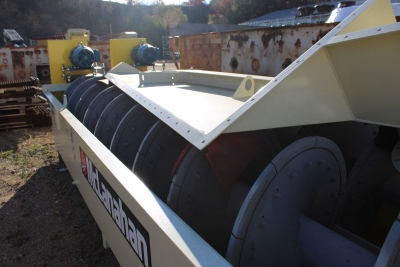

· Spiral steel screw flights welded to shafts

· Renewable hard white iron wearing shoes bolted to screw flights

· Twin Seal Pak bearing package unit(s) at feed end

· Self-aligning, anti-friction roller bearing(s) at discharge end

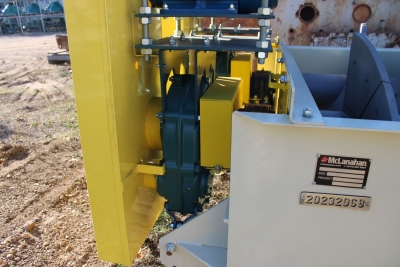

· Shaft mounted reducer gearbox(es)

· Adjustable motor bases, motor sheaves, V-belts and drive guards

· Excluding motors and motor controls

· Bolt on product discharge chute

· Standard supports are product end only

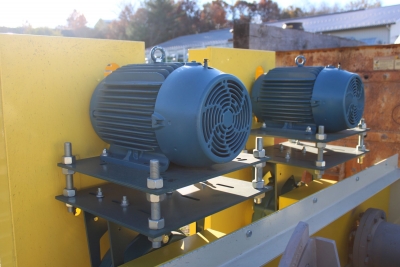

· (2) 15HP, 230/460 volt, 3-phase, 60Hz, High torque, NEMA-B design TEFC electric Motor
