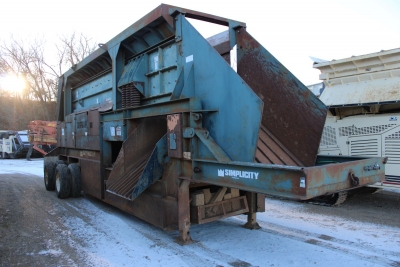

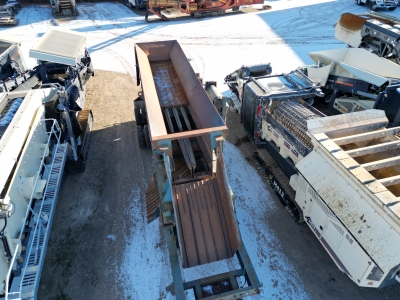

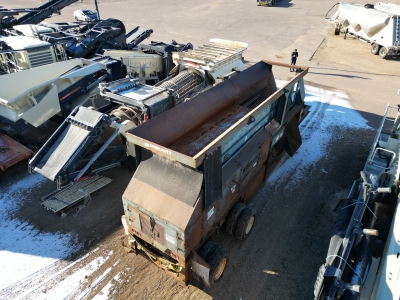

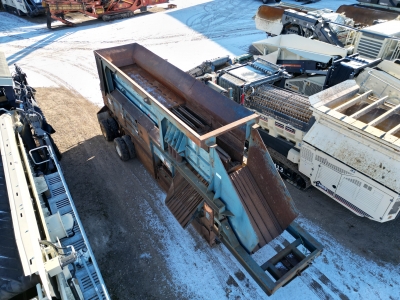

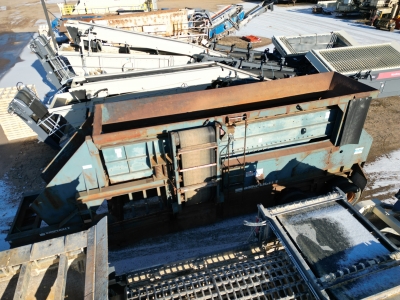

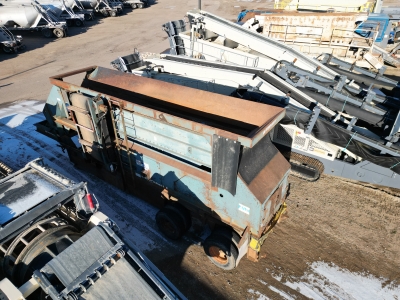

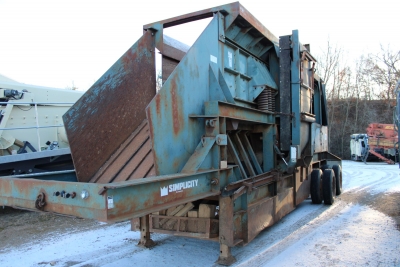

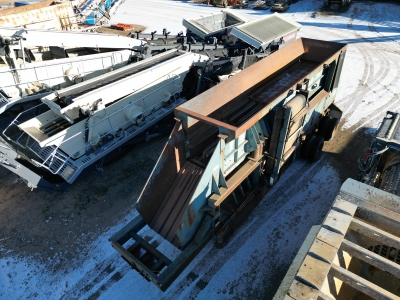

Used Simplicity 45x24 Rip-Rap Plant Unit #1394

SN: #R452OF14OD5677

Equipment As Follows:

New Rugged Design Features

· Incorporates Simplicity Engineering’s best selling 45” Grizzly feeder

· Twin shafted mechanism with totally self contained oil lubrication

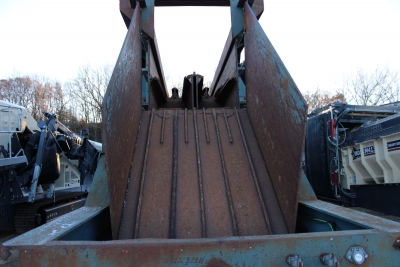

· Two 5’ step grizzly deck

· Replaceable abrasion resistant liners on all impact areas

· Side discharge chutes or conveyors for transfer of materials

· Heavy duty variable speed hydraulic drive to accelerate production

· Handles up to 36” materials consistently


· Complete with two five foot Grizzly sections

· Abrasion resistant steel replaceable liners

· Heavy duty feed hopper


· Two axles with eight 11-22.5 radial tires on 10 hole Budd wheels

· Heavy-duty wide flange main frame beams

· Two crank-down leveling legs (hydraulic optional)

· Four welded support legs

· Air controlled brakes with emergency and service glad hands

· Mud flaps

· Travel lights with turn and directional control signals

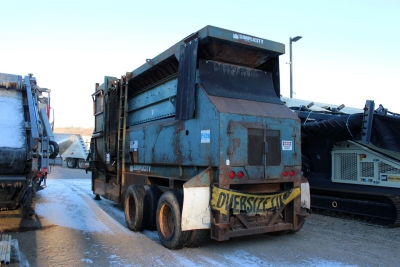

Oversize Discharge chute

· Discharge oversizing material to the kingpin end of the center

Primary Grizzly Thru-material Conveyor(optional)

· 36” 4-ply belt design

· Hydraulic folding

Primary Grizzly Thru-Material Chute

· Discharge Grizzly thrus to the underside of the carrier

· ½” steel plate construction

· 4’ discharge height

Secondary Grizzly Thru-Material chute

· Discharge Grizzly thrus to the underside of the carrier

· 1/2” steel plate construction

· 4’ discharge height

Safety Guards

· We install v-belt drive guards. Customer will be responsible for meeting local requirement
