Straightline 36x70 Stackable Transfer Conveyor System Unit #1412

SN: #36700424844,45,46

On Lease

ON LEASE

Equipment As Follows:

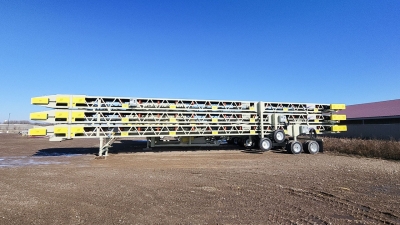

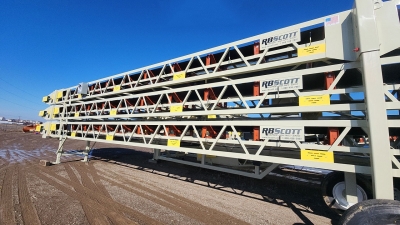

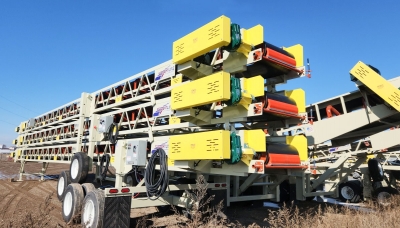

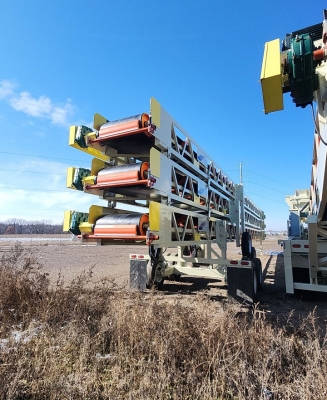

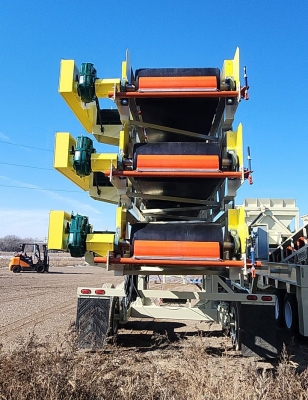

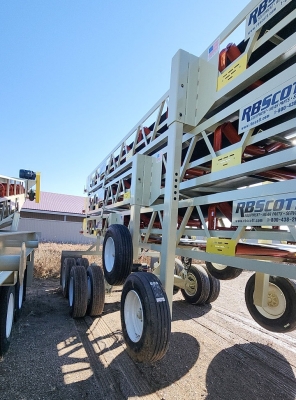

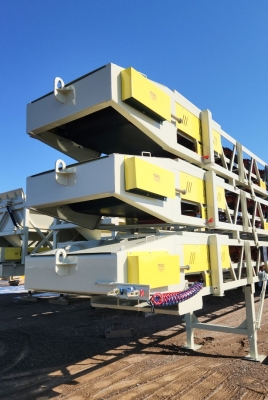

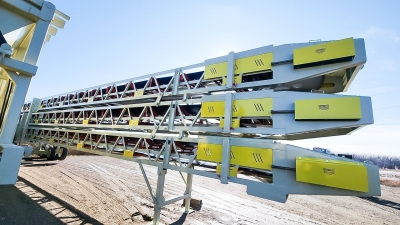

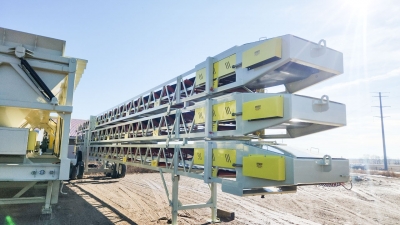

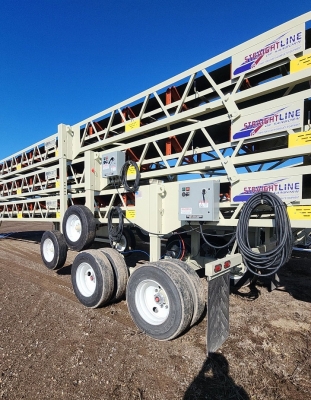

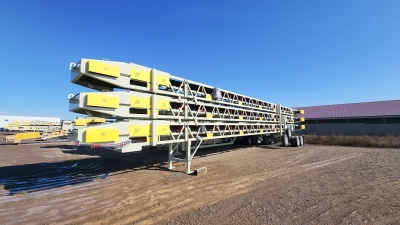

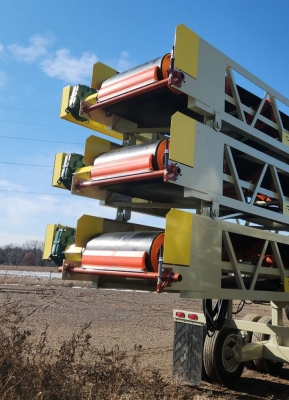

Two are designed to ride piggy back on the top of third conveyor for over road transport

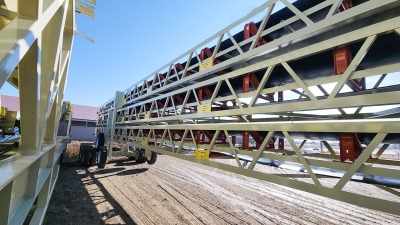

· Frame on top & middle conveyors: 4 x 4 x 5/16” Chords with 2 x 2 x 1/4” Lattice members – with 3 x 3 x 3/16” angle recessed in frame for troughing idlers

· Frame on transport conveyor 4 x 4 x 5/16” Chords with 2 x 2 x 1/4” Lattice members – with 3 x 3 x 3/16 angle recessed in frame for troughing idlers

· Truss: 30” Deep

· SLI V-style adjustable height under carriage – manual pin adjustment – up to 18 degrees

· Axle: Single with swivel plates for radial travel – 8 bolt hubs - single 11.00-22.5 tires (on top and middle conveyors)

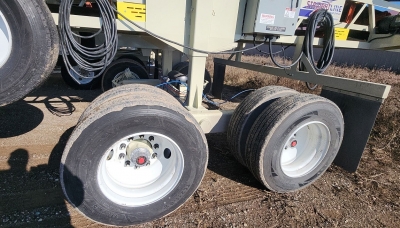

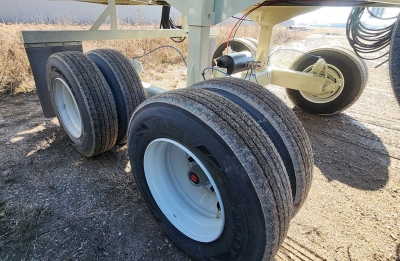

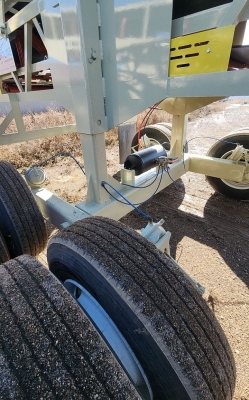

· Axle: Tandem with swivel plates for radial travel – 10 bolt hubs – (8) 11.00-22.5R tires (on transport conveyor)

· Air brakes and light package on transport conveyor

· Head pulley: 16” x 38” C.F. – 3/8” H.B. lagging – 3 7/16” shaft

· Tail pulley: 14” x 38” Wing style – 2-15/16” shaft

· Troughing idlers: CEMA C – 5” rollers on 4’ centers

· Return idlers: CEMA C – 5” rollers on 10’ centers

· Return idler nip guards

· Gear Reducer: Dodge size 5 with backstop

· Motor: 20HP 1800 230/460/3ph Toshiba

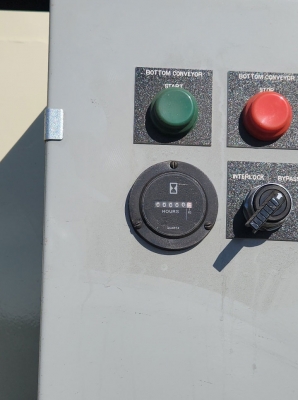

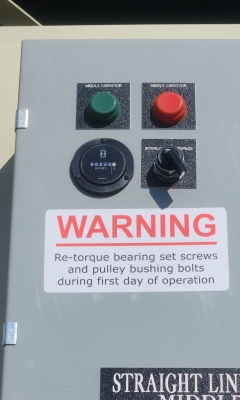

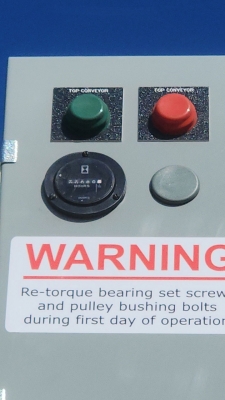

· Electrical switch gear / Inter locking

· Electrical cord hooks on one side

· Bearings: Dodge

· Take-ups: Dodge wide slot

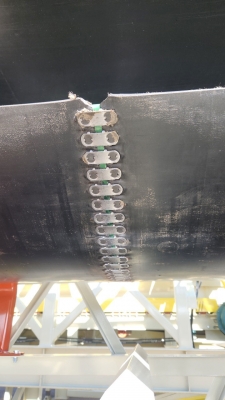

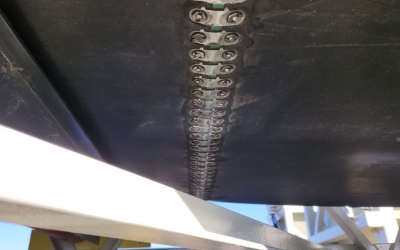

· Conveyor belt: 36”- 3 ply 3/1 cover

· 350FPM / 550TPH

· Belt scraper: By Superior

· 5’ Radial receiving hopper with extra idlers at load point

· Hitch: Fifth wheel and tow eye (on transport conveyor)

· Guarding: Tail pulley and V-belts

· Sandblasted: Frame (1) Coat urethane primer (1) Coat finished urethane
