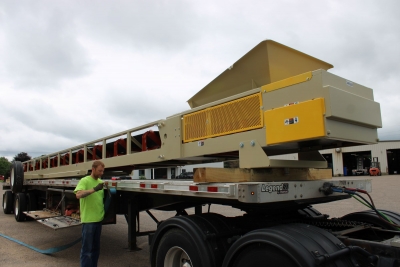

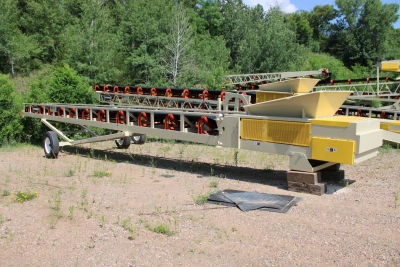

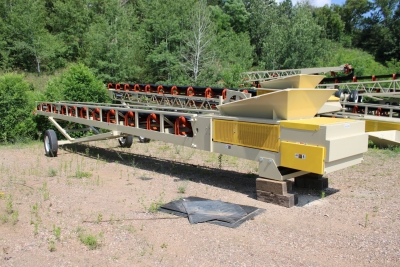

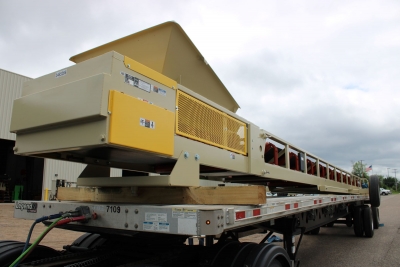

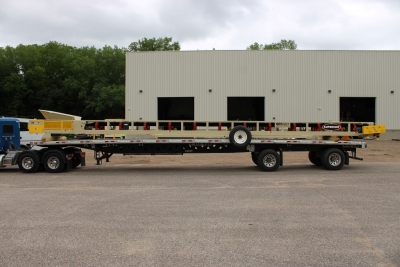

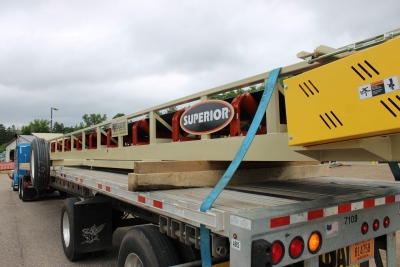

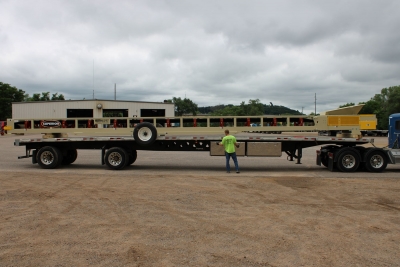

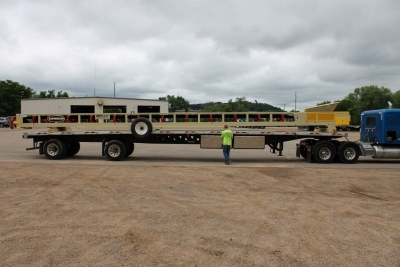

Superior 36x55 Stackable Plus with Bend Conveyor Unit #1549

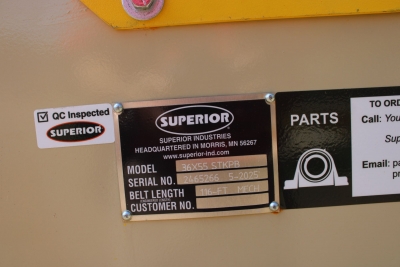

SN: #2465266
Equipment As Follows:Conveyor Frame
Main Frame-8" channel
Uprights-4" channel
Top Chord-4" x 2" tubing
Containerized-not included

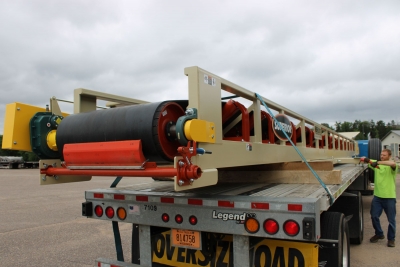

Drive Specifications
Drive-Class I head drive
Gear Reducer-Shaft Mount
Backstop-installed in reducer
Motor-20 HP TEFC
V-Belt Drive-with drive guard
Capacity-750 STPH of 100 PCF material, 25° surcharge (90% fines, 10% spherical lumps, 6" minus)
Belt Speed-400 fpm
Drive Pulley-14" diameter, 3/8" herringbone lagged drum
Tail Pulley-12" diameter, CEMA Chevron® wing
Shafts-Turned and Polished
Bearings-Included
Take-up-Screw type
Portability
Conveyor Splice-one piece frame
Support-not included
Tail Support-not included
Stackable Plus-included

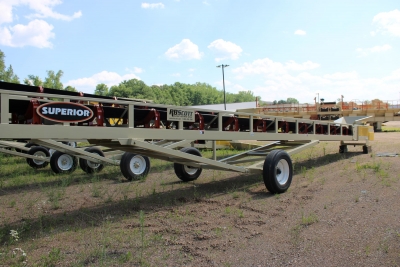

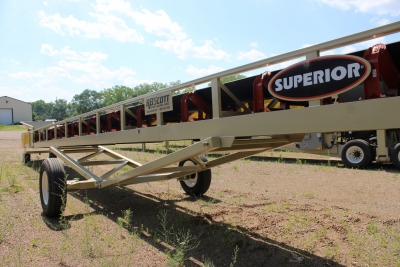

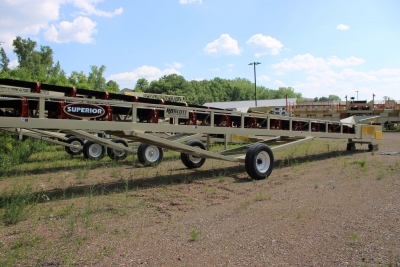

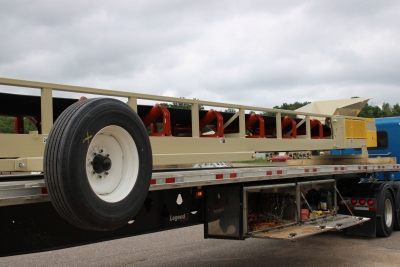

Undercarriage-adjustable height with single swiveling 11R x 22.5 wheels & tires, 11'6" discharge height
Mounting Tabs-weld on undercarriage tabs
Anchor Pivot Plate-not included
Bend Option-9’ horizontal hinged tail, 19° incline, belt hold down wheels, live shaft return roller, flat carriers in load area
5th Wheel Hitch-Included, bolt on design
Axle Jacks-not included
Conveyor Components
Belting-3-ply 3/16 x 1/16 330PIW
Belt Splice-Flexco mechanical steel fasteners
Scrapers-Superior Exterra® Primary Belt Scraper
Idlers-CEMA C, 5" dia. sealed for life ball bearings
Idler Seal-Superior Standard SpinGuard® Seal
Load Area-20° trough, steel rolls, 12-16" spacing
Trough-35° trough, steel rolls, on 4' spacing
Returns-flat steel rolls on 10' spacing

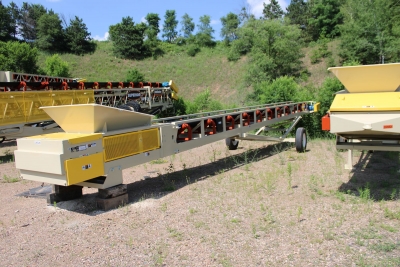

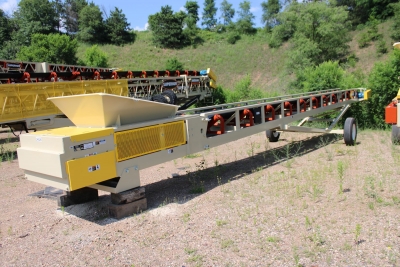

Radial Receiving Hopper-sloped, 5' long, bolt on design
Hopper Liner-not included
Gathering Trough-5' long with adjustable rubber flashing
Additional Specifications
Guarding-For drive and tail pulleys, v-belt drive and return idlers. Guards may not meet all local codes; customer is responsible to have guarding inspected
Voltage-480 V / 3 PH / 60 Hz - 1800RPM
Control Panel Plate-not included
Control Panel-control panel and wiring not included
Paint-1 coat primer, 1 coat finish enamel (*available colors below)
Guard Paint
Idler Paint-Powder coated Superior Orange
Owner's Manual-(1) copy in English included for operation and maintenance
Sign Plate-RB Scott sign plate installed
