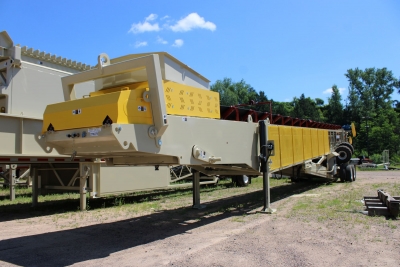

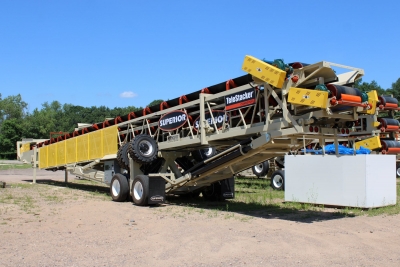

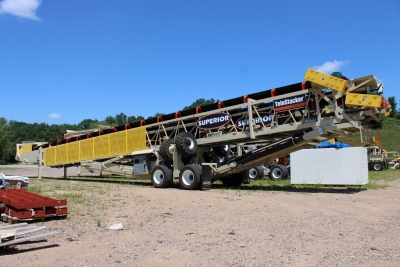

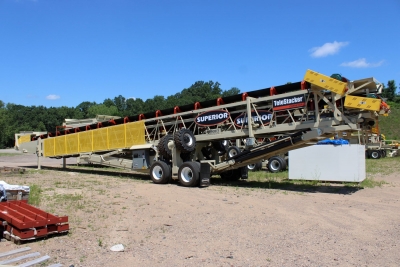

Superior 36x136 Low Profile Telestacker Unit #1553

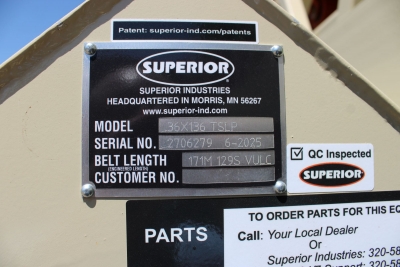

SN: #2706279
Equipment As Follows:
Conveyor Frame
Truss Design-Heavy-duty truss, designed for maximum strength / weight ratio
Main Conveyor-80' long with 52" deep truss
Stinger Conveyor-66' long with 36" deep truss
Extension-conveyor extends to 136' long with hydraulic cable winch
Safety Stop-mechanically stops retraction in the event of cable failure

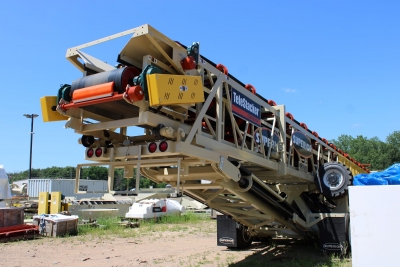

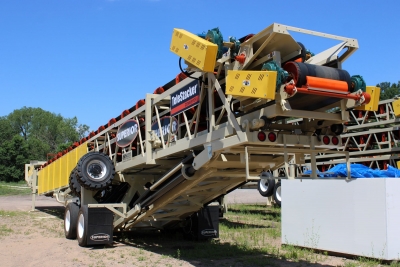

Drive Specifications

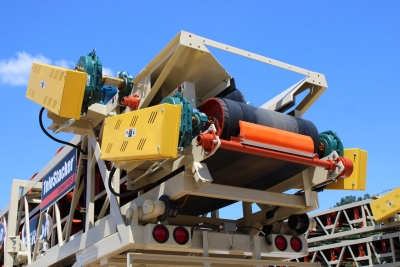

Drive-Class I head drive
Gear Reducers-Shaft Mount
Backstops-installed in reducers
Motors-40 / (2) 20 HP TEFC
V-Belt Drive-with drive guard
Capacity-1000 STPH of 100 PCF material, 25° surcharge (90% fines, 10% spherical lumps, 6" minus)
Belt Speed-450/650 fpm

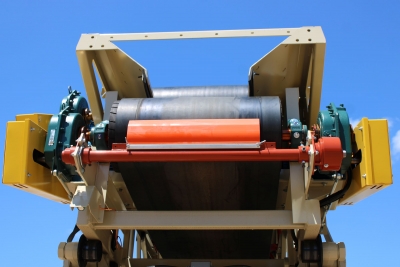

Drive Pulleys-16" diameter, 3/8" herringbone lagged drum
Tail Pulleys-14" diameter, CEMA Chevron® wing
Shafts-Turned and Polished
Bearings-Included
Take-ups-Screw type
Portability

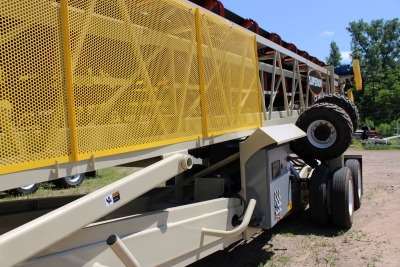

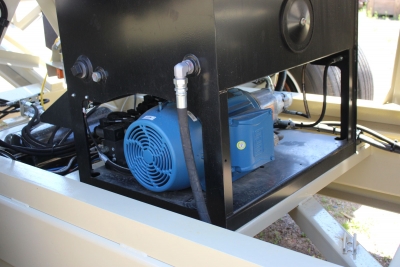

Undercarriage-Fully-Braced Undercarriage with hydraulic raise cylinders and covers. 15 HP power unit
Axle Type-FD 40 axle
Transport Axle-(8) 11R-22.5 tires, tandem walking beam. 11'11" travel width
Tag Axle-not included
Axle Jacks-not applicable
Compensation Linkage-slip-joint, for raising and lowered of conveyor with wheels in radial position

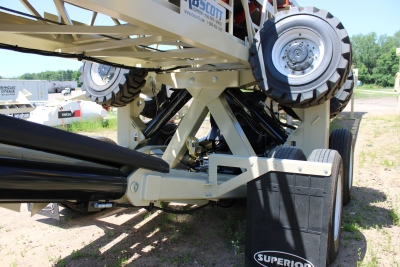

Radial Axle-(4) 385/65D-19.5 tires on hydraulic outriggers, 18'5" stacking width
Radial Travel-4 wheel drive with hydraulic driven planetary on each wheel
Fifth Wheel-included
Anchor Pivot-secures tail end during radial travel
Brakes-complete air brake package
Lights-brake and directional signals
Mud Flaps-installed behind transport wheels

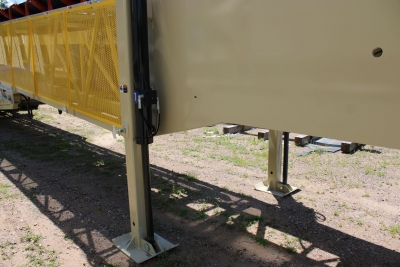

Landing Gear-hydraulic adjustable with control valve and Honda power unit
Towing Eye-adjustable, for pit transport
Conveyor Components
Belting-3-ply 3/16 x 1/16 330PIW
Belt Splice-Factory vulcanized belt splice
Scrapers-Superior Click Tensioning Exterra® Primary Belt Scraper on main and stinger
Superior Idlers-CEMA C, 5" dia. sealed for life ball bearings
Idler Seal-Superior Standard SpinGuard® Seal
Load Area (main conveyor)-Superior Seal System with 10" cartridges and steel rollers
Trough-35° trough, steel rolls, on 4' spacing
Returns-flat steel rolls on 8' spacing
Self-Aligning-Steel can troughing aligner on main / Superior Navigator® Trainer on stinger
V-Plow-Not included

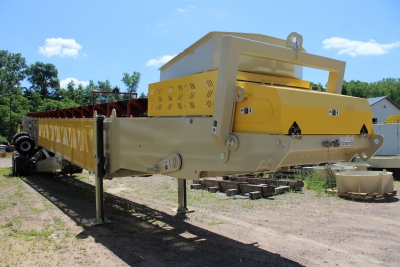

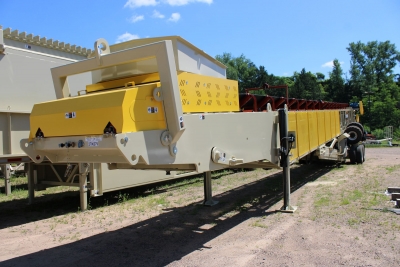

Radial Hopper -Rock Box style
Gathering Trough-6' long with adjustable rubber flashing
Controls
Control System-PilePro™ v14 automation - FD axle, power travel conveyor raise, and stinger extension controlled by PLC parameters or with panel mounted switches, includes Auto-Level
Remote HMI-not included
Slide-track-galvanized c-rail and steel wheels to deliver hydraulic hoses and electrical cords to stinger
Material Flow Switch-SonicScout™ ultrasonic sensor, stops power travel when belt is empty
Wireless Remote-not included
Zero Speed Sensor-not included

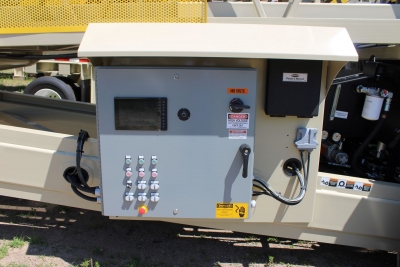

Electrical-Enclosure with main disconnect, circuit breaker, and starters with on/of push buttons to control each electric motor and function
Voltage-480 V / 3 PH / 60 Hz - 1800RPM
Guarding
Guarding-For drive and tail pulleys, v-belt drive and return idlers. Guards may not meet all local codes; customer is responsible to have guarding inspected
Paint-Superior Class I - 1 coat primer, 1 coat finish enamel (*available colors below)
Guard Paint
Idler Paint-Powder coated Superior Orange
Patents-Unit includes patents
Owner's Manual-(1) copy in English included for operation and maintenance
Shipping Mode International-Standard domestic shipping-
