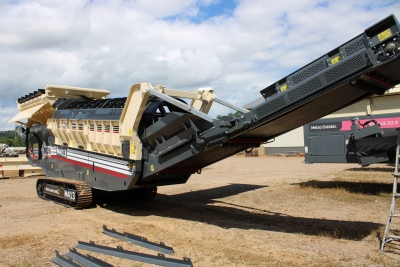

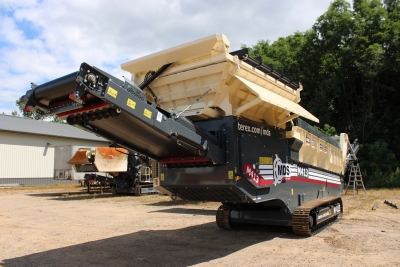

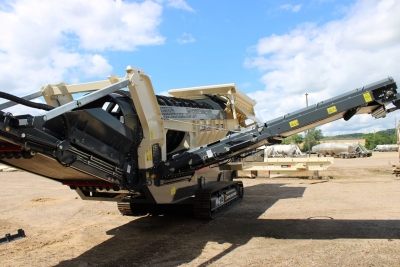

MDS M413 Mobile Trommel Unit #1563
SN: #TRXMD413ECKS79741
Equipment As Follows:

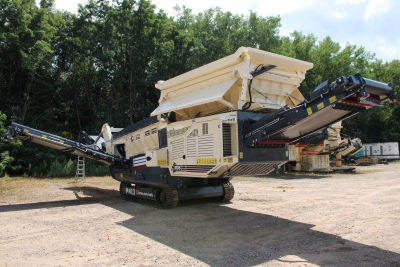

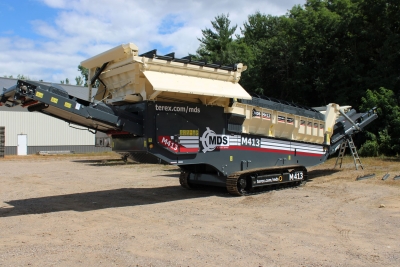

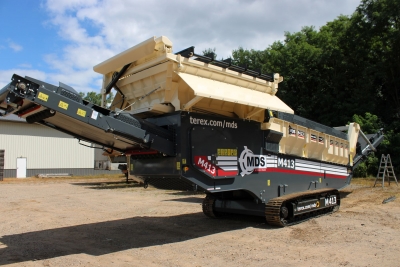

The M413 Track Trommel is perfect for cleaning dirty material and can handle rocks up to 600mm (24”) in size. It comes complete with fold out stockpiling conveyors and is ideal for moving around the quarry and from one site to another.
M1413
Fines - 4" replaceable panels to allow repair or replacement of individual sections
Mid-Product - 12" replaceable panels to allow repair or replacement of individual sections
Tipping Grid - 18"
Hopper and Feeder
Feed hopper capacity – 5.23yd3
Reciprocating Push Feeder
Hopper Extensions - Folding hopper extensions
Transport Dimensions
Transport Dimension (L x W x H) – 43’-11" x 8'-5” x 12'- 10" (tipping grid & chassis riser)
Working Dimension (L x W x H) – 55’-2" x 22'-0” x 11'- 5"
Weight with Chassis Riser
Unit with Grid – 57,997 lbs.

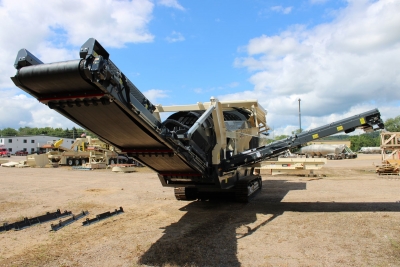

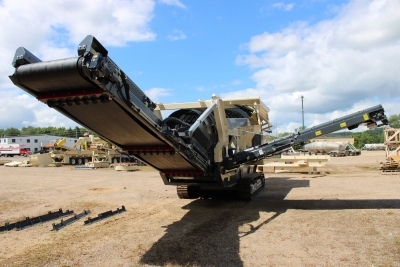

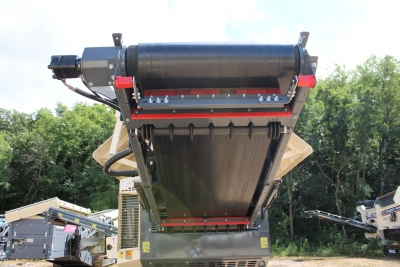

Conveyors
Fines Conveyor
- 3’-3” wide
- Discharge height 6’-6”
Mid Product Conveyor
- 4’-5” wide
- Discharge height 6’-6”
Oversize Conveyor
- 3’-3” wide
- Wide tough flex belt
- Discharge height 6’-8”

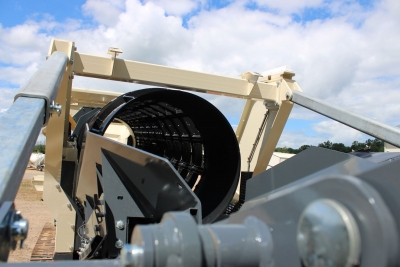

Drum
Diameter – 4’1”
Length – 13’1”
Incline – 5 degrees
Power Unit
Engine - CAT 2.2 55kW (73.76HP) Diesel Engine. Tier 4 Final/STAGE 5 Dual Certified
Electrical Control System
Heating- Hydraulic oil heater included
Hydraulic Oil & Lubrication
Standard - ISO Grade 46
Optional - Grade 68 (hot climates)

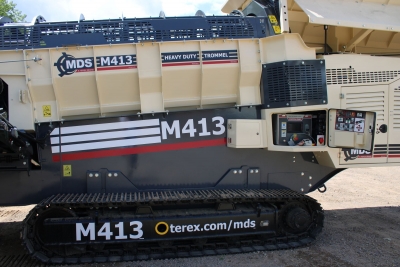

Chassis & Tracks
Heavy track undercarriage
Chassis Riser - Included
Control operation of tracks - via handheld-set with connection lead or wireless remote control
Telematics
T-Link Telemetry System fitted c/w 3 years Satellite and GSM data subscription, bundled deal with ancillary services
Paint
MDS standard Colors – Cream & grey
