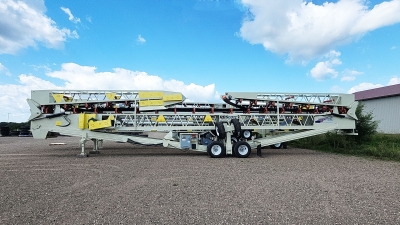

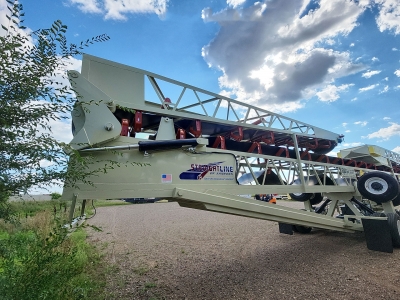

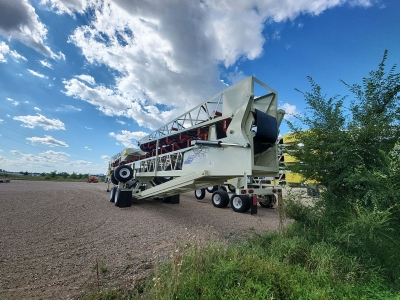

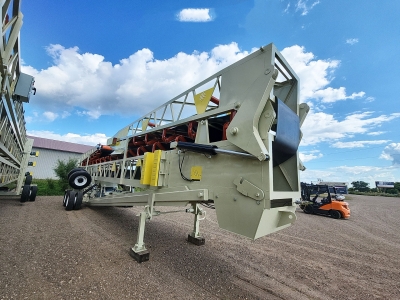

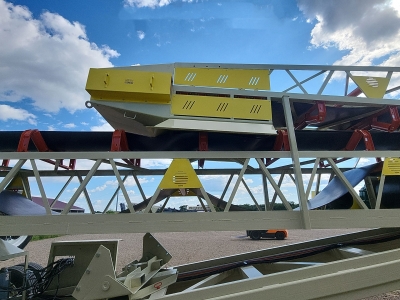

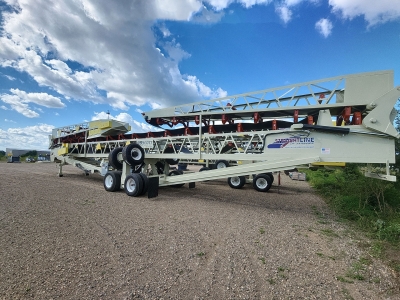

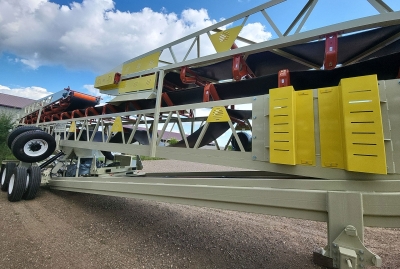

Straightline 36x125 PRSC Unit #1557

SN: #361251224899

Equipment As Follows:

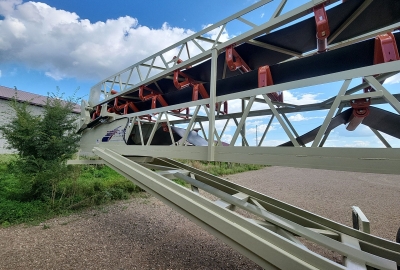

Conveyor Frame

• Tail Section Cords - 4x4x5/16" Angle Iron
• Main Frame Cord - 4x4x5/16" Angle Iron
• Head Section Cords - 4x4x5/16" Angle Iron
• Lattices - 2x2x1/4" Angle Iron
• Extra Chord - 5x3x1/4" Angle Iron

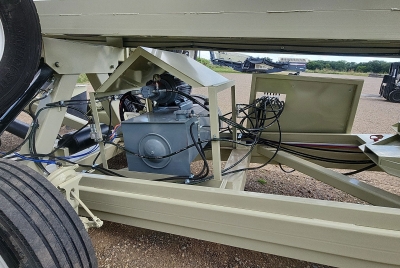

Drive Specifications

• Single Drive with Wrap Pulley
• Size 7 - Master PT Shaft Mount Reducer - with Backstop
• 50HP Motor - 1800 rpm - 230/460/3ph Toshiba
• V Belt Drives with Guard
• Conveyor Capacity - 750TPH
• Belt Speed - 400 FPM

Pulleys

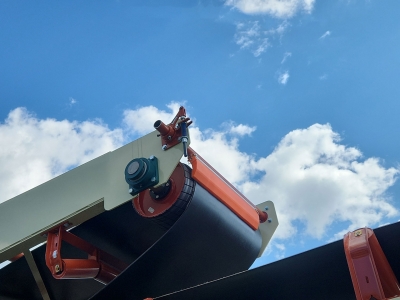

• Head Pulley - 16" x 38" Pulley - 3 7/16" Shaft
• Tail Pulley - 16" x 38" Wing Pulley - 3 7/16" Shaft
• Drive Pulley - 24" x 38"
• Drive Pulley with Ceramic Lagging - 3 15/16" Shaft
• Wrap Pulley - 20" x 38" Wing Pulley - 3 7/16" Shaft

Idlers

• CEMA C - Troughing Idlers - 5" Rollers @ 4' Centers
• CEMA C - Return Idlers - 5" Rollers @ 10' Centers

Bearings

• Dodge S2000

Take-Ups

• Top Angle Mount

Electrical

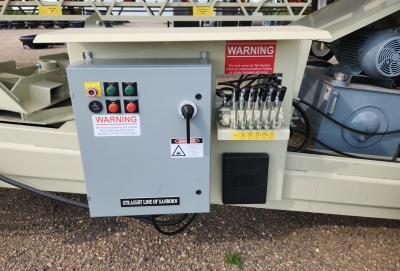

• Panel – Included
• Cord from Panel to Motor + 100' of Extra Cord
• Cord Wrap Hooks

Belting

• 36" - 3 ply 3/16" x 1/16" Cover
• Flexco 140 Belt Splice

Conveyor Specifications

• Hydraulic Power Fold Head & Tail

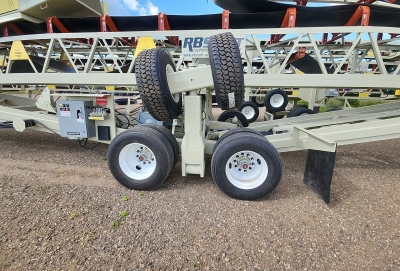

• Hydraulic Fold Down Radial Axles - 4WD
• Hydraulic Raise
• Air Brake Package, Light Package, Mud Flaps – Included

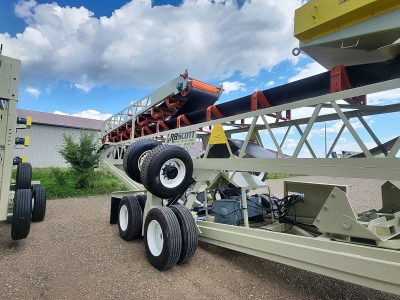

• Tandem Main Axle - (8) 11.00R/22.5 Tires
• Heavy Duty Landing Jacks
• Fifth Wheel Hitch with Toe Ear
• Pivot Plate
• Belt Cleaner - Superior Exterra

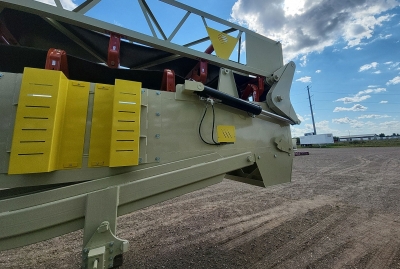

• Tail Pulley, Hopper, and Return Guards
• Sandblasted Frame
• (1) Coat Primer Urethane (1) Coat Finish Urethane
