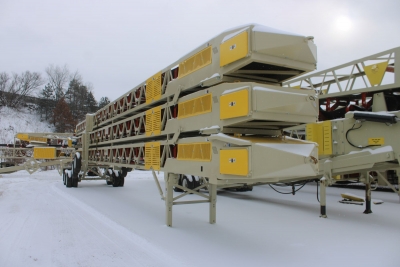

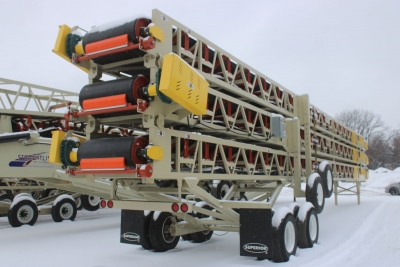

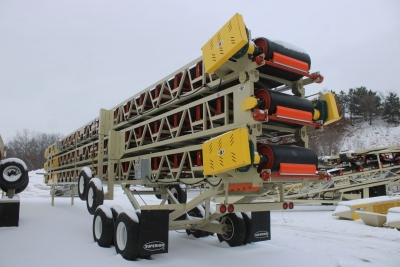

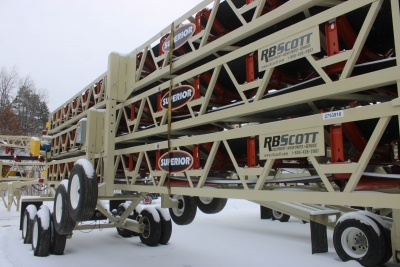

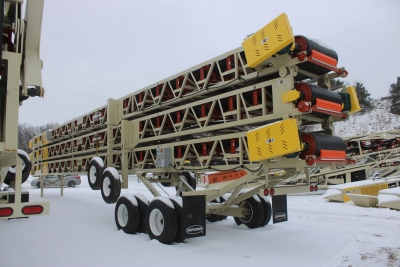

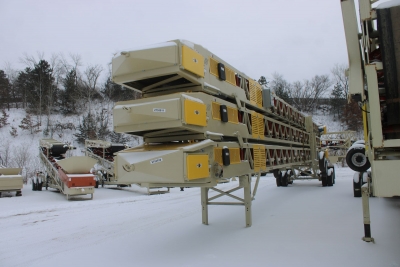

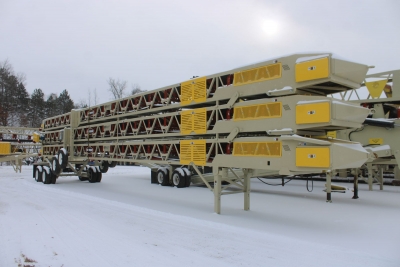

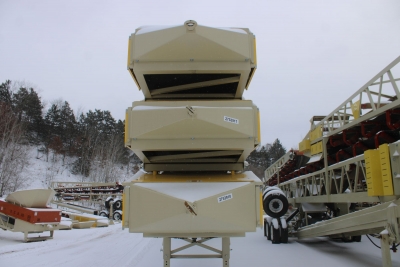

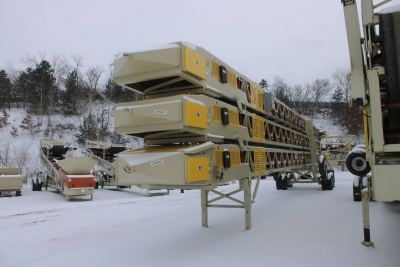

Superior 42x70 Slide-Pac Conveyor System Unit 1576
SN: #2753910, 911, 912
Equipment As Follows:
Conveyor Frame - No top cross lattices
Trailer Unit (TRL)

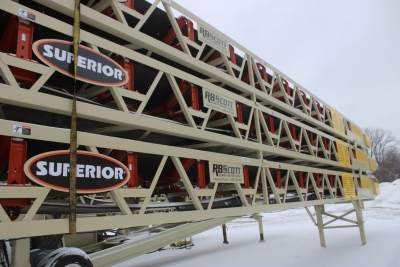

Main Frame - 30" deep truss
Top Chord Angles - 4" x 3" x 3/8"
Bottom Chord Angles - 4" x 4" x 5/16"
Lattice Members - 2" x 2" x 3/16"
Middle unit (TRL) and
Top unit (TOP)
Main Frame - 30" deep truss
Top Chord Angles - 4" x 3" x 3/8"
Bottom Chord Angles - 4" x 4" x 5/16"
Lattice Members - 2" x 2" x 3/16"
Roller Assembly - Single set on head end for easy loading and unloading
Drive Specifications
Drives - Class I head drive
Gear Reducers - Shaft Mount
Backstops - installed in reducer
Motors - 30 HP TEFC
V-Belt Drive - with drive guard
Capacity - 1200 STPH of 100 PCF material, 25° surcharge (90% fines, 10% spherical lumps, 6" minus)
Belt Speed - 400 fpm
Drive Pulley - 18" diameter, 3/8" herringbone lagged drum
Tail Pulley - 14" diameter, CEMA Chevron® wing
Shafts - Turned and Polished
Bearings - Included
Take-up - Screw type
Portability
Conveyor Splice - one piece frame
Towing Eye - pintle hitch type
Trailer Unit (TRL)

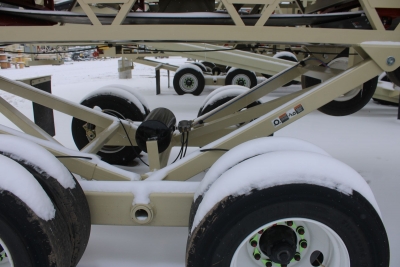

TRL V type axle – 10’ 6" adjustable discharge height, walking beam axle, non-swiveling dual 11R-22.5 wheels and tires
Support Legs - Adjustable height folding legs
Fifth wheels - Fifth wheel hitch
Brakes - complete air brake package
Lights - brake and directional signals

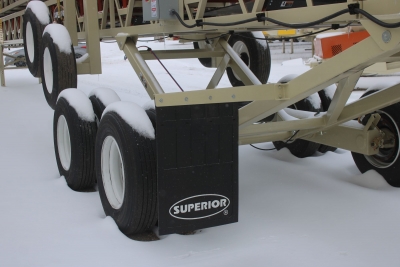

Mud Flaps - installed behind transport wheels
Middle Unit (MID)

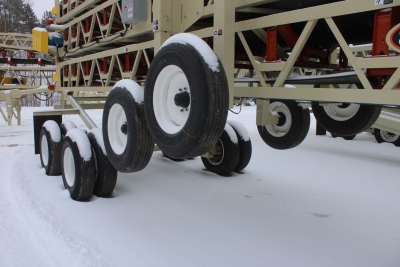

MID Strut Axle - 10’ 6" adjustable discharge height, non-swiveling single 11R-22.5 Ag wheels and tires
Top Unit (TOP)
TOP Strut Axle - 12' 3" adjustable discharge height, non-swiveling single 11R-22.5 Ag wheels and tires
Fold down legs - Fixed height legs for Mid and Top Unit
Conveyor Components
Belting - 3-ply 3/16 x 1/16 330PIW
Belt Splice - Flexco mechanical steel fasteners

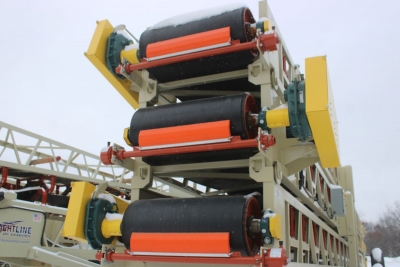

Scrapers - Superior Click Tensioning Exterra® Primary Belt Scraper
Idlers - CEMA C, 5" dia. sealed for life ball bearings
Mounting - Recessed inside frame
Idler Seal - Superior Standard SpinGuard® Seal
Load Area - 20° trough, steel rolls, 12-16" spacing
Trough - 35° trough, steel rolls, on 4' spacing
Returns - flat steel rolls on 12' spacing
Skirting Extension - 5' long, 10" high, hinged, with 1" round bar for material shelf
Gathering Trough - 5' long with adjustable rubber flashing
Additional Specifications

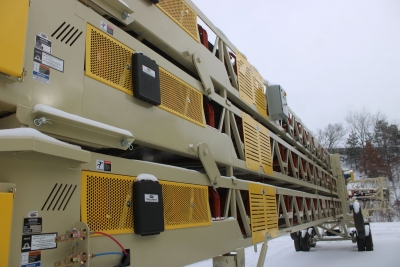

Guarding - For drive and tail pulleys, v-belt drive and return idlers. Guards may not meet all local codes; customer is responsible to have guarding inspected
Voltage - 480 V / 3 PH / 60 Hz - 1800RPM
Cord Holders - not included
Control Panel Plate - bracket only for panel

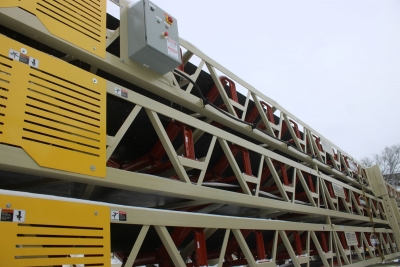

Control Panel -control panel and wiring included for on board motors
Control Voltage -24 DC
Paint -Superior Class I - 1 coat primer, 1 coat finish enamel – Superior Beige
Guard Paint - Yellow
Idler Paint - Powder coated Superior Orange
Hour Meter - Hour meter included in Control Panel
