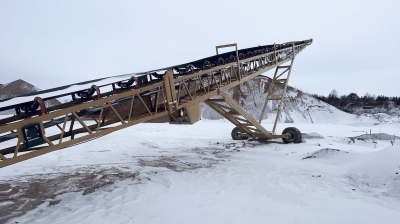

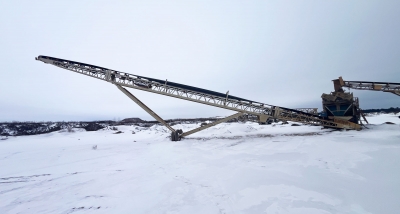

Used 2017 Superior 24x110 PRSC Unit #1582

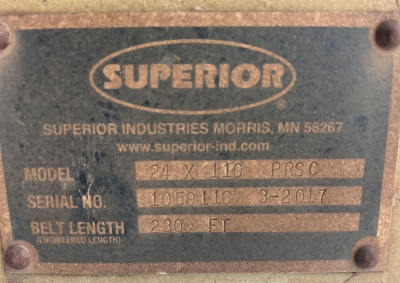

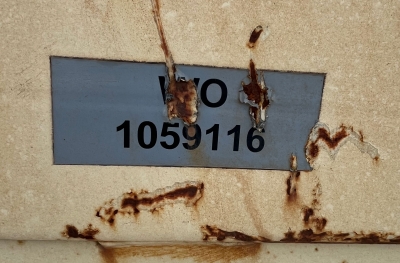

SN: #1059116

Equipment As Follows:

Conveyor Frame

• Main frame-36" deep truss
• Chord angles-4" x 3" x 1/4"
• Lattice members-1 3/4" x 1 3/4" x 3/16"
• Extra chord angle-Full length, from tail end to head end undercarriage pinning point

Drive specifications

• Drive-Class I head end
• Gear reducer-Dodge shaft mount
• Backstop-installed in reducer
• Motor-15 HP 1800 RPM TEFC
• V-belt drive-with drive guard
• Capacity-300 STPH of 100 PCF material, 25-degree surcharge (90% fines, 10% spherical lumps 4” minus)
• Belt speed-400 fpm

Superior pulleys

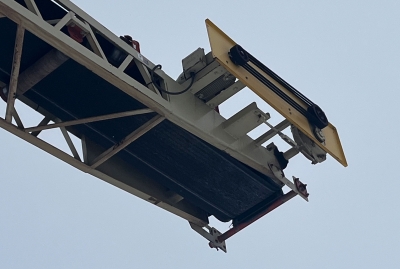

• Drive pulley-16” diameter, 3/8” herringbone lagged drum
• Tail pulley-14” diameter, MD Chevron® wing pulley
• Snub pulley-not included
• Head pulley-not applicable
• Shafts-Turned and polished
• Bearings-Dodge
• Take ups-Screw type

Portability

• Conveyor splice-manual top folding head and tail
• Undercarriage-Manual raise with pin lock adjustment
• Axle type-Fixed Width axle, not road portable

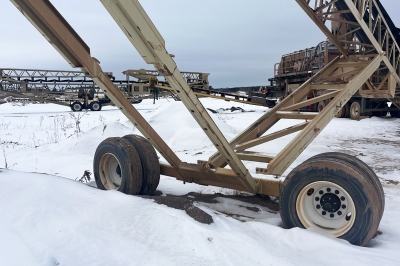

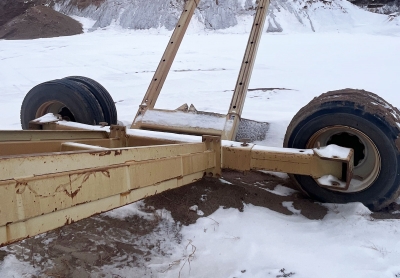

• Transport axle-Dual (4) 11-22.5 tires and wheels
• Radial axle-manual swivel boxes
• Radial travel-manual
• Fifth wheel-not included
• Anchor pivot-maintains tail end during radial travel
• Brakes-not included
• Lights-not included
• Mud flaps-not included
• Axle jacks-not included
• Landing gear-not included
• Towing eye-Pintle type hitch

Conveyor Components

• Belting -2-ply 1/8 x 1/16 220 PIW
• Belt splice -Flexco mechanical steel fasteners
• Scraper-not included
• Superior Idlers-CEMA B, 5” dia. rolls, sealed for life ball bearings
• Load area-20° trough, 12-16" spacing
• Trough-35° on 4' spacing
• Returns-steel rolls, on 10' spacing

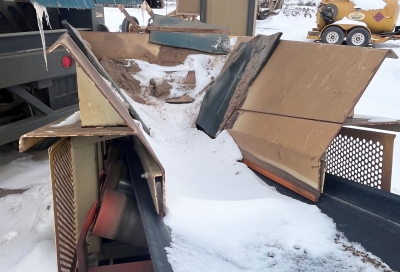

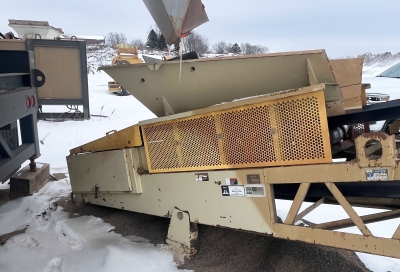

• Radial hopper-sloped, 5' long, bolt on design
• Gathering trough-5' long with adjustable rubber flashing

Additional Specifications

• Guarding-for drive and tail pulleys, v-belt drive and return idlers. Guards may not meet all local codes; customer is responsible to have guarding inspected.
• Voltage-480 v / 3 ph / 60 hz
• Electrical-Control panel and wiring not included
• Paint-1 coat primer, 1 coat finish enamel
• Idler Paint-powder coated Superior Orange
• Owner’s Manual-(1) copy in English included for operation and maintenance
