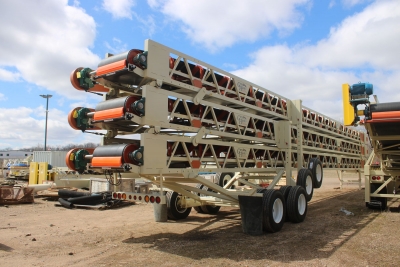

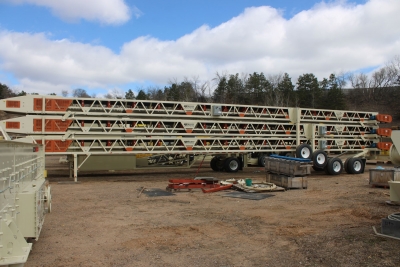

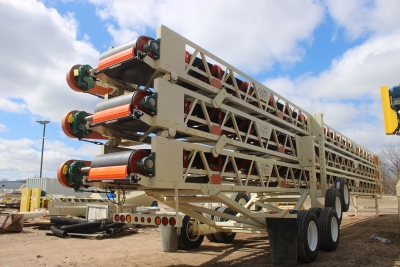

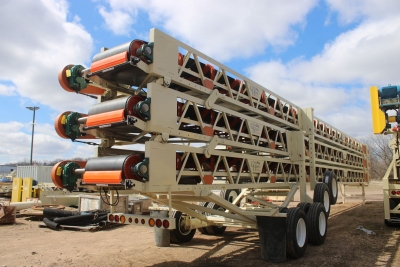

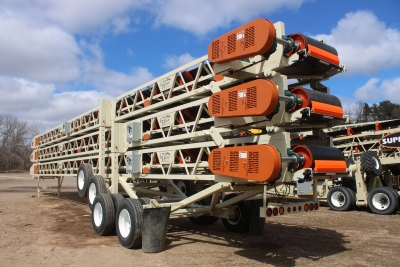

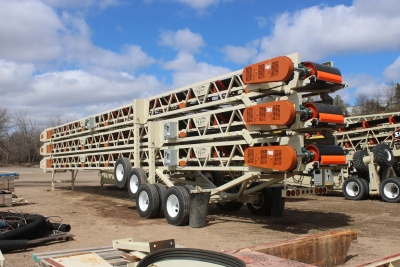

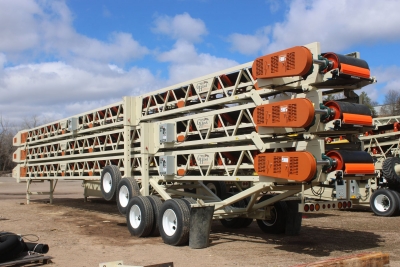

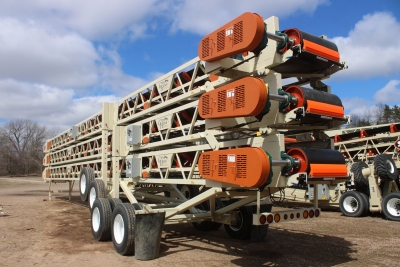

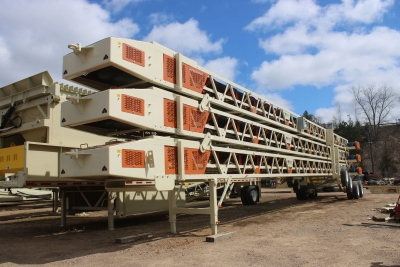

GreyHawk Portable 36x70 Roll-Off Transfer Conveyors Unit 1593
Equipment As Follows:
- CHASSIS
- Trailer Unit
- Mid/Top Units

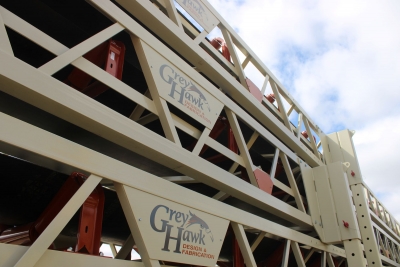

- 30” deep truss
- 4”x4” chord angles
- 2”x2” lattice members
- Fifth wheel hitch
- Tandem Axle (8) 11x22.5 radial tires
- Air brakes
- Kingpin support for transport
- Mud flaps
- Pintle hitch
- Light bar
- 30” deep truss
- 4”x4” chord angles
- 2”x2” lattice members
- Rollers
- Transport brackets
- Adjustable head supports for operation/travel
- Adjustable tail support tubes for operation/travel
- DRIVE SPECIFICATIONS
- Class I drive package
- Master PT #5 gearbox
- Backstop
- WEG 25HP/1800RPM motor
- 350FPM belt speed
- 750TPH (based on 100PCF)
- CONVEYOR COMPONENTS

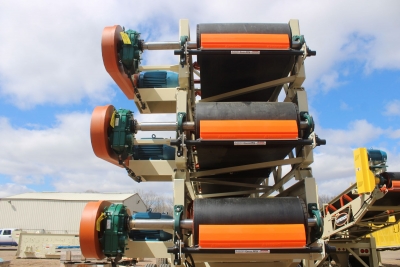

- Superior 16” head pulley
- Superior 14” wing pulley
- Superior CEMA C 5” top mount idlers
- Superior CEMA C 5” return idlers
- Fold up receiving hopper
- Dodge SCM pillow block bearings
- Screw type take-ups
- 3-ply 3/16 belting
- Mechanical splice
- Argonics scraper
- 20-degree trough in load zone
- 35-degree trough, 4’ spacing
- ELECTRICAL
- Power supply-480v/3-ph/60hz
- Control panel for each conveyor
- Wiring from the control panel to the corresponding motor included
- Cable holders
- SAFETY/GUARDING
- We install all standard guarding, customer will be responsible for compliance with local codes.
- GENERAL:
- Paint
- (2) sets of owners/parts manuals
- Sandblasted
- Two-part epoxy primer
- Two-part urethane topcoat
- Chassis Color-GH Beige
- Handrail/Guarding Color-GH Orange
- Decals-Orange & grey striping
