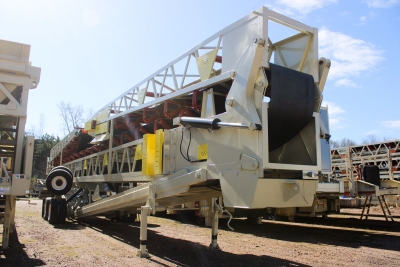

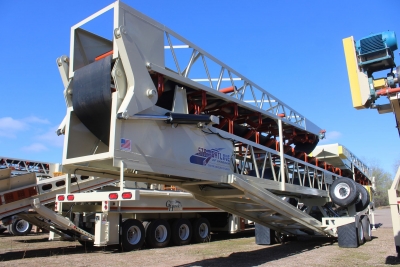

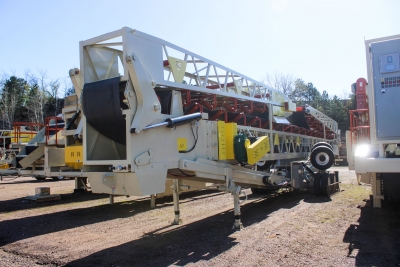

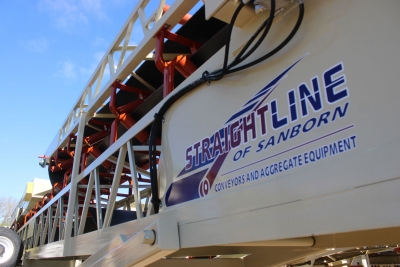

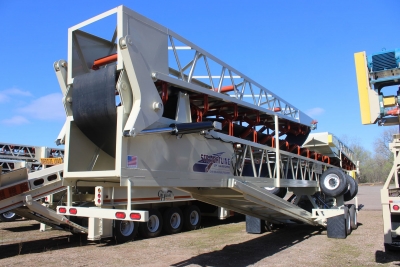

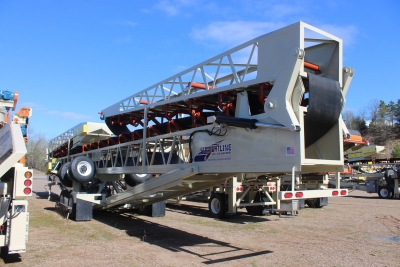

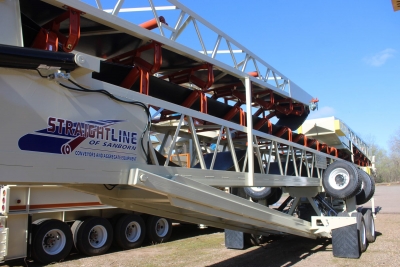

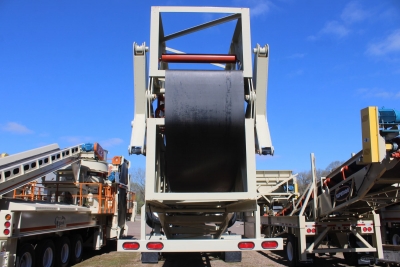

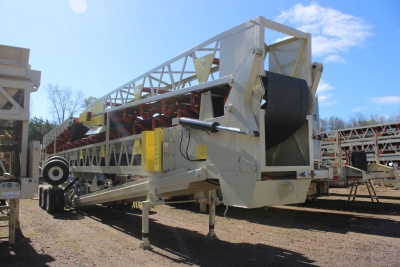

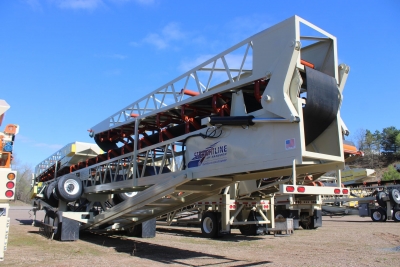

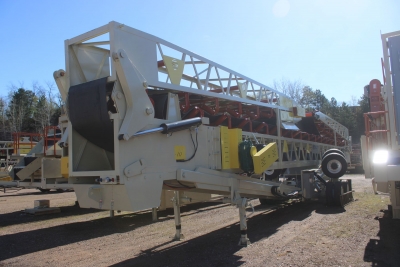

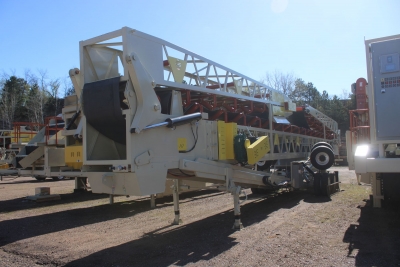

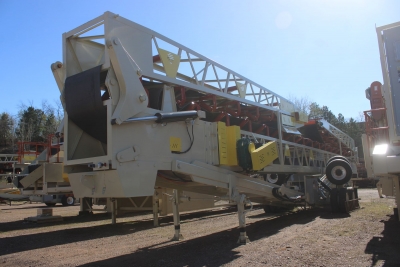

Straightline 36x137 Portable Radial Stacking Conveyor Unit #1586

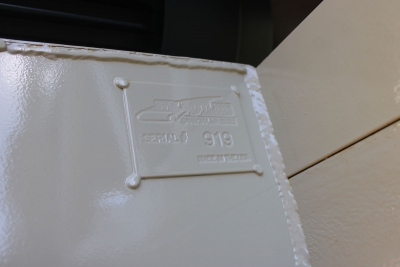

SN: #361370325919

Equipment As Follows:

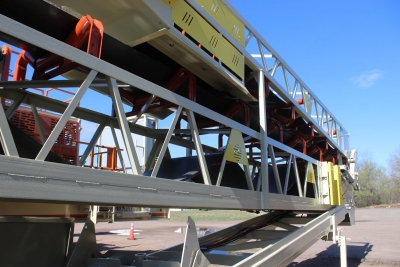

Conveyor Frame

• Tail Section Cords 4x4x5/16" Angle Iron
• Main Frame Cord 4x4x5/16" Angle Iron
• Head Section Cords 4x4x5/16" Angle Iron
• Lattices 2x2x1/4" Angle Iron
• Extra Cord 5x3x1/4" Angle Iron

Drive Specifications

• Single Drive with Wrap Pulley

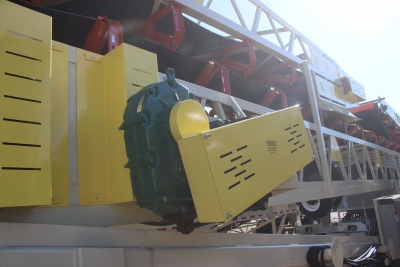

• Size 8 – Master PT Shaft Mount Reducer – with Backstop
• 60 HP Motor – 1800 RPM – 230/460/3ph Toshiba
• V-Belt Drives with Guard
• Conveyor Capacity – 1000 TPH
• Belt Speed – 400 FPM

Pulleys

• Head Pulley 16" x 38" Pulley - 3 7/16" Shaft
• Tail Pulley 16" x 38" Wing Pulley - 3 7/16" Shaft
• Drive Pulley 24" x 38" Drive Pulley with Ceramic Lagging - 3 15/16" Shaft
• Wrap Pulley 20" x 38" Wing Pulley - 3 7/16" Shaft

Idlers

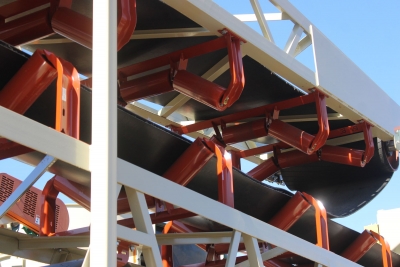

• CEMA C - Troughing Idlers - 5" Rollers @ 4' Centers
• CEMA C - Return Idlers - 5" Rollers @ 10' Centers

Bearings

• Dodge S2000

Take-Ups

• Top Angle Mount

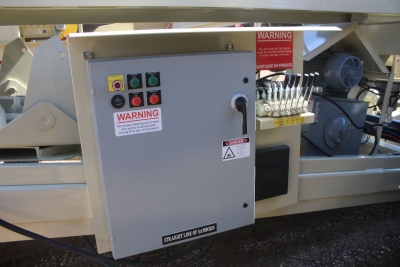

Electrical

• Panel
• 2/4 Cord from Panel to Motor + 100’ of Extra 2/4 Cord
• Cord Wrap Hooks

Belting

• 36" - 3 ply 3/16" x 1/16" Cover
• Flexco 140 Belt Splice

Conveyor Specifications

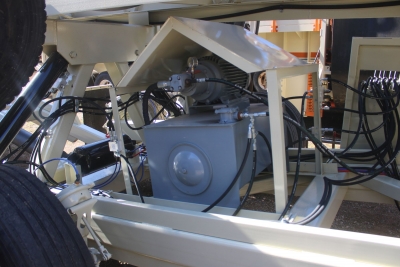

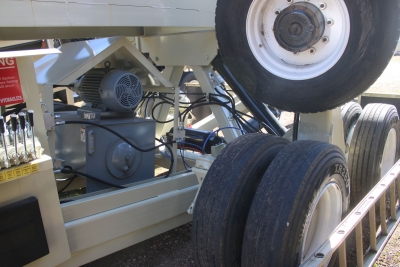

• Hydraulic Power Fold Head & Tail
• Hydraulic Fold Down Radial Axles - 4WD
• Hydraulic Raise
• Air Brake Package, Light Package, Mud Flaps

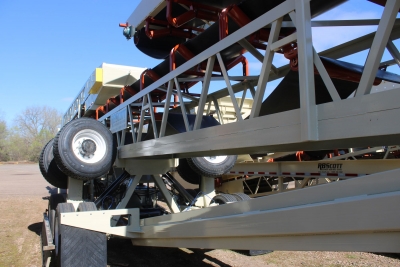

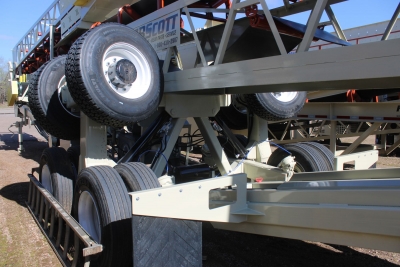

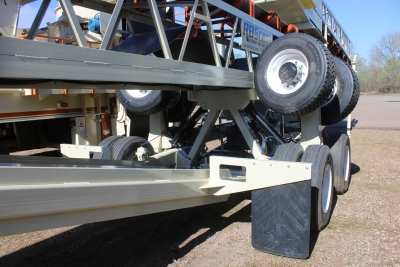

• Tandem Main Axle - (8) 11.00R/22.5 Tires
• Heavy Duty Landing Jacks
• Fifth Wheel Hitch with Toe Ear
• Pivot Plate
• Belt Cleaner: Superior Exterra
• Tail Pulley, Hopper, and Return Guards
• Sandblasted Frame
• (1) Coat Primer Urethane (1) Coat Finish Urethane
