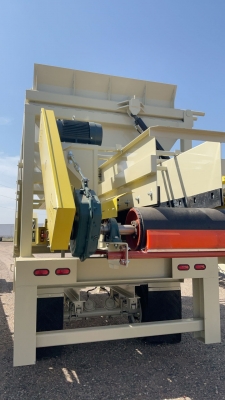

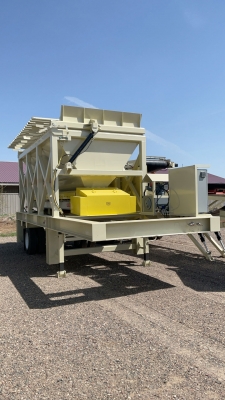

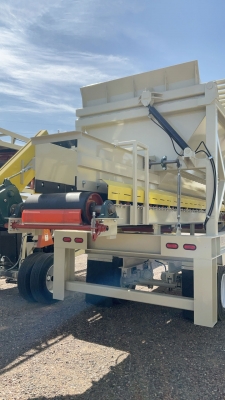

Straightline 8x16 Portable Bin Feeder Unit #1602

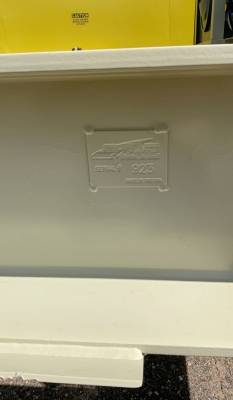

SN: #6x160325923

Equipment As Follows:

Chassis

• Main Frame W Beam
• Cribbing Legs W Beam
• Fifth Wheel Hitch
• Air Brakes, Lights, Mudflaps

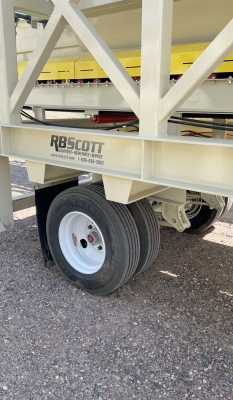

• (4) 11-22.5 Radial Tires – 10 Bolt Hub

Hopper

• 8’x16’ Fabricated out of ¼” Plate

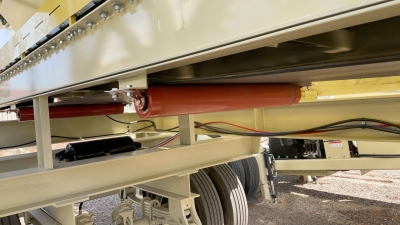

• Hydraulic Power Self Relieving Grizzly Top - 3" Bars - 6" Spacing
• Electrical Hydraulic Powered Unit - with Lodar Wireless Remote
• Breaker Beam Inside Bin
• Fold Down Side Curtains
• Canoe Rubber Flashing

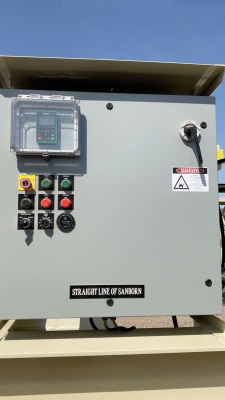

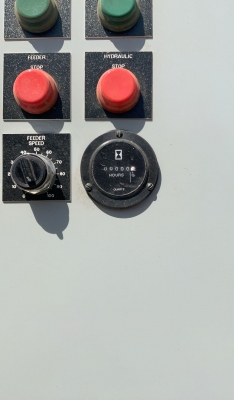

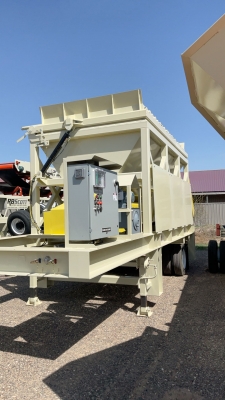

• Electrical Switchgear with 20HP VFD
• 3/8” AR400 Liner @ Wear Points in Bin

Removable Feed Conveyor Specifications

• 36" x 20' Feed Conveyor - C8 Channel

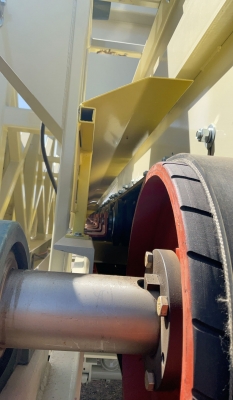

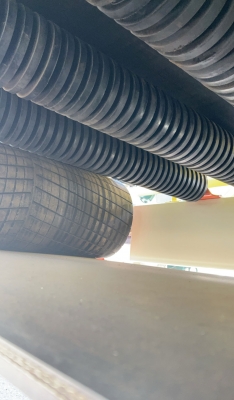

• 14" x 38" Head Drum Pulley - CF with 3/4" HB Lagging

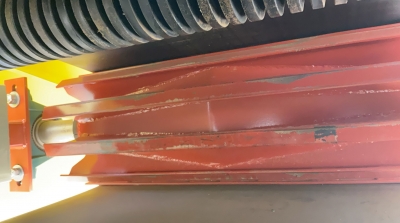

• 14" x 38" Tail Wing Pulley
• Cema C 5" Flat Impact Rollers
• 20HP Toshiba Motor - 1800RPM 230/460/3PH
• Gear Reducer: TA5 40:1
• Dodge Bearings
• 36" 3 Ply 330 1/4" x 1/16" Belting
• Belt Cleaner: Superior Exterra
• Tail Pulley, Hopper, and Return Guards
• Sandblasted Frame
• (1) Coat Primer Urethane (1) Coat Finish Urethane
