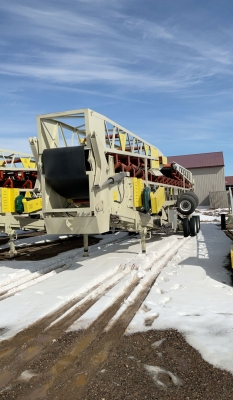

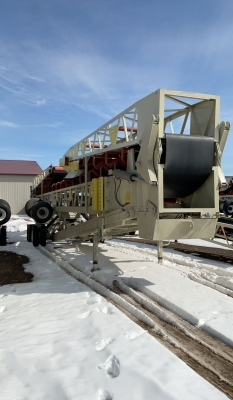

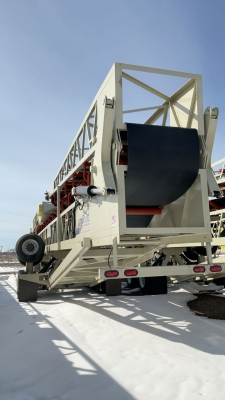

Straightline 42x125 PRSC Unit #1592

SN: #421250925949

Equipment As Follows:

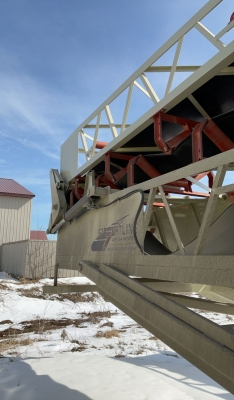

Conveyor Frame

• Tail Section Cords - 4x4x5/16" Angle Iron
• Main Frame Cord - 4x4x5/16" Angle Iron
• Head Section Cords - 4x4x5/16" Angle Iron
• Lattices - 2x2x1/4" Angle Iron
• Extra Cord - 5x3x1/4" Angle Iron

Drive Specifications

• Single Drive with Wrap Pulley
• Dodge TA II Shaft Mount Reducer – with Backstop

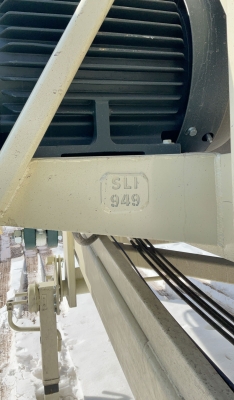

• 75HP Motor - 1800 RPM - 230/460/3ph Toshiba
• V Belt Drives with Guard
• Conveyor Capacity – 1200 TPH
• Belt Speed - 400 FPM

Pulleys

• Head Pulley - 16" x 44" Pulley - 3 7/16" Shaft
• Tail Pulley - 16" x 44" Wing Pulley - 3 7/16" Shaft
• Drive Pulley - 24" x 44" Drive Pulley with Ceramic Lagging - 4 7/16" Shaft
• Wrap Pulley - 20" x 44" Wing Pulley - 3 15/16" Shaft

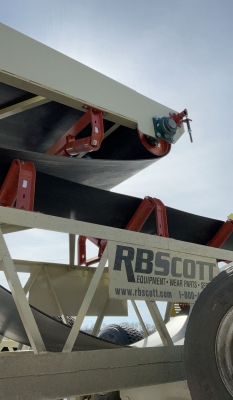

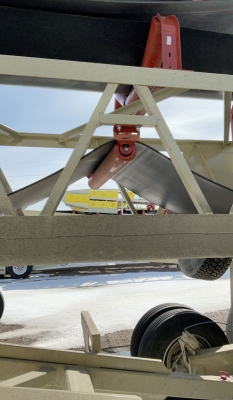

Idlers

• CEMA C - Troughing Idlers - 5" Rollers @ 4' Centers
• CEMA C - Return Idlers - 5" Rollers @ 10' Centers

Bearings

• Dodge S2000

Take-Ups

• Top Angle Mount

Electrical

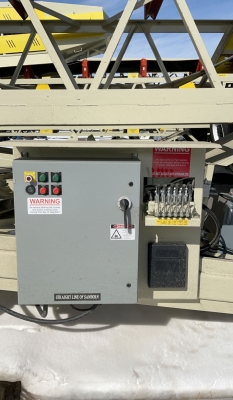

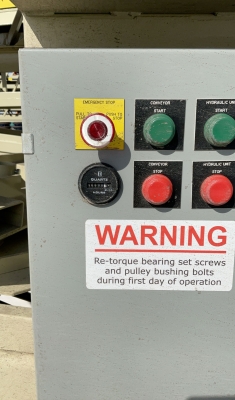

• Panel
• Cord from Panel to Motor + 200' of Extra Cord
• Cord Wrap Hooks

Belting

• 42" - 3 ply 3/16" x 1/16" Cover
• Flexco 140 Belt Splice

Conveyor Specifications

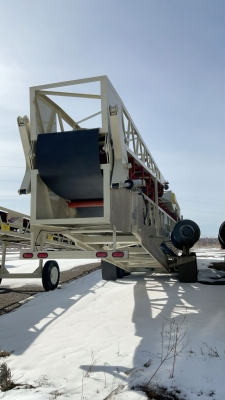

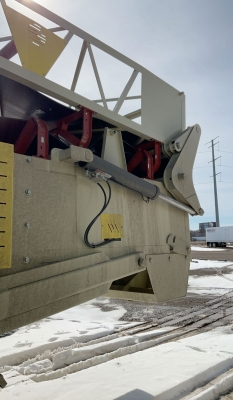

• Hydraulic Power Fold Head & Tail

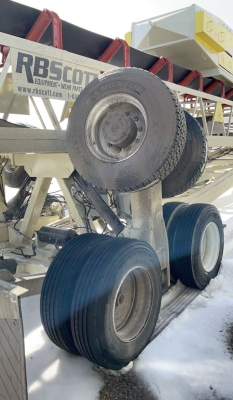

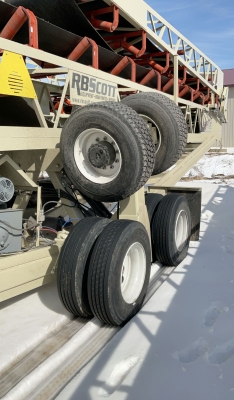

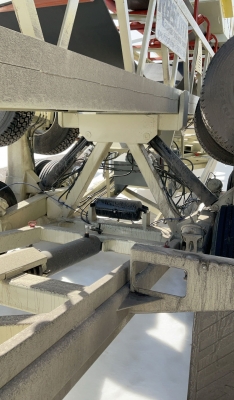

• Hydraulic Fold Down Radial Axles - 4WD
• Hydraulic Raise
• Air Brake Package, Light Package, Mud Flaps – Included
• Tandem Main Axle - (8) 11.00R/22.5 Tires
• Heavy Duty Landing Jacks
• Fifth Wheel Hitch with Toe Ear
• Pivot Plate
• Belt Cleaner - Superior Exterra

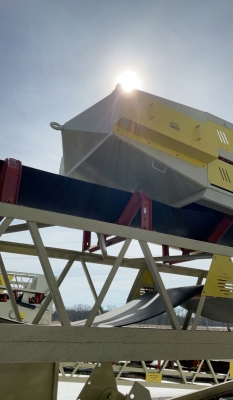

• Tail Pulley, Hopper, and Return Guards
• Sandblasted Frame
• (1) Coat Primer Urethane (1) Coat Finish Urethane
