Metso Nordberg HP450e Cone Crusher Unit #1631
SN: #HP450EMAC0113
Equipment as Follows:

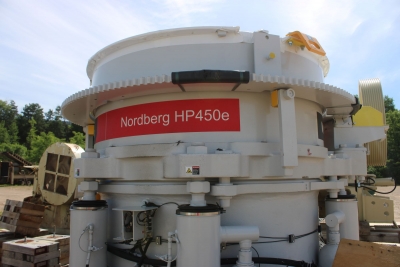

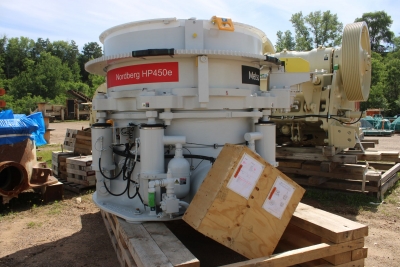

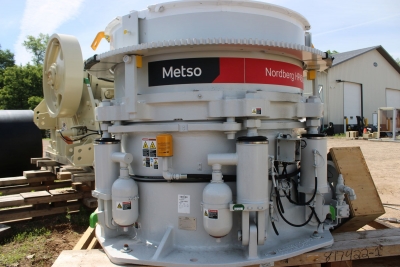

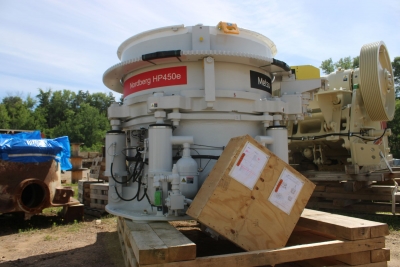

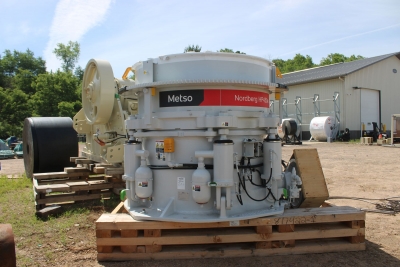

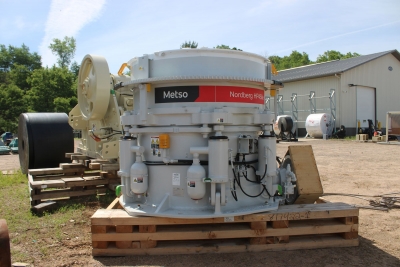

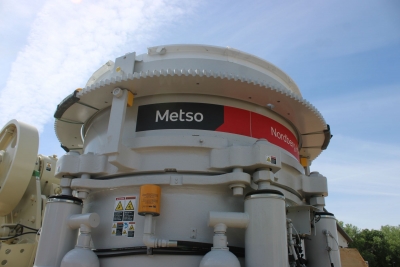

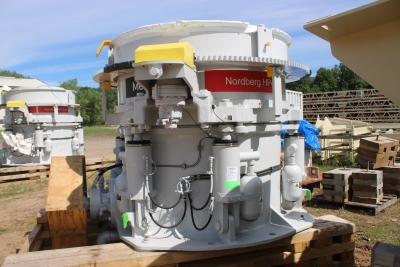

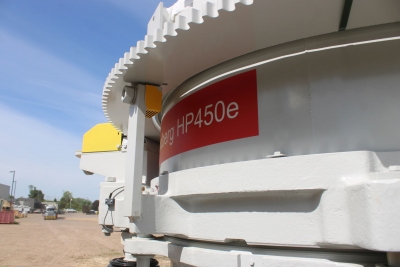

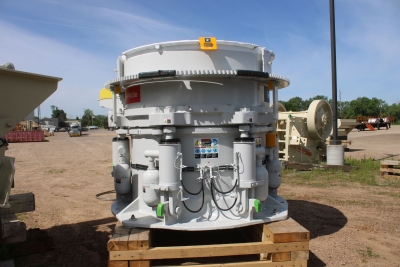

Metso Nordberg HP450e Cone Crusher
We are pleased to introduce the Nordberg HP450e, the newest and highest performance cone crusher in the new Nordberg HPe Series cone crusher offering. Through enhanced kinematics, crushing force, clamping force and 450 horsepower, the new 52” head HP450e provides significant gains in production capacity and improved particle shape over traditional cone crushers.
New features include an anti- spin brake mechanism, cavity sensor feed level monitoring, and no epoxy backing material required for the bowl liner and mantle.
The Nordberg HP450e is suitable for both secondary and tertiary crushing for portable and stationary installations. Equipped with manganese steel crushing members, bronze bearings and replaceable main frame seat liners. Features include hydraulic bowl clamping and adjustment, automatic tramp iron release and hydraulic clearing of the crusher chamber. Remote control station mounted to side of plant allows convenient operation for adjusting the closed side setting, or for clearing the crusher.
Additional HP cone features include a package lubrication system consisting of an internal independent pump, oil pressure switch, temperature switch, oil tank with strainer, oil level gauge, thermometers at three locations, (2) oil heater with control panel, oil filter and oil cooler (air-radiator type), and crusher tools.
Scope00
Industry - Construction
Lubrication Unit - Standard
Sub frame and guard - Not included
Crusher drive motor - Not included
Automation - Not included
Main Unit
Crusher kinematics - Enhanced kinematics
Main frame liner – Standard
Anti-spin device - Included
Hydraulic motor location - Right to countershaft
Cavity – Pricing includes a liner assembly kit
consisting of a bowl liner, mantle, & retaining hardware
Countershaft speed - 850 RPM
Site Specification
Accumulator certification - Standard
Minimum ambient temperature - Normal cond. down to -15°C/5°F
Maximum ambient temperature - Normal cond. up to 40°C/103°F
Frequency - 60 Hz
Lubrication unit voltage - 265/460V
Norm - UL
Power Transmission
Drive - Single drive
Motor position - Standard btw 8 and 4 o'clock
Grooves type - 8V
Crusher pulley - Included
Motor pulley - Not included
V-Belt - Not included
Rubber pads - Not included
Crusher installation kit - Not Included
Motor housing - IEC
Motor speed/ Pole number - 4 (1500rpm 50Hz/1800rpm 60Hz)
Crusher pulley size - 762 mm
Lub Unit
Control type - Digital
Connection hoses - Not included
Cooler location - On frame
Quantity of Cooler Motors - 1 EA
Cooling medium - Air
Catch tray - Not included
Offline filter - Not included
Tools and Options
Feed extension type - Not Included
Accumulator charging kit - Included
Feed cone lifter – Included
Blower - Included
Head screw hydr wrench - Not included
Serial number plate material - Aluminium
Color - Metso light grey
Certified drawings - Not Included
Quantity of printed manuals - 1
Quantity of spare part books - 1
TAG - Not Included
Lang. for electronic manual - English
Lang. for printed manuals - English
Electronic spare part book - Included
Quantity of spare part books - 1
Lang. for spare part books - English
