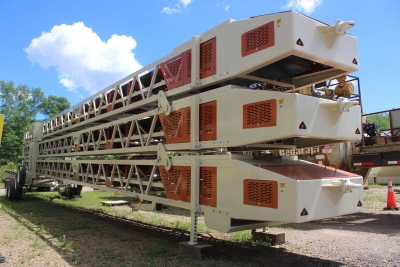

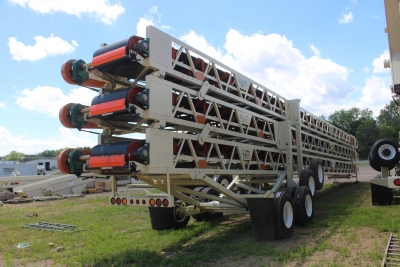

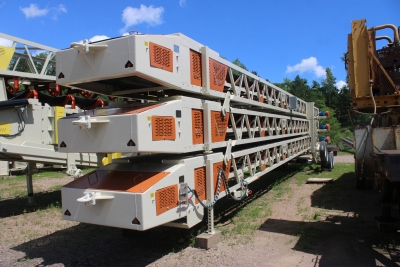

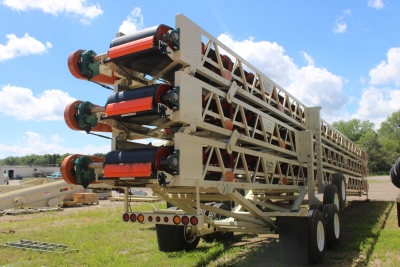

GreyHawk 36x70 Roll Off Transfer Conveyors

SN: #2051321

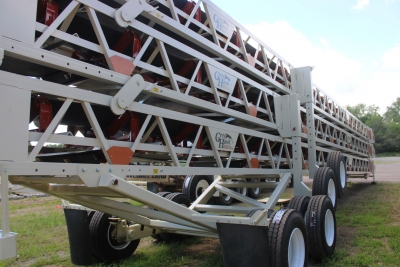

1. CHASSIS

• Trailer Unit
• Mid/Top Units

• 30” deep truss
• 4”x4” chord angles
• 2”x2” lattice members
• Fifth wheel hitch
• Tandem Axle (8) 11x22.5 radial tires
• Air brakes
• Kingpin support for transport
• Mud flaps
• Pintle hitch
• Light bar

• 30” deep truss
• 4”x4” chord angles
• 2”x2” lattice members
• Rollers
• Transport brackets
• Adjustable head supports for operation/travel
• Adjustable tail support tubes for operation/travel

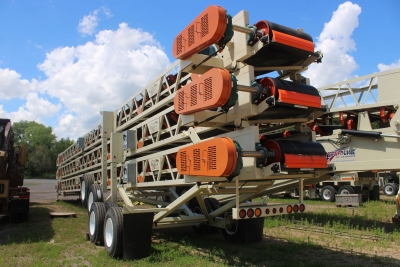

1. DRIVE SPECIFICATIONS

• Class I drive package
• Master PT #5 gearbox
• WEG 20HP/1800RPM motor
• 350FPM belt speed
• 750TPH (based on 100PCF)

1. CONVEYOR COMPONENTS

• Superior 16” head pulley
• Superior 14” wing pulley
• Superior CEMA C 5” top mount idlers
  • 20-degree trough in load zone
  • 35-degree trough, 4’ spacing
• Superior CEMA C 5” return idlers
• Fold up receiving hopper
• Dodge SCM pillow block bearings
• Screw type takeups
• 3-ply 3/16 belting
• Mechanical splice
• Argonics scraper

1. ELECTRICAL

• Power supply-480v/3-ph/60hz
• Control panel for each conveyor
• Wiring from the control panel to the corresponding motor included
• Cable holders

1. SAFETY/GUARDING

• We install all standard guarding, customer will be responsible for compliance with local codes.

1. GENERAL:

• Paint
  • Sandblasted
  • Chassis Color-GH Beige
  • Guarding Color-GH Orange
• (1) sets of owners/parts manuals
