Used Straight Line 36 x 70 Stackable Transfer Conveyors W/Roll Away Unloading System Unit #1598

SN: #36700325915, 916, 917

Equipment as Follows:

Specifications

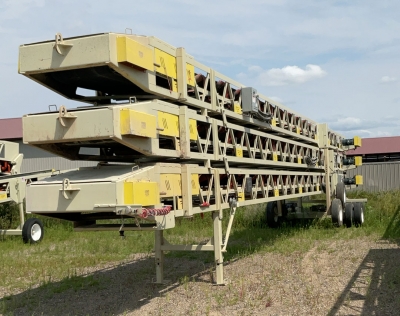

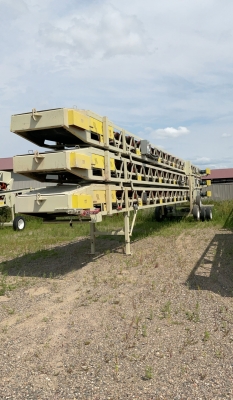

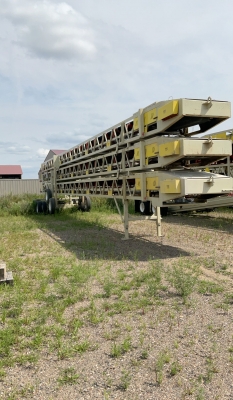

3 - 36 x 70' Transfer Conveyors - Designed to roll onto each other for one transportable system.
Frame: 4x4x5/16" Angle - 2x2x1/4" Lattice - 3x3x3/16" Idler Mount
30" Deep Truss
Manual Adjustable Height Transfer Undercarriages on Each
Axle (Top & Middle Conveyor): 8 Bolt Hubs - Single 11.00-22.5 Tires
Axle (Transport Conveyor): 10 Bolt Hubs - Dual 11.00-22.5 Tires
Head Pulley: 16" x 38" C.F. - 3/8" HB Lagging - 3 7/16" Shaft
Tail Pulley: 14" x 38" Wing Style - 2 15/16" Shaft
Troughing Idlers: CEMA C - 5" Rollers @ 4' Centers
Return Idlers: CEMA C - 5" Rollers @ 10' Centers + Nip Guards
Gear Reducer: Master PT Size 5 with Backstop
Motor: 20HP 1800 230/460/3PH Toshiba

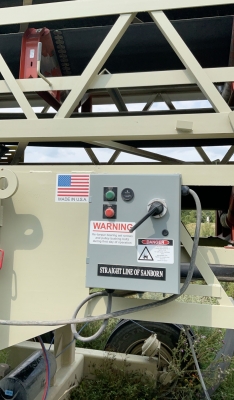

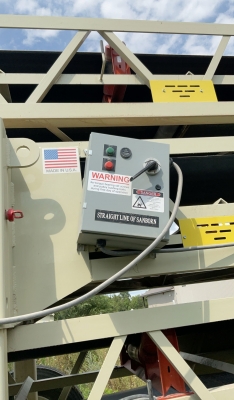

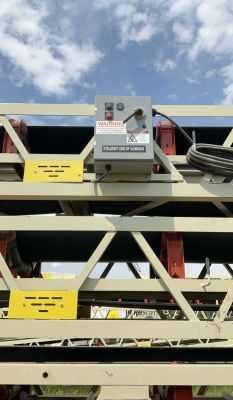

Electrical Switchgear/Cords from Panel to Motor Only/Not Interlocked
Bearings: Dodge 2 Bolt Pillow Blocks
Take-ups: Dodge Wide Slot
350FPM - 750TPH
5' Receiving Hopper with Foldable Flared Hopper Sides
Fifth Wheel Hitch + Tow Hook on each Conveyor
Light Bar & Brakes Package
Conveyor Belt 36" 3 Ply - 3/16" x 1/16" Cover

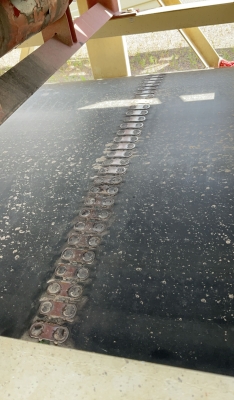

Belt Splice - Flexco Mechanical Steel Fastners
36" Superior Belt Scraper
Guarding: Tail Pulley, V Belts, Return Guards, Hopper
Sandblasted, Urethane Primed, and Urethane Painted

Lease Hours Used
