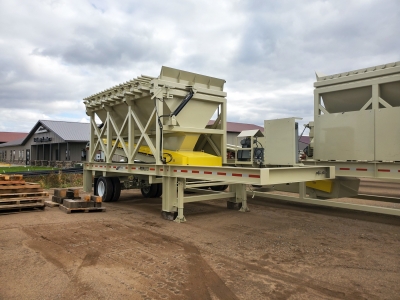

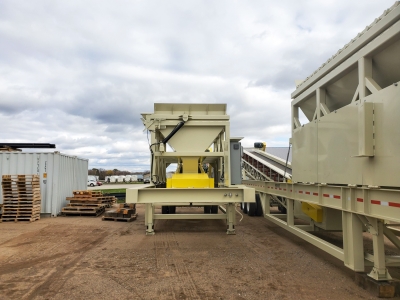

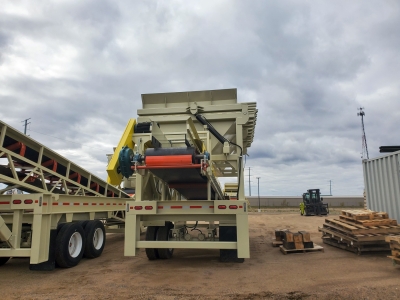

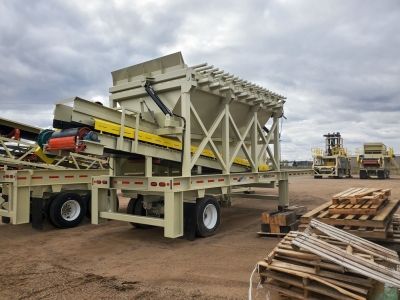

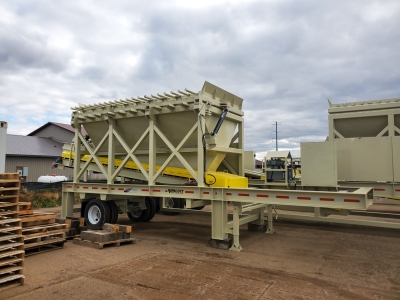

Used Straightline 8' x 16' Portable Bin Feeder Unit #1147

SN: #SN 8x160421705

On Lease

ON LEASE

Chassis

  • Frame: Wide flange main beams
  • Axle: Single with (4) 11-22.5 radial tires / 10 bolt hub piloted
  • Landing jacks: (2) manual
  • Cribbing legs
  • Fifth wheel hitch
  • Air brakes, light package and mud flaps



Hopper

  • 8’ x 16’ hopper
  • Fabricated out of 1/4” plate
  • Hydraulic Powered Self-Relieving Grizzly Top – 3” bars with 6” spacings
  • Electric hydraulic power unit – with Lodar wireless remote
  • Breaker beam inside of hopper
  • Manually operated flow control gate, ground level adjustment
  • Fold down curtains – 3/8” plate steel
  • Canoe rubber flashing
  • Electrical switchgear with 20hp VFD



Feed Conveyor (removable under hopper)

  • 36” x 20’ feed conveyor
  • C8 channel frame
  • 12” x 38” head pulley, CF with 3/8” HB lagging
  • 12” x 38” tail pulley, wing style
  • CEMA C 5” Flat impact rollers – 8” centers under hopper
  • Motor: 20HP 1800RPM 230/460/3ph Toshiba
  • Gear reducer: size TA5 40:1
  • Take-ups: SLI screw type
  • Bearings: Dodge
  • Conveyor belting: 36” 3ply ¼” x 1/16” cover
  • Belt Scraper: By Superior
  • (1) Coat urethane primer (1) Coat urethane finished
