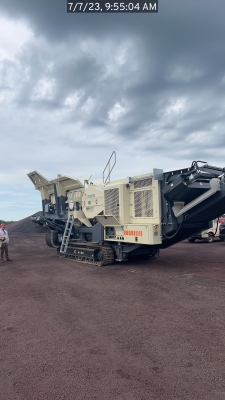

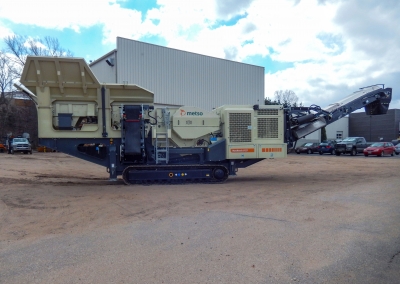

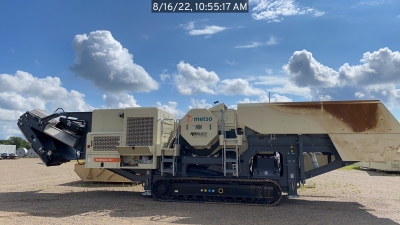

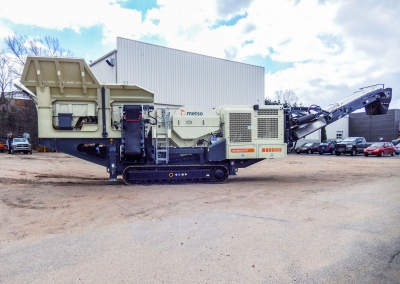

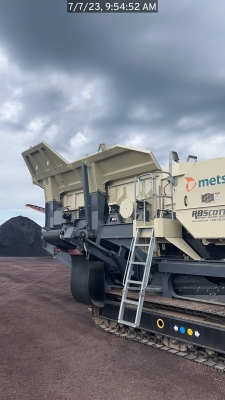

Metso J127 Nordtrack Jaw Crusher Unit # 1204

SN: #1900544

On Lease


Feeding Unit

Feeder- pan feeder & scalper

  • Two-stage feeder with screen mesh below the grizzly

Grizzly- 75 mm (3”)

Screen deck media- steel cloth 35mm (1 3/8”)

  • Screen mesh under the grizzly section for by-passing material

Feed hopper- standard

Side conveyor- included

  • Belt conveyor for transporting the fine material to the side of the Nordtrack

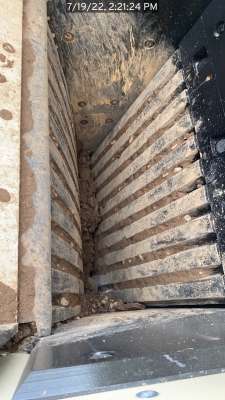

Crusher- primary jaw crusher with bolted and pinned construction

Jaw profile- quarry

  • Designed to crush efficiently blasted rock with less fines content
  • The flat teeth provide with longer lifetime when crushing abrasive materials

Setting adjustment- hydraulic setting adjustment

Belt protection plate- included

  • Below the crusher plate is mounted to guide the crushed recycling material together with steel parts onto the main conveyor and to protect the belt conveyor


 Power Unit

Diesel engine- CAT C9.3B

Emission class- Tier 4F

Oil selection- standard (up to 40C/104F)

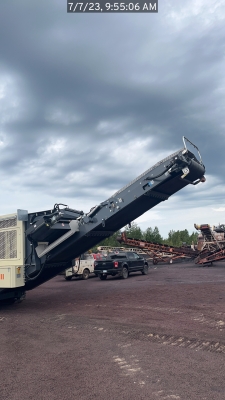

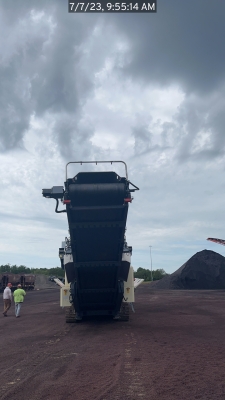

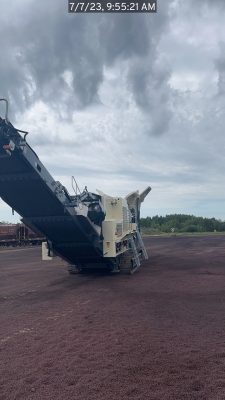

Main Conveyor

Dust encapsulation- included

Magnetic separator- included

  • Twin pole magnet separator to remove metallic particles from the main conveyor


Optional Equipment

Dust suppression, water spray- included

  • For binding dust particles under the crusher and at the discharge end of main conveyor
  • Includes water pump

Working lights- included

Remote control for tracking- included

  • Enables the remote control of following function: moving forward/reverse (tracks)
  • Can also be paired with cord



Color- Metso beige

Safety labels- ANSI
