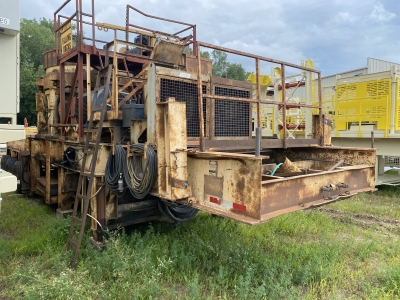

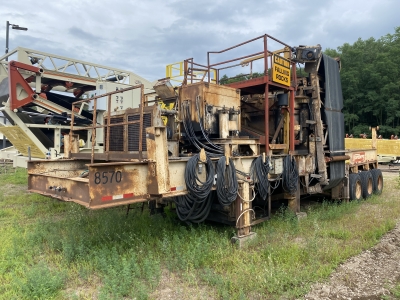

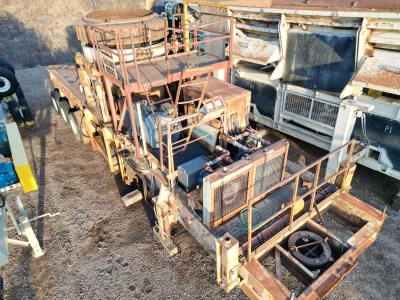

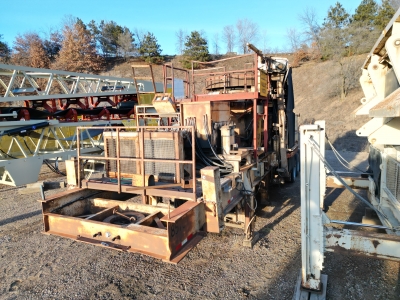

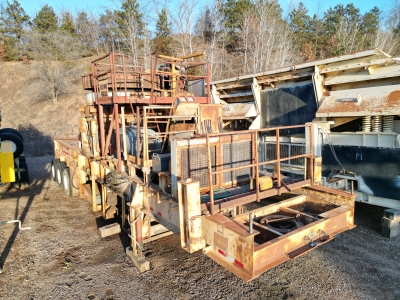

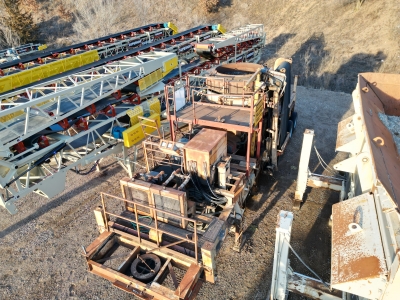

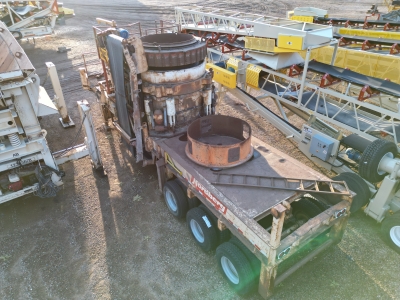

Used 1987 Nordberg Portable Omnicone Unit #1201

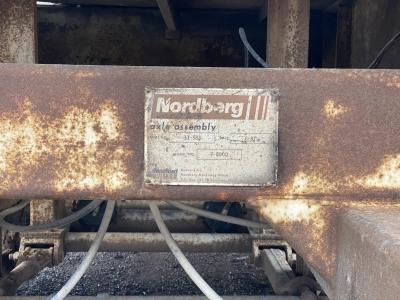

SN: #SN P-6000-M543

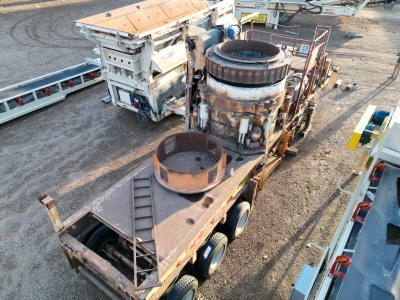

Nordberg Omnicone 1560

  • Dual directional hydraulic adjustment
  • Hydraulic clearing of crushing chamber
  • Automatic tramp iron release
  • Bronze bearings
  • Package lubrication system (consisting of independent pump, oil pressure switch, oil temperature switch, oil tank with strainer, oil level gauge, two thermometers, oil heater with thermostat with contractor, air radiator type oil cooler, and oil filter, mounted on a common base)
  • Crusher sheave and motor sheave
  • 300HP, 1200RPM motors



New Control Panel

  • Enclosure w/support frame
  • Main breaker
  • Disconnect switch w/door handle
  • Circuit breakers and starters for
    • Lube pump
    • Hydraulic pump
    • Oil cooler
    • Discharge conveyor
  • (1) Softstart to control one 150hp crusher motor and (1) starter for second 150hp motor
  • Panel wired using existing cable on the plant

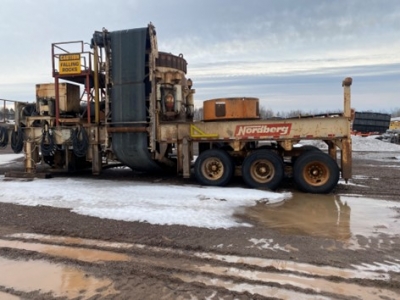

Heavy Duty Chassis

  • Triple axle with walking beam suspension
  • Budd type wheels, twelve 11:00 x 2.5 load range “H” tires
  • Air brakes, for semi-trailer towing
  • Under crusher hopper
  • Travel lights
  • Mud flaps
