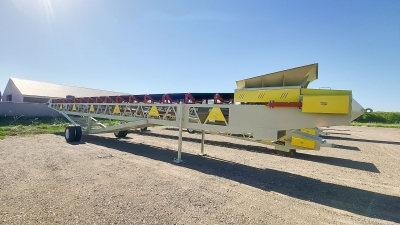

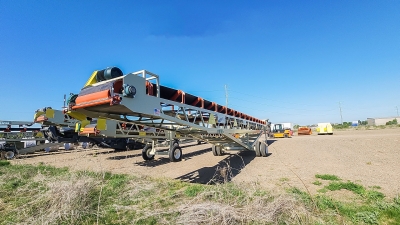

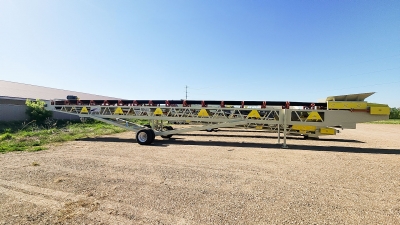

Straightline 42x70 Portable Radial Stacking Conveyor Unit #1528

SN: #42701224900

Equipment As Follows:

• Frame: 4x4x5/16" Main Angle Chords + 2x2x1/4" Angle Lattice
• 30" Deep Truss - Idlers in Truss or Idlers on Top - RB Decides

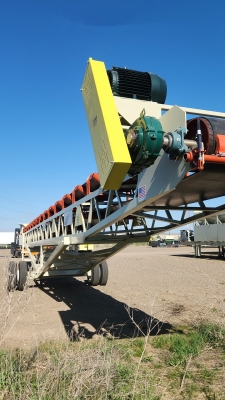

• Motor: 50HP 460/230/3PH

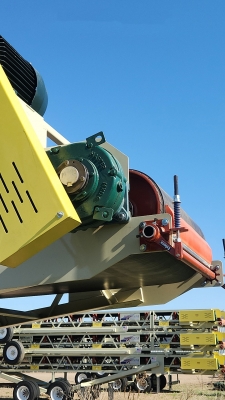

• Reducer: Master PT Size 7 with Backstop
• Bearings: Dodge SCM
• Cema C Idlers & Returns
• Take Ups: Wide Slot
• Head Pulley: 16" x 38" Drum with 3/8" HB Lag

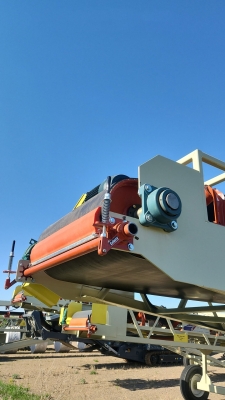

• Tail Pulley: 16" x 38" Wing Style

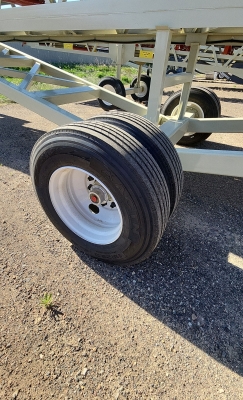

• Axle: 8 Bolt Hub with 11Rx22.0 Tires + Swivel Plates for Radial Travel

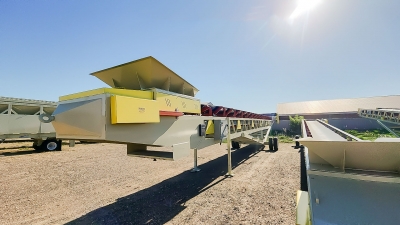

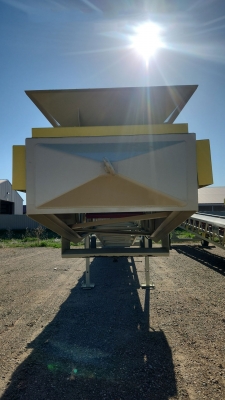

• 5' Hopper with Flared Receiving Hopper
• 5th Wheel Plate with Pivot Plate

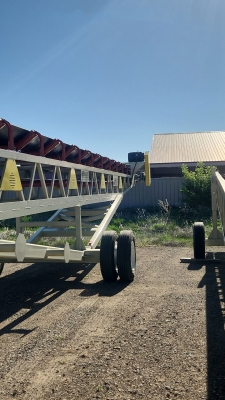

• Stacker Style Undercarriage - Adjustable Height
• 400FPM/1200TPH

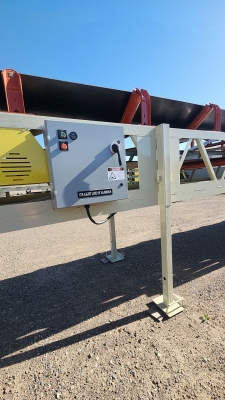

• Includes Switchgear + Cord
• Manual Raise - No Radial Travel

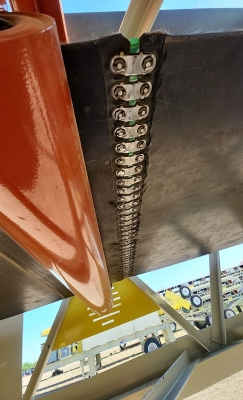

• 36" 3 PLY 330 3/16 x 1/16 Belt
• Superior Belt Cleaner
• Guarding: Tail Pulley, V Belts, Return Guards, Hopper
• Sandblasted, Urethane Primed, and Urethane Painted

On-Site Start-up, Training and Warranty Commissioning

• RB Scott will supply a field service technician to complete startup
